All stock codes associated to this product
SEDG16PSWC13C1616A, SEDG-16PSW-C13C16-16A, 9350784005465

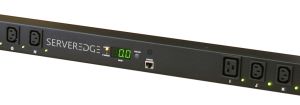

SEDG-16PSW-C13C16-16A 16-Port Switched PDU (14) IEC C13 & (2) IEC C19 Outputs & (1) IEC C20 Input, 16A, 240V
Serveredge Switched rack mountable PDU (SEDG-16PSW-C13C16-16A) provides 14 X IEC 13 outputs & 2 X IEC19 outputs to power all your rack equipments with a 16A IEC 20 input. The PDU is vertical moutable 0RU and save valuable rack space. The Serveredge switched PDU enables the user to control and monitor the power remotely. The web based interface allows the user switch on/off functionality for power cycling a connected equipment remotely on each individual ports. A true digital RMS meter allows real time current monitoring of the connected equipments with data logging and reporting. It allows for a user defined alarm threshold for overloads and warnings.
Product Features
- Remote power management (Power cycling/ Monitoring) of the connected equipments
- 14 X IEC 13, 2 X IEC C19 Output & 3m power Cord IEC C20 Input , multiple ports allow connection to many equipments
- Full-featured network management interface via Http, Https, SNMP, DHCP, UDP protocols
- Allows user with Individual outlet control for remote switch on/off (power cycling)
- Capabale of Total Remote Power Monitoring by Meter, Web, SNMP, Free Bundle Software via the True RMS current meter
- Supports user defined alarm threshold for overloads and warning and raise warnin by sending emails and trap information in case of threshold breach.
- Email, Trap, Audible Alarm can be set up by user as alarms
Package Contents
1 X SEDG-16PSW-C13C16-16A
1 X Free Bundled Software
1 X Rack Mount Kit
1 X User Manual
Technical Specifications
| Input/Output |
|
| Output |
14 X IEC 320 C13 & 2 X IEC 320 C19 |
| Input |
1 X IEC 320 C20 with a 3m power cord, 16A |
| Network |
RJ45 |
| Current Meter |
3 Digits Seven Segments for True RMS Meter,Range: 0A ~ 20 A, Resolution: 0.1A, Precision: +/-2%+/-0.1AMP |
| Connectivity Status |
|
| DHCP Indication |
Green LED Light |
| SSL Indication |
Yellow LED Light |
| Output Status |
Green LED Light/port |
| |
|
| Power Ratings |
|
| Voltage |
200~240 V |
| Frequency |
50-60 Hz |
| Current |
16A Maximum |
| |
|
| Environmental |
|
| Temperature |
0 ~ 40 Degree Celsius |
| Humidity |
0% ~ 90% |
| |
|
| Physical Dimensions |
|
| Size |
56 x 1245 x 44 mm |
| Weight |
4 kg |
Warranty: 2 Years
Regulatory Approvals
CE, EN 55022 Class A, EN 55024,EN 61000-3-2,EN 61000-3-3
C-Tick AS/NZS CISPR 22: 2006
FCC Part 15 Class A, ICES-003
