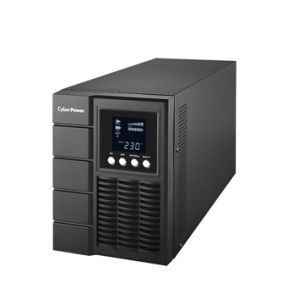

CyberPower OLS1000E Online Series - 1000VA, RS232, USB - 800W

OLS1000E

Overview

The Online S Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sine Ware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sine Wave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.

Features & Benefits:

• Pure Sinewave Output
• Online (Double Conversion) UPS Topology
• Tower Form Factor
• EMI, RFI, Surge and Lightning Spike Protection
• Phone/Fax/Modem/DSL/Network Protection
• Auto-Restart/Auto-Charge
• Emergency Power Off (EPO) Port
• Multifunction LCD Readout
• USB & Serial Connectivity Port
• Smart Fan Speed Control By Load Level
• Economy Mode setting
• Smart Battery Management(SBM)
• Generator Mode setting
• SNMP/HTTP Remote Management Capability (Optional)
• PowerPanel® Business Edition Software
• Equipment Protection Policy up to 100,000 Euros

Specifications

Model	OLS1000E
Capacity(VA/W)	1000VA / 900W
Typology	Online (Double Conversion)
Energy-Saving Technology	Yes, ECO Mode Efficiency > 95%
Input
Voltage Range	120~139Vac for 0~25% Load 140~159Vac for 0~50% Load 160~179Vac for 0~75% Load 180~280Vac for 0~100% Load
Input Type	IEC C14
Frequency Range	40~70Hz
Output
UPS Outlets (Numbers)	(4) IEC C13
On Battery Output Voltage	Pure Sine Wave at 208, 220, 230, 240 Vac (Configurable)
On Battery Output Voltage Distortion (@Nominal Battery Voltage)	?3%(Linear Load), ?5%(Non-Linear Load)
On Battery Output Frequency	50 Hz / 60 Hz (Auto-Sensing or Configurable) ± 0.5%
Rated Power Factor	0.9
Transfer Time (Typical)	0ms
Overload Protection	AC Mode: Warning only @ 110%>Load>105%, Transfer to bypass after 60sec @ 120%>Load>110%, Transfer to bypass immediately@ Load>120% Battery Mode: Warning only @ 110%>Load>105%, Shutdown after 10sec @ 120%>Load>110%, Shutdown immediately @ Load>120% Bypass Mode: Warning only @ 130%>Load>105%, Shutdown immediately @ Load>130%
Surge Protection and Filtering
Surge Protection	Yes
DSL/Phone/Fax/Modem protection	RJ11/RJ45(One In/One Out)
Short Circuit Protection	UPS Output Cut off Immediately or Circuit Breaker Protection
Physical
Dimensions(H x W x D)(mm)	225 x 151 x 394
Weight(kg)	13.1
Battery
Sealed Maintenance Free Lead Acid Battery	(3) 12V / 7AH
Configurable External Battery Pack (Max.)	3
Typical Recharge Time	5
Runtimes
Half load-Full load (mins)	16/6
Status Indication
Indicators	Power On, Line Mode, Battery Mode, Bypass Mode, ECO Mode,C/F Mode, Fault, Replace Battery
Audible Alarms	Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery
Communication
Power Management Software	PowerPanel® Business Edition
Management
Self-Test	Yes
Auto-Charge/Auto-Restart	Yes
Auto-Overload Recovery	Yes
Cold Start(DC Start)	Yes
Connectivity Ports	(1) Serial Port (RS232), (1) USB Port, (1) EPO/ROO
SNMP/HTTP Capable	Optional
