All stock codes associated to this product
VE829, KVAVE829, KVA-VE-829, 4710423779983

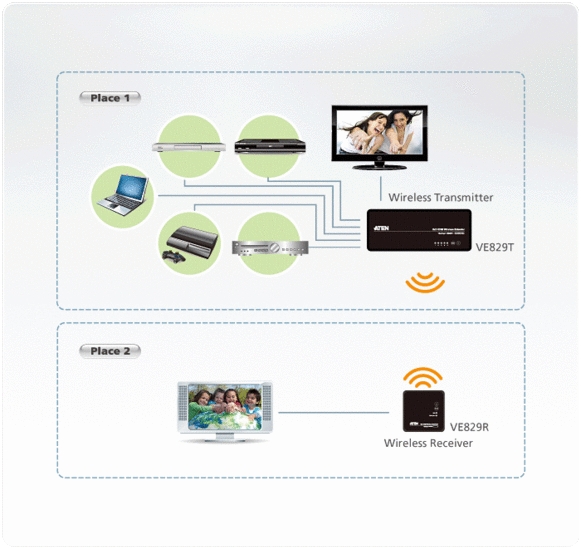

The VE829 5x2 HDMI Wireless Extender is kind to send full uncompressed HD 1080p, while connecting up to 5 source devices and allowing users to switch and independently select any source to display on two HDTVs. Its wireless matrix feature is the biggest breakthrough in Audio / Video solutions to date. This means you can watch cable TV in one location (transmitter side) and, at the same time, independently select a Blu-ray movie to watch in another location (receiver side). The VE829 is capable of streaming Full HD 1080p with support for 3D content and digital audio up to 30m* away, within the home or any desired setup.

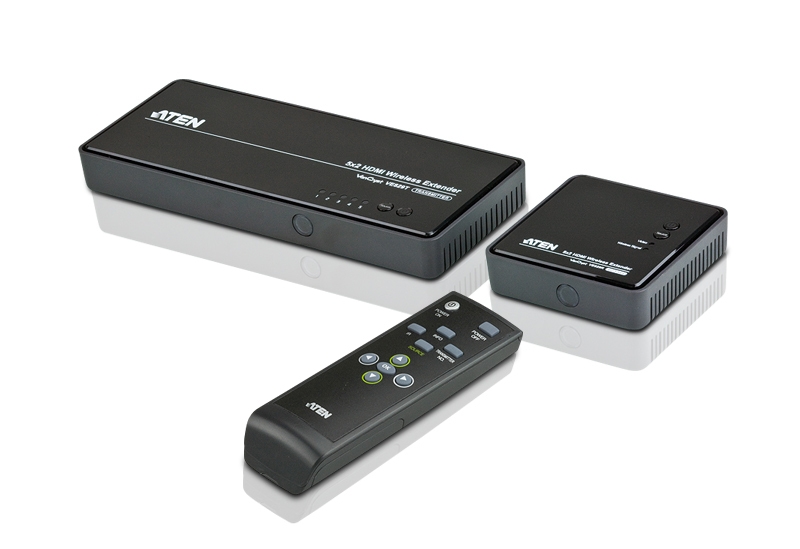

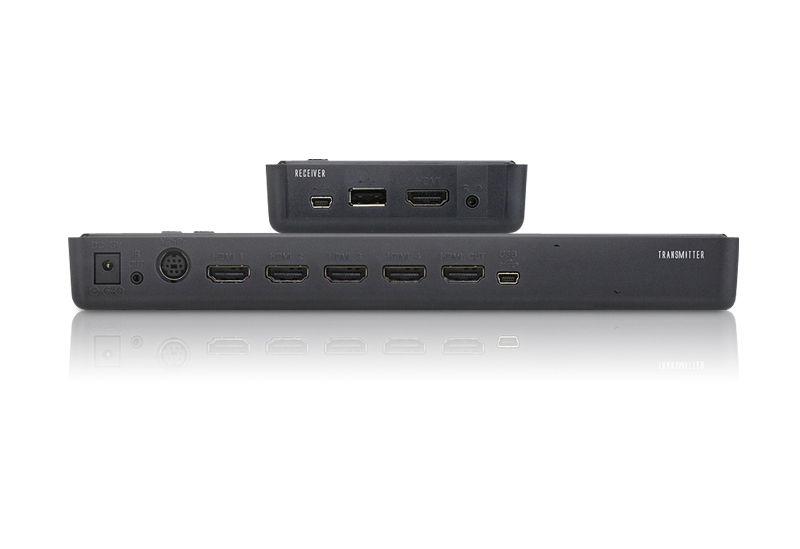

The solution consists of a Wireless Transmitter and a Wireless Receiver with connections for the HDMI and Component, along with a loop through (local port) for advanced two-HDTV setups. It also features USB HID connectivity for adding a computer / laptop to the installment, giving you wireless control from the VE829R. Infrared (IR) pass-through enables wireless control of your source devices and helps consolidate your HD A/V electronics, such as a DVDs / Blu-ray players, DVRs / Cable boxes, Game consoles and computers allowing you to design your own custom entertainment space.
* Distance, quality and signal may vary depending on the environment; solid structures, such as steel, concrete and brick may result to shorter distance coverage or complete loss of signal.
Features:
- Wireless transmission of full uncompressed HD videos up to 30m* for two HDTVs
- Allows you to switch and independently select any of 5 sources (4 x HDMI connectors, 1 x component connector) between 2 HDTVs
- Supports full uncompressed HD, 1080P, 3D content and 5.1 channel digital audio
- Superior video quality 480P, 720P, 1080i, 1080P
- USB HID ports on Transmitter and Receiver units enable wireless keyboard connectivity to control attached computers/laptops
- Based on WHDI technology Low latency < 1 ms
- HDMI (3D), HDCP compatible
- No software or driver installation needed
Function |
VE829T |
VE829R |
Connectors |
Input |
HDMI In |
4 x HDMI type A Female (Black) |
N/A |
Component in |
1x S Video Female (black) |
N/A |
USB input |
N/A |
1x USB type A (USB HID for Keyboard/mouse) (Black) |
IR Input port |
N/A |
1x 2.5 mm jack (Black) |
Output |
HDMI OUT |
1 x HDMI type A Female (Black) |
1 x HDMI type A Female (Black) |
IR out |
1x 2.5mm jack (Black) |
N/A |
USB out |
1x Mini USB port (USB HID + service port) (black) |
N/A |
Unit to Unit |
Wireless 5Ghz |
Wireless 5Ghz |
Power |
1x DC Jack |
1 x DC Jack (Mini USB) |
Switches |
Power |
1 x pushbutton |
1 x pushbutton |
Source |
1 x pushbutton |
1 x pushbutton |
LEDs |
Source |
5 (Green) |
N/A |
Video Source |
N/A |
1 (Green) |
Wireless Status |
N/A |
1 (Green) |
Resolution |
HDMI input |
480p, 720p, 1080i and 1080p |
Component input |
480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
Audio |
5.1 channel digital audio |
Transmission Distance |
Up to 30m |
Power Consumption |
DC5V, 9.5 W |
DC5V, 6.7W (mini USB) |
Environment |
Operating Temp. |
040C |
Storage Temp. |
-2060C |
Humidity |
080% RH, Non-condensing |
Physical Properties |
Housing |
Plastic |
Weight |
280 g |
130 g |
Dimensions (L x W x H) |
23.40 x 9.65 x 3.25 cm |
9.50 x 9.50 x 3.55 cm |
