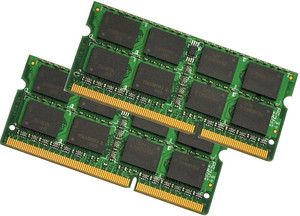

Kingston 16GB (2 x 8GB) PC3-10600 1333MHz DDR3 SODIMM RAM - 9-9-9 - ValueRAM Series

IMG 1 of 1
No Longer Available
Part Number:
231943
(?) Brand:
Kingston Web Site
Manuf No:
KVR13S9K2/16
Shipping Weight:
0.35 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
Need assistance in selecting the correct RAM for your system?
Please use our Memory Configurators to ensure compatibility
All stock codes associated to this product
KVR13S9K2/16, 740617209815
KVR13S9K2/16

  • 16GB (8GB 2Rx8 1G x 64-Bit x 2 pcs.)
  • PC3-10600 CL9 204-Pin SODIMM Kit

DESCRIPTION

ValueRAM's KVR13S9K2/16 is a kit of two 1G x 64-bit (8GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM), 2Rx8 memory modules, based on sixteen 512M x 8-bit DDR3-1333 FBGA components per module. Total kit capacity is 16GB. The SPDs are programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. Each 204-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

SPECIFICATIONS

CL(IDD) 9 Cycles
Row Cycle Time (tRCmin) 49.5ns (min.)
Refresh to Active/Refresh
Command Time (tRFCmin)
 260ns (min.)
Tow Active Time (TRASmin) 36ns (min.)
Maximum Operating Power 2.460 W* (per module)
UL Rating 94 V - 0
Operating Temperature 0 to 85 Degrees Celcius
Storage Temperature -55 to 100 Degrees Celcius
*Power will vary depending on the SDRAM used.

FEATURES

  • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ = 1.5V (1.425V ~ 1.575V)
  • 667MHz fCK for 1333Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • Programmable CAS Write Latency(CWL) = 7 (DDR3-1333)
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
  • Asynchronous Reset

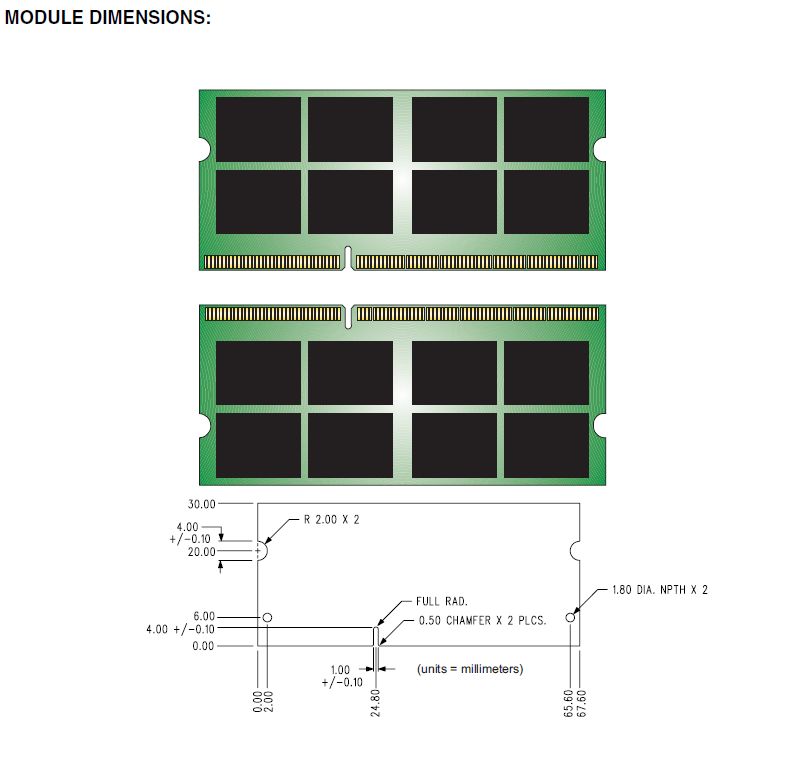

  • PCB: Height 1.18” (30mm), double sided component

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Kingston) web site.
