NVIDIA CUDA Architecture
Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows
Hyper-Q
Slashes CPU idle time by allowing multiple CPU cores to simultaneously utilize a single Kepler GPU, dramatically advancing programmability and efficiency.6
NVIDIA SMX
Delivers more processing performance and efficiency through a new, innovative streaming multiprocessor design that allows a greater percentage of space to be applied to processing cores versus control logic
PCI Express 3.0 Compliance
Supports data transfer rates up to 8 GT/sec per lane for an aggregate bandwidth of 32 GB/sec bi-directional (16 GB/sec in each direction).6
Ultra-Quiet Design
Silent cooling design enables lower acoustics for an ultra-quiet desktop environment.
Large Frame Buffers with Ultra-Fast Bandwidth
Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets
NVIDIA Parallel DataCache
Supports a true cache hierarchy combined with on-chip shared memory. L1 and L2 caches drive exceptional throughput, accelerating features such as real-time ray tracing, physics, and texture filtering.
Bindless Textures
Dramatically increases the number of unique textures available to shaders at run-time, enabling significantly more materials and richer texture detail in scenes
Dynamic Parallelism
Simplifies GPU programming by allowing programmers to easily accelerate all parallel nested loops resulting in a GPU dynamically spawning new threads on its own without going back to the CPU.
H.264 encoder
Dedicated H.264 encode engine that's independent of 3D/compute pipeline and delivers real-time performance for transcoding, video editing, and other encoding applications
PCI Express 2.0 Compliance
Supports data transfer rates up to 5 GT/sec per lane for an aggregate bandwidth of 16 GB/sec bi-directional (8 GB/sec in each direction)
NVIDIA Scalable Geometry Engine
Dramatically improves geometry performance across a broad range of CAD, DCC, and medical applications. This gives you the freedom to work interactively with models and scenes that are an order of magnitude more complex than ever before.
Unified Driver Architecture (UDA)
Guarantees forward and backward compatibility with software drivers, simplifying upgrading to a new Quadro solution whenever you're ready
Quadro Boost
Maximum application performance through automatic adjustment of the GPU clock to take maximum advantage of the power and thermal headroom of the card in real-time.
IMAGE QUALITY
NVIDIA FXAA and TXAA
Reduces visible aliasing and delivers higher image qualitywithout the performance hitby harnessing the power of the GPU's CUDA cores and new film-style antialiasing techniques.
GPU Tessellation with Shader Model 5.0
Quadro tessellation engines automatically generate finely detailed geometry for cinematic quality environments and scenes, without sacrificing performance.
16K Texture and Render Processing
Provides the ability to texture from and render to 16K x 16K surfaces. This is beneficial for applications that demand the highest resolution and quality image processing.
DISPLAY FEATURES
NVIDIA Quadro Mosaic Technology
Enables transparent scaling of the desktop and applications across up to 16 displays from four GPUs through a single workstation while delivering full performance and image quality.
Multi-Display Support
The all-new display engine in the NVIDIA Kepler GPU drives up to four displays simultaneously, whether theyre directly connected to the board or connected using a single cable using DisplayPort 1.2s new multi-streaming capabilities. With support for the next-generation DisplayPort 1.2 standard, each DisplayPort connector is also capable of driving ultra-high resolutions like 3840x2160 @ 60 Hz with 30-bit color. The flexible display connectivity of the Quadro family makes it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment.
NVIDIA nView Advanced Desktop Software
Delivers maximum flexibility for single large-display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.
DisplayPort 1.2 Support (with Audio)
Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning, and ultra-high-resolution panels (up to 3840 x 2160 @ 60 Hz ). This allows maximum range, resolution, refresh rate, and color depth designed to support the latest display technologies.
Deep Color Processing and Display
Preserve color detail and precision throughout the processing and display pipeline for smooth gradients transitions, even on high dynamic range imagery. Each color component can be processed at up to 32-bit floating point precision and displayed at up to 12-bit precision with supported DisplayPort 1.2 or HDMI 1.4 displays.
Quadro Digital Video Pipeline
Industry's only GPU-accelerated solution for real-time acquisition, processing, and delivery of high-resolution SDI video across traditional and now 3D video broadcast, environments. It supports uncompressed 8-, 10-, and 12-bit SDI via optional Quadro SDI Capture and Quadro SDI Output cards.
NVIDIA 3D Vision and 3D Vision Pro
Advanced active-shutter glasses that deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (3D Vision) or RF (3D Vision Pro) technologies allow a range of immersive environments from your desktop workstation to collaborative work spaces. 3D Vision and 3D Vision Pro are sold separately.
OpenGL Quad Buffered Stereo Support
Provides a smooth and immersive 3D stereo experience for professional applications.
Professional 3D Stereo Synchronization
Enables robust control of the stereo effect through a dedicated three-pin, mini-din connection to directly synchronize 3D stereo hardware to the Quadro graphics card.
Software Support
NVIDIA CUDA Parallel Computing Architecture
Quadro solutions leverage general-purpose GPU computing using standard programming languages like C/C++ and Fortran, as well as emerging APIs such asOpenCLandDirect Compute. This broad adoption of CUDA accelerates techniques like ray tracing, video and image processing, and computation fluid dynamics.
NVIDIA GPUDirect for Video
Allows third-party hardware to communicate directly with NVIDIA GPUs. Taking advantage of this new API addresses the historical issues of introducing too much delay or latency because devices are fully synchronized and the CPU doesn't waste cycles copying data between device drivers.
NVIDIA Enterprise-Management Tools
Exhaustive tools for maximizing your system uptime by enabling seamless wide-scale deployment. This allows remote query and control of graphics and display settings for systems spread across installations.
Support for Multiple Operating Systems on a Single Machine
With a dedicated GPU per user and virtualization software, users can experience the full GPU acceleration of a standard workstation while improving resource management and utilization.
MULTI-GPU TECHNOLOGY
NVIDIA Maximus™ Technology
NVIDIA Maximus-powered workstations combine the visualization and interactive design capability of NVIDIA Quadro GPUs and the high-performance computing power of NVIDIA Tesla® GPUs into a single workstation.

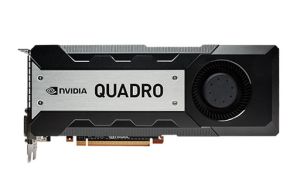

Specifications:
| BOARD FEATURES |
| Memory Size |
12GB GDDR5 |
| Memory Interface |
384-bit |
| Memory Bandwidth |
288 GBps |
| NVIDIA CUDA Parallel Processor Cores |
2880 |
| Max Power Consumption |
225W |
| Power Connector |
2x6-pin |
| Number of slots |
2 |
| # Simultaneous Displays2 |
4 |
| Display Connectors |
DVI-I
DVI-D
DP
DP
3pin Stereo1 |
| ECC (Error Correcting Code) |
 3 |
| OpenGL |
4.3 |
| Shader Model |
5.0 |
| DirectX |
11 |
| NVIDIA 3D VisionPro |
|
| NVIDIA Mosaic Technology |
|
| Multi-Display Synchronization |
Quadro Sync |
| NVIDIA SLI Support5 |
|
| NVIDIA nView Display Management Technology |
|
| High-Performance Video I/O6 |
|
