Keeping students involved and engaged is a central practice in the BenQ Classroom IQ concept-and PointWrite™ is a great way to let multiple students contribute at once. Teachers can get up to 4 students to come up to the board and collaborate simutaneously with PointWrite™ pens. Quizzes, board work, presentations and games will never be the same! PointWrite™ is effortless to set up and cost efficient, making it flexible, affordable option of multi-pens.

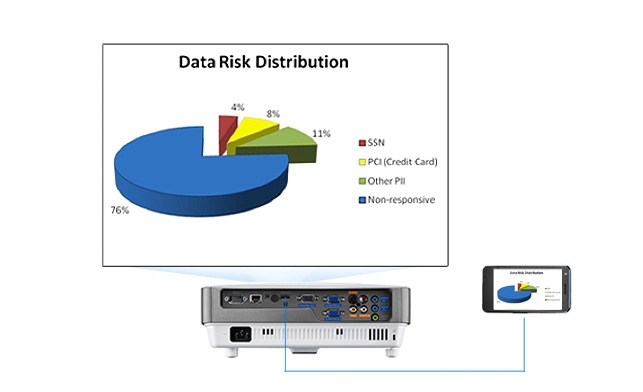

Thoughtful Design MHL Connectivity
With MHL connectivity, you can share your content from your Android devices on big screen. MW824ST features MHL function and allows you to mirror the data, photo and other contents from your android devices to big screen, Also, your device is being charged while you're using it, you don't have to worry about the power while presenting.
Blu-ray Full HD 3D Supported
BenQ MW824ST is built with latest DLP® technology to support 3D functionality, allowing schools to bring an immersive learning experience to their students with a simple preparation of 3D glasses and 3D content from your blu-ray player.
Hassle-Free Projector Maintenance Upper Lamp Door for Easy Lamp Access
The upper lamp door is designed for it managers to replace the projector lamp safely and quickly. should the projector lamp go out in the middle of the class, it can be replaced without delaying the class.
LAN Control with Crestron and PJ-Link
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The MW824ST offers seamless support for the Crestron and PJ-Link LAN Control system.
Quick Installation
By pressing Quick Intall key on the remote control, installer can quickly acces to installation related functions in the OSD menu.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specifications
| Projection System |
DLP |
| Native Resolution |
W X GA (1280 X 800) |
| Brightness* (ANSI Lumens) |
3200 ANSI Lumens |
| Contrast Ratio |
13000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F= 2.8, f = 7.51mm |
| Aspect Ratio |
Native 16:10 (5 aspect ratio selectable) |
| Throw Ratio |
0.52 (95" @ 1m) |
| Image Size (Diagonal) |
Optimization 72"-152", Maximum 300" |
| Zoom Ratio |
Fixed |
| Lamp Type |
210W |
| Lamp Mode (Normal/Economic/SmartEco/LampSave/LumenCare)* |
4000/5000/6500/10000/4000(with 2100 of constant brightness) hours |
| Keystone Adjustment |
1D, Vertical 30 degrees |
| Projection Offset |
110% 5% |
| Resolution Support |
VGA (640 x 480) to UXGA (1600 x 1200) |
| Horizontal Frequency |
15-102KHz |
| Vertical Scan Rate |
23-120Hz |
| Interface |
Computer in (D-sub 15pin) x 2 (Share with component)
Monitor out (D-sub 15pin) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
HDMI x 1 (Share with MHL 1.2)
Audio in (Mini Jack) x 2
Audio out (Mini Jack) x 1
Audio L/R in (RCA) x 1
Speaker x 1 (10W)
USB (Type Mini B) x 1
RS232 (DB-9pin) x 1
LAN (RJ45) x 1 |
| Dimensions (W x H x D mm) |
287.3 x 114.4 x 232.6mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| 3D Support and Compatibility |
Frame Sequential: Up to 720p
Frame Packing: Up to 1080p
Side by Side: Up to 1080i/p
Top Bottom: Up to 1080p |
| Weight |
2.6kg (5.73bs) |
| Audible Noise (Normal/Economic Mode) |
32/28 dBA (Normal/Economic mode) |
| Power Supply |
AC100 to 240 V, 50 to 60 Hz |
| Power Consumption |
Normal 270W, Eco 220W, Standby <0.5W |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/(3D)/User 1/User 2 |
| Accessories (Standard) |
Lens Cover
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
PointWrite
Spare Lamp Kit
Ceilling Mount
Wall Mount
Carry bag
3D Glasses |
