KVR16LR11S4/8I, 740617228182
KVR16LR11S4/8
8GB 1Rx4 1G x 72-Bit PC3L-12800
CL11 Registered w/Parity 240-Pin DIMM
DESCRIPTION

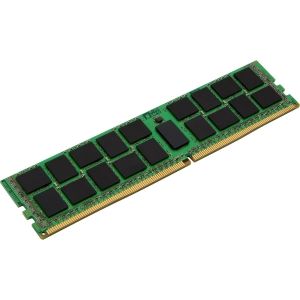

This document describes ValueRAM's 1G x 72-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), low voltage, registered w/parity, 1Rx4 ECC, memory module, based on eightenn 1G x 4-bit FBGA components. The SPD is pro-grammed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V and 1.5V. This 240-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
- JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply
- VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
- 800MHz fCK for 1600Mb/sec/pin
- 8 independent internal bank
- Programmable CAS Latency: 11, 10, 9, 8, 7, 6
- Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
- 8-bit pre-fetch
- Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
- Bi-directional Differential Data Strobe
- Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm 1%)
- On Die Termination using ODT pin
- On-DIMM thermal sensor (Grade B)
- Average Refresh Period 7.8us at lower than TCASE 85C, 3.9us at 85C < TCASE < 95C
- Asynchronous Reset
- PCB : Height 1.180 (30.00mm), double sided component
SPECIFICATIONS
- CL(IDD) 11 cycles
- Row Cycle Time (tRCmin) 48.125ns (min.)
- Refresh to Active/Refresh 260ns (min.)
- Command Time (tRFCmin)
- Row Active Time (tRASmin) 35ns (min.)
- Maximum Operating Power (1.35V) = 4.311 W* (1.50V) = 5.196 W*
- UL Rating 94 V - 0
- Operating Temperature 0oC to 85oC
- Storage Temperature -55oC to +100oC
- Power will vary depending on the SDRAM and Register/PLL used.
