| TYPE |
Type |
Digital Single Lens Mirrorless camera |
| Recording media |
SD memory card, SDHC memory card, SDXC memory card (Compatible with UHS-I standard SDHC/SDXC memory cards) |
| Image sensor size |
17.3 x 13.0 mm (in 4:3 aspect ratio) |
| Lens Mount |
Micro Four Thirds mount |

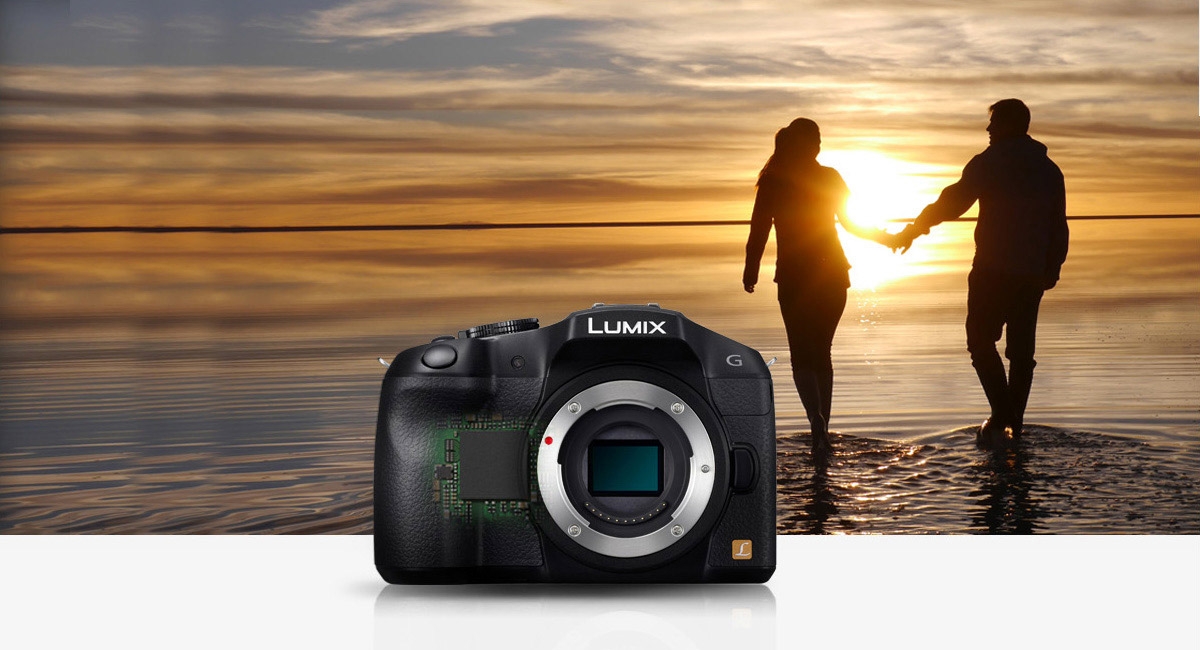

| IMAGE SENSOR |
Type |
Live MOS Sensor |
| Total pixels |
18.31 Megapixels |
| Camera effective pixels |
16.05 Megapixels |
| Colour filter |
Primary colour filter |
| Dust reduction system |
Supersonic wave filter |
| RECORDING SYSTEM |
Recording file format |
Still Image: JPEG(DCF, Exif 2.3), RAW, |
| Recording file format |
MPO (When attaching 3D lens in Micro Four Thirds standard) |
| Recording file format |
Motion Image: AVCHD (Audio format: Dolby Digital 2ch) |
| Recording file format |
/ MP4 (Audio format AAC 2ch) |
| Aspect ratio |
4:3, 3:2, 16:9, 1:1 |
| Image quality |
RAW, RAW+Fine, RAW+Standard, Fine, Standard, |
| Image quality |
MPO+Fine, MPO+Standard (When attaching 3D lens in Micro Four Thirds System standard) |
| Colour Space |
sRGB, Adobe RGB |
| File size(Pixels) |
Still Image |
[4:3] 4608x3456(L) / 3264x2448(M) / 2336x1752(S) / 1824x1368(When attaching 3D lens in Micro Four Third System standard) |
| Still Image |
[3:2] 4608x3072(L) / 3264x2176(M) / 2336x1560(S) / 1824x1216(When attaching 3D lens in Micro Four Third System standard) |
| Still Image |
[16:9] 4608x2592(L) / 3264x1840(M) / 1920x1080(S) / 1824x1024(When attaching 3D lens in Micro Four Third System standard) |
| Still Image |
[1:1] 3456x3456(L) / 2448x2448(M) / 1744x1744(S) / 1712x1712(When attaching 3D lens in Micro Four Third System standard) |
| Motion Image (MP4*1 : NTSC area) |
[Full HD]19201080, 60fps (sensor output is 60p, 28Mbps) |
| Motion Image (MP4*1 : NTSC area) |
[Full HD]1920x1080, 30fps (sensor output is 30p, 20Mbps) |
| Motion Image (MP4*1 : NTSC area) |
[HD]1280x720, 30fps (sensor output is 30p, 10Mbps) |
| Motion Image (MP4*1 : NTSC area) |
[VGA] 640x480, 30fps (sensor output is 30p, 4Mbps) |
| Motion Image (MP4*1 : PAL*2 area) |
[Full HD] 19201080, 50fps (sensor output is 50p, 28Mbps) |
| Motion Image (MP4*1 : PAL*2 area) |
[Full HD]1920x1080, 25fps (sensor output is 25p, 20Mbps) |
| Motion Image (MP4*1 : PAL*2 area) |
[HD] 1280x720, 25fps (sensor output is 25p, 10Mbps) |
| Motion Image (MP4*1 : PAL*2 area) |
[VGA] 640x480, 25fps (sensor output is 25p, 4Mbps) |
| Motion Image (AVCHD Progressive : NTSC area) |
[Full HD]19201080, 60p (sensor output is 60p, 28Mbps) |
| Motion Image (AVCHD Progressive : PAL area) |
[Full HD] 19201080, 50p (sensor output is 50p, 28Mbps) |
| Motion Image (AVCHD*1 : NTSC area) |
[Full HD] 1920x1080, 60i (sensor output is 60p, 17Mbps) |
| Motion Image (AVCHD*1 : NTSC area) |
[Full HD] 19201080, 60i (sensor output is 30p, 24Mbps) |
| Motion Image (AVCHD*1 : NTSC area) |
[Full HD] 19201080, 24p (sensor output is 24p, 24Mbps) |
| Motion Image (AVCHD*1 : NTSC area) |
[HD] 1280 x 720, 60p (sensor output is 60p, 17Mbps) |
| Motion Image (AVCHD*1 : PAL*2 area) |
[Full HD] 1920x1080, 50i (sensor output is 50p, 17Mbps) |
| Motion Image (AVCHD*1 : PAL*2 area) |
[Full HD] 1920x1080, 50i (sensor output is 25p, 24Mbps) |
| Motion Image (AVCHD*1 : PAL*2 area) |
[Full HD] 1920x1080, 24p (sensor output is 24p, 24Mbps) |
| Motion Image (AVCHD*1 : PAL*2 area) |
[HD] 1280 x 720, 50p (sensor output is 50p, 17Mbps) |
| Continuous recordable time (Motion images)*2 |
AVCHD : Approx. 140 min with H-FS014042 |
| Continuous recordable time (Motion images)*2 |
AVCHD : Approx. 150 min with H-FS45150 |
| Actual recordable time (Motion images) |
AVCHD : Approx. 70 min with H-FS014042 |
| Actual recordable time (Motion images) |
AVCHD : Approx. 75 min with H-FS45150 |
| Flicker reduction |
[1/50] / [1/60] / [1/100] / [1/120] / OFF |
| WiFi FUNCTION |
WiFi |
IEEE 802.11b/g/n, 2412MHz - 2462MHz (11ch), Wi-Fi / WPA / WPA2, Infrastructure mode |
| NFC |
ISOIEC 18092NFCIP-1NFC-F |
| VIEWFINDER |
Type |
OLED Live View Finder (1,440,000 dots) |
| Field of view |
Approx. 100% |
| Magnification |
Approx. 1.4x / 0.7x (35mm camera equivalent) with 50mm lens at infinity; -1.0 m -1 |
| Eye point |
Approx.17.5mm from eyepiece lens |
| Diopter adjustment |
-4.0~+4.0dpt |
| Eye sensor |
Yes |
| Eye sensor adjustment |
High / Low |

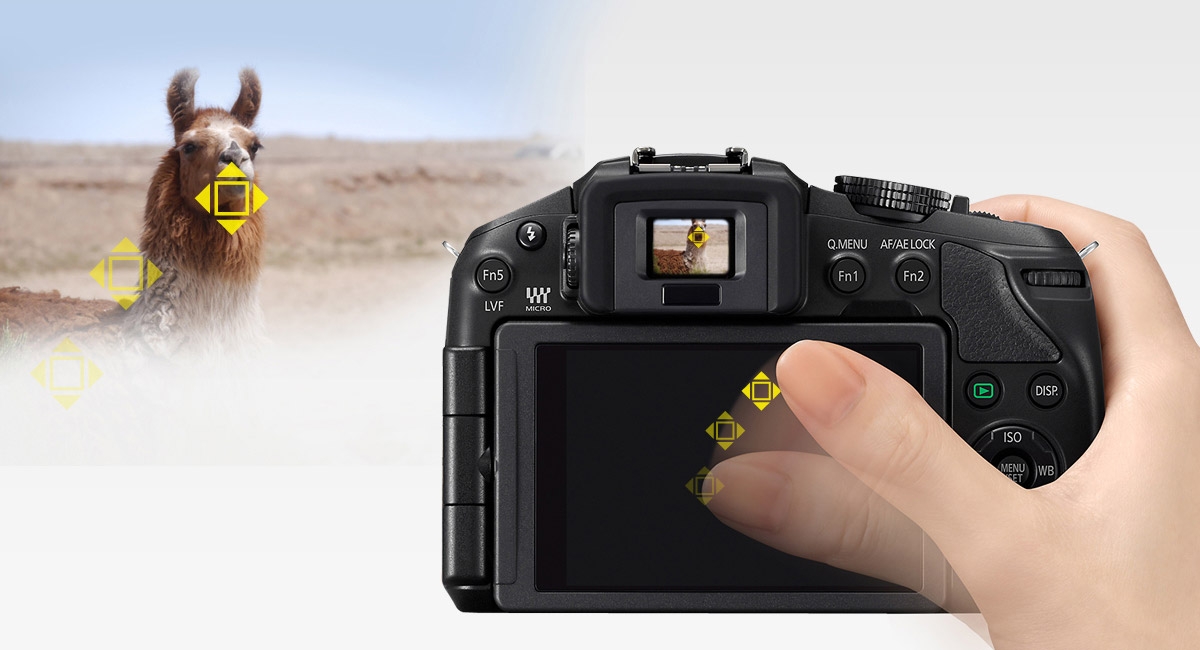

| FOCUS |
Type |
Contrast AF system |
| Focus mode |
AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF |
| AF mode |
Face detection / AF Tracking / 23-area-focusing / 1-area-focusing / Pinpoint |
| AF detective range |
EV -3 - 18 (ISO100 equivalent) |
| AF assist lamp |
YES |
| AF lock |
Set the Fn button in custom menu to AF lock |
| Others |
Quick AF, Continuous AF (during motion image recording), AF+MF, Eye Sensor AF, Touch AF/AE Function, Touch Pad AF, Touch shutter, Touch MF Assist, |
| EXPOSURE CONTROL |
Light metering system |
1728-zone multi-pattern sensing system |
| Light metering mode |
Intelligent Multiple / Center Weighted / Spot / |
| Metering range |
EV 0 - 18 (F2.0 lens, ISO100 equivalent) |
| Exposure mode |
Program AE, Aperture Priority AE, Shutter Priority AE, Manual, |
| ISO sensitivity (Standard Output Sensitivity) |
Auto / Intelligent ISO / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600(Extended) |
| ISO sensitivity (Standard Output Sensitivity) |
(Changeable to 1/3 EV step) |
| Exposure compensation |
1/3EV Step 5EV |
| AE lock |
Set the Fn button in custom menu to AE lock |
| AE bracket |
3,5,7 frame, in 1/3 or 2/3 or 1EV Step, Max.3 EV |
| WHITE BALANCE |
White balance |
Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2 / Colour temperature setting |
| White balance adjustment |
Blue/amber bias, Magenta/green bias |
| Colour temperature setting |
2500-10000K in 100K |
| White balance bracket |
3 exposures in blue/ amber axis or in magenta/ green axis |
| SHUTTER |
Type |
Focal-plane shutter |
| Shutter speed |
Still Images: Bulb (Max.120), 1/4000 ~ 60 |
| Shutter speed |
Motion image: 1/16000 ~ 1/30 (NTSC), 1/16000 ~ 1/25 (PAL) |
| Self timer |
10sec, 3 images/ 2sec / 10sec |
| SCENE GUIDE |
Still image |
Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / |
| Still image |
Vivid Sunset Glow / Glistening Water / Clear Nightscape / Cool Night Sky / Warm Glowing Nightscape / Artistic Nightscape / Glittering Illuminations / Clear Night Portrait / |
| Still image |
Soft Image of a Flower / Appetizing Food / Cute Dessert / Freeze Animal Motion / Clear Sports Shot / Monochrome |
| Video |
Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / |
| Video |
Vivid Sunset Glow / Clear Nightscape / Cool Night Sky / Warm Glowing Nightscape / Artistic Nightscape / Clear Night Portrait / Appetizing Food / Cute Dessert / |
| Video |
Freeze Animal Motion / Clear Sports Shot / Monochrome |
| BURST SHOOTING |
Burst speed |
SH : 40.0 frames/sec, H: 7.0 frames/sec(with AFS), 5.0 frames/sec(with AFC, In 1-area-focusing AF mode), M: 4.0 frames/sec (with Live View), L: 2.0 frames/sec (with Live View) |
| Number of recordable images |
9 images (when there are RAW files with the particular speed) |
| Number of recordable images |
Unlimited consecutive shooting (when there are no RAW files) |
| Number of recordable images |
(depending on memory card size, battery power, picture size, and compression) |
| BUILT-IN-FLASH |
Type |
TTL Built-in-Flash, GN10.5 equivalent (ISO 160 m), GN8.3 equivalent (ISO 100 m, Built-in Pop-up |
| Flash Mode |
Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction, |
| Flash Mode |
Slow Sync., Slow Sync./Red-eye Reduction, Forced Off |
| Synchronization speed |
Less than 1/160 second |
| Flash synchronization |
1st. Curtain Sync, 2nd Curtain Sync. |

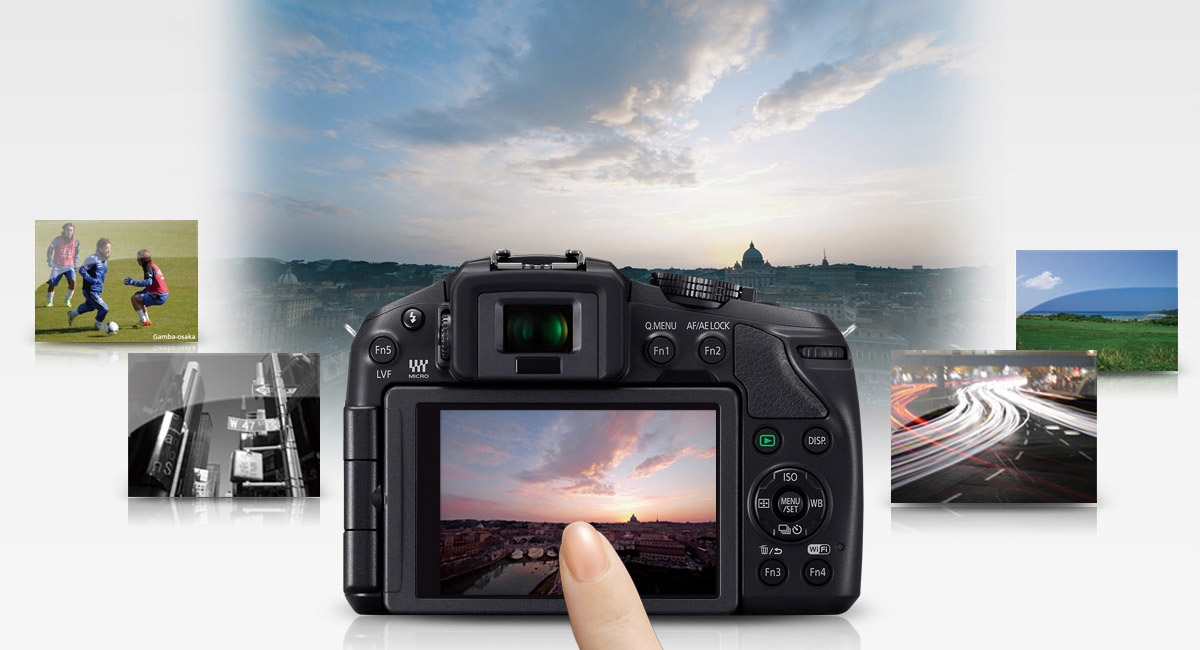

| LCD MONITOR |
Type |
TFT LCD with Touch monitor |
| Monitor size |
Free-angle 3.0inch (7.5cm)/ 3:2 Aspect / Wide-viewing angle |
| Pixels |
1036K dots |
| Filed of view |
Approx. 100% |
| Monitor adjustment |
Brightness, Contrast and Saturation, Red tint, Blue tint |
| LIVE VIEW |
Digital zoom |
2x, 4x |
| Extra Tele Conversion |
Still image: Max.2x (Aspect ratio sets at 4:3. Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.) |
| Extra Tele Conversion |
Motion image: 2.4x (FHD/60p, FHD/60i, FHD/30p, FHD/24p in NTSC / FHD/50p, FHD/50i, FHD/25p, FHD/24p in PAL), 3.6x (HD/60p, HD/30p in NTSC / HD/50p, |
| Extra Tele Conversion |
HD/25p in PAL), 4.8x (VGA/30p in NTSC / VGA/25p in PAL) |
| Other functions |
Guide Lines (3 patterns) |
| Other functions |
Real-time Histogram |
| LEVEL GAUGE |
Level Gauge |
Yes (Built-in 3 shaft accelerometer sensor) |
| DIRECTION DETECTION FUNCTION |
Direction Detection Function |
Yes |
| FUNCTION BUTTON |
Fn1, Fn2, Fn3, Fn4, Fn5, F6, F7 |
WiFi / Q.MENU / AF/AE LOCK / LVF/Monitor Switch / One Push AE / Touch AE / Preview / Level Gauge / Focus Area Set / Photo Style / Aspect Ratio / Picture Size / Quality / Metering Mode / Focus Mode |
| Fn1, Fn2, Fn3, Fn4, Fn5, F6, F7 |
/ i.Dynamic / i.Resolution / HDR / Electronic Shutter / Flash Mode / Flash Adjust. / Ex. Tele Conv. / Digital Zoom / Stabiliser / Sensitivity / White Balance / AF Mode / Drive Mode / Restore to Default / Motion Pic. Set |
| Fn1, Fn2, Fn3, Fn4, Fn5, F6, F7 |
/ Picture Mode / Peaking / Function Lever / Histogram / Guide Line / Rec Area / Step Zoom / Zoom Speed |
| FUNCTION LEVER |
Function Lever |
Yes (AUTO/Zoom/EXP.) |
| CREATIVE CONTROL |
Still image |
Expressive / Retro / Old days / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy POP/ |
| Still image |
Bleach Bypass / Miniature Effect / Soft Focus / Fantasy / Star Filter / One Point Colour / Sun Shine |
| Video |
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy POP / |
| Video |
Bleach Bypass / Miniature Effect / Fantasy / One Point Colour |
| CREATIVE VIDEO MODE |
Exposure mode |
Program AE/ Aperture-Priority / Sutter-Priority / Manual Exposure / |
| PHOTO STYLE |
Still image and video |
Standard / Vivid / Natural / Monochrome / Scenery / Portrait / Custom / |
| PLAYBACK |
Playback mode |
Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (16x Max.), Slideshow (duration & effect is selectable), |
| Playback mode |
Playback Mode (Normal/Picture/Video/3D Play/Category/Favourite), Title Edit, Location Logging, Clear Retouch, Text Stamp, Video Divide, Stop Motion Video, |
| Playback mode |
Time Lapse Video, Resize, Cropping, Rotate, Favourite, Print set, Protect, Face Recognition Edit |
| IMAGE PROTECTION / ERASE |
Protection |
Single / Multi, Cancel / |
| Erase |
Single / Multi / All / Except Favourite / |
| PRINT |
Direct print |
PictBridge compatiblePrint size, Layout, Date setting are selectable |
| INTERFACE |
USB |
USB 2.0 High Speed Multi |
| HDMI |
miniHDMI TypeC |
| HDMI |
Video: Auto / 1080i / 720p / 480p (576p in PAL system) |
| HDMI |
Audio: Stereo |
| Audio video output |
Monaural Type, NTSC/PAL, NTSC only for North America |
| Audio video output |
*Check the website of the Panasonic sales company in your country or region for details on the products that are available in your market. |
| Remote input |
2.5mm for Remote |
| External microphone input |
3.5mm for External microphone |
| Microphone |
Stereo, Wind-cut: AUTO / HIGH / STANDARD / LOW / OFF |
| Microphone |
Microphone level adjustable : 19 levels |
| Speaker |
Monaural |
| LANGUAGE |
OSD language |
Japanese, English, German, French, Italian, Spanish, Traditional Chinese |
| GENERAL |
POWER |
Battery |
Li-ion Battery Pack (7.2V, 1200mAh) (Included) |
| Battery |
Battery Charger |
| Battery life (CIPA standard) |
Approx. 330 images with H-FS014042 |
| Battery life (CIPA standard) |
Approx. 350 images with H-FS45150 |
| DIMENSIONS / WEIGHT |
Dimensions (W x H x D) |
122.45 x 84.6 x 71.4 mm / 4.82 x 3.33 x 2.81 inch(excluding protrusions) |
| Weight |
Approx. 340g / 0.75 lb Body only) |
| Weight |
Approx. 755g / 1.66lb (SD card, Battery, H-FS014042+FS45150 lenses included) |
| OPERATING ENVIRONMENT |
Operating temperature |
0 to 40 (32F to 104F) |
| Operating humidity |
10% RH to 80 RH |
| STANDARD ACCESSORIES |
Software |
PHOTOfunSTUDIO 9.2 PE |
| Software |
SILKYPIX Developer Studio 3.1 SE |
| Software |
LoiLoScope (trial version) |
| Software |
USB Driver |

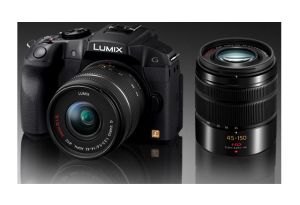

| Standard accessories |
Body |
| Standard accessories |
LUMIX G VARIO 14-42mm/F3.5-5.6 ASPH./MEGA O.I.S. |
| Standard accessories |
LUMIX G VARIO 45-150mm/F4.0-5.6 ASPH./MEGA O.I.S. |
| Standard accessories |
Lens Cap x 2 |
| Standard accessories |
Lens Hood x 2 |
| Standard accessories |
Lens Rear Cap x 2 |
| Standard accessories |
Battery Charger |
| Standard accessories |
Battery Pack |
| Standard accessories |
Body Cap |
| Standard accessories |
USB Connection Cable |
| Standard accessories |
Shoulder Strap |
| Standard accessories |
CD-ROM |
| INTERCHANGEABLE LENS-1 |
Lens name |
LUMIX G VARIO 14-42mm / F3.5-5.6 ASPH. / MEGA O.I.S. |
| Lens construction |
12 elements in 9 groups (1 Aspherical lens) |
| Mount |
Micro Four Thirds mount |
| Optical image stabiliser |
Yes |
| Focal length |
f=14mm to 42mm (35mm camera equivalent 28mm to 84mm) |
| Aperture type |
7 diaphragm blades / Circular aperture diaphragm |
| Aperture |
F3.5(Wide) - F5.6(Tele) |
| Minimum aperture |
F22 |
| Closest focusing distance |
0.3m / 1ft |
| Maximum magnification |
Approx. 0.16x / 0.32x (35mm camera equivalent) |
| Diagonal angle of view |
7529 |
| General |
Filter Size |
52mm / 2.05 in |
| Max. diameter |
60.6mm / 2.39 in |
| Overall length |
Approx. 63.6mm / 2.50 in (from the tip of the lens to the base side of the lens mount) |
| Weight [g] |
Approx. 165g |
| Weight [oz] |
Approx. 5.82oz |
| INTERCHANGEABLE LENS-2 |
Lens name |
LUMIX G VARIO 45-150mm / F4.0-5.6 ASPH. / MEGA O.I.S. |
| Lens construction |
12 elements in 9 groups (2 aspherical lenses , 1 UHR lens) |
| Nano surface coating |
- |
| Mount |
Micro Four Thirds mount |
| Optical image stabiliser |
Yes (MEGA O.I.S.) |
| Focal length |
f=45-150mm (35mm camera equivalent 90-300mm) |
| Aperture type |
7 diaphragm blades / Circular aperture diaphragm |
| Maximum aperture |
F4.0(Wide) - F5.6(TELE) |
| Minimum aperture |
F22 |
| Closest focusing distance |
0.9m / 3.0ft |
| Maximum magnification |
Approx. 0.17x / 0.35x (35mm camera equivalent) |
| Diagonal angle of view |
27(Wide) to 8.2(TELE) |
| General |
Filter size |
52mm / 2.05in |
| Max. diameter |
62mm / 2.44in |
| Overall length |
Approx. 73mm / 2.9in (from the tip of the lens to the base side of the lens mount) |
| Weight [g] |
Approx. 200g (excluding lens cap and lens rear cap) |
| Weight [oz] |
Approx. 7.1oz (excluding lens cap and lens rear cap) |
| NOTE |
*1 Use a card with SD Speed Class with "Class4" or higher |
| NOTE |
*2 Videos can be recorded continuously for up to 29 min 59 sec in Europe and some Asia areas. Continuous recording exceeding 4GB or 29 min 59 sec is not possible when recording MP4. For Full HD in MP4, the recordable time will drop below 29 min 59 sec. |
