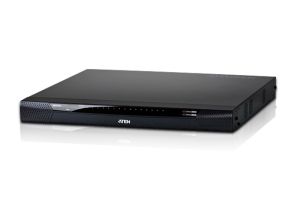

Altusen KN2116V Altusen 1 Local/2 Remote Console - 16-Port Rackmount USB-PS/2 Cat5 KVM Over IP Switch with VMedia

No Longer Available

Part Number:

311797

(?) Brand:

Altusen

Manuf No:

KN2116V-AX-U
KN2116VAXU

Shipping Weight:

17.5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

KN2116VAXU, KN2116V-AX-U, ATKN2116V

Aten Altusen 1 Local/2 Remote Console 16 Port Rackmount USB-PS/2 Cat5 KVM Over IP Switch with VMedia

KN2116V

Description

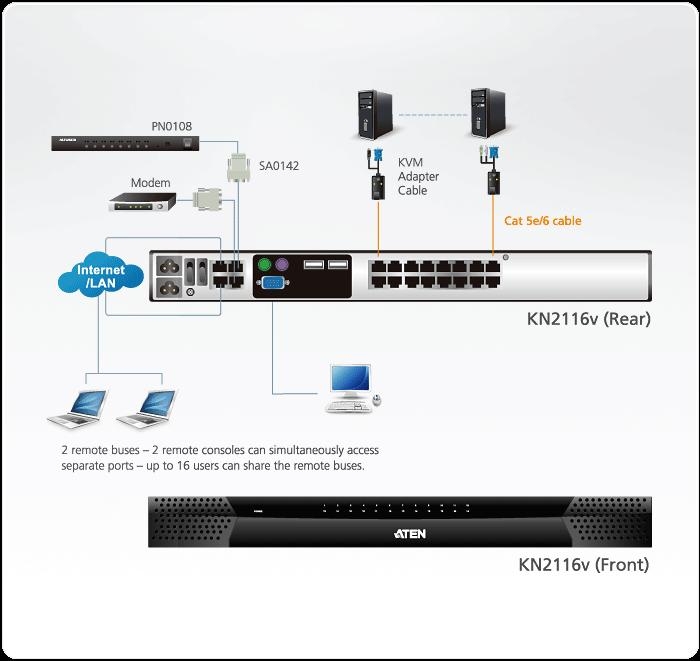

16-Port KVM over IP Switch 1 local/2 remote user access

Atens new generation of KVM over IP switches - KN series allows local and remote operators the ability to monitor and access their entire data center over the network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches user interface.

KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system- is recorded and saved to a secure video file as evidence, without exception.

Features

Hardware

High port density RJ-45 connectors for up to 16 ports in a 1U housing
Two separate buses for remote KVM over IP access
Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
Blade server support NEW!
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides PS/2 and USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Audio enabled
Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server
Dual Power Supply
High video resolution - up to 1600 x 1200 @ 60Hz - 32 bit color depth for the local console; up to 1600 x 1200 @ 60Hz with 24 bit color depth for remote sessions, at up to 50 m
Monitor and control up to 16 computers on a single level, or control up to 256 computers in a two-level cascade*

* Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, and KH1516A. Some KVM over IP Switches features may not be supported, depending on the functionality of the cascaded KVM switch.

Management

Up to 64 user accounts - up to 32 users simultaneously share the control
Green IT-Fan speed varies according to temperature
End session feature - administrators can terminate running sessions
Event logging and Windows-based Log Server support
Critical system event notification via SMTP email; SNMP trap and Syslog support
Customizable events notification NEW!
Firmware upgradeable
Out-of-Band Access-Modem dial-in/dial out/dial back support NEW!
Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
Port Share Mode allows multiple users to gain access to a server simultaneously
Integration with ALTUSEN CC2000 Management software
Power Association enables the switch's KVM ports to be associated with an ATEN/ALTUSEN'S PDUs power outlets for remote power management of the servers from the switch's interface NEW!
Manage browser access methods(Browser, http, https) NEW!
IPv6 capable NEW!

Ease-to-Use Interface

Local Console, browser-based, and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
User can launch multiple Virtual Remote Desktop to control multiple connected servers from the same login session
Magic Panel
Full-screen or sizable and scalable Virtual Remote Desktop
Panel Array Mode available to both local console operators and remote access users
Keyboard/Mouse Broadcast keyboard and mouse inputs can be duplicated on all the attached servers NEW!
Video syncing with the local console local console monitor's EDID information stored on the KVM Adapter Cables for display resolution optimization NEW!

Advanced Security

Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports SSL 128-bit data encryption and RSA 1024-bit certificates to secure users log in from browser
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
Support for IP/MAC Filter
Configurable user and group permissions for server access and control
Automated CSR creation utility and third party CA certificate authentication NEW!

Virtual Media

Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB enabled servers in operating system and BIOS level
Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images

Virtual Remote Desktop

Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote usersc
Mouse DynaSync automatically synchronizes the local and remote mouse movements
Exit Macros support
On-screen keyboard with multilanguage support
BIOS-level access

Specifications

Computer Connections	Direct		16
	Max		256(via Cascade)
Console Connections	Local		1
	Remote		2
Port Selection			Pushbutton, GUI, Hotkey
Connectors	Console Port	Keyboard	1 x 6-pin Mini-DIN Female (Purple) 1 x USB Type A Female (White)
		Video	1 x HDB-15 Female (Blue)
		Mouse	1 x 6-pin Mini-DIN Female (Green) 1 x USB Type A Female (White)
	KVM Ports		16x RJ-45 Female (Black)
	Power		2 x 3-prong AC socket
	LAN		2 x RJ-45 Female (Black)
	PON		1 x RJ-45 Female (Black)
	Modem		1 x RJ-45 Female (Black)
	USB		3 x USB Type A Female (White)
	Audio		2 x Audio Jack Female
Switches	Reset		1 x Semi-recessed Pushbutton
	Power		2 x Rocker
	Port Selection		2 x Pushbutton
LEDs	On Line		16(Green)
	Selected		16(Red)
	Power		1 (Blue)
	Link 10 / 100 / 1000 Mbps		2 (Red / Red + Green / Green)
Emulation	Keyboard/Mouse		PS/2 / USB (PC, Mac, Sun) / Serial
Video			1600x1200 @ 60Hz
Scan Interval			1-255 Seconds
I/P Rating			100-240VAC ; 50-60Hz; 1.0A
Power consumption	Single Power		115V / 32.6W ; 230V / 33.4W
	Dual Power		115V / 38W ; 230V / 38.7W
Environment	Operating Temp.		0 - 50C
	Storage Temp.		-20 - 60C
	Humidity		0 - 80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		5.91 kg
	Dimensions ( L x W x H )		43.36 x 41.35 x 4.40 cm (19"/1U)

Package Contents

1x KN2116v KVM over IP Switch
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
2x Power Cords
2x Utility Power Cords
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
