HOME / Back -> KVM/Switch Boxes -> Video -> ATEN

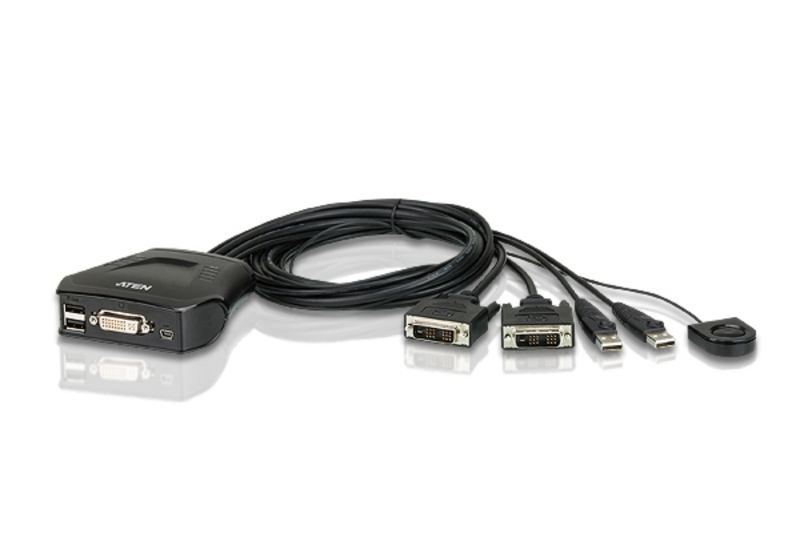

ATEN 2-Port USB DVI Cable KVM Switch
  • 2 x USB Type A Male (Black), 2 x DVI-D Male (Black)
  • Up to 1920 x 1200 @ 60 Hz

IMG 1 of 1
No Longer Available
Part Number:
312053
(?) Brand:
ATEN
Manuf No:
CS22D
Shipping Weight:
0.33 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
CS22D, 4719264640315
Overview
CS22D

The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.

The CS22Dâs compact all-in-one design makes it ideal for multiplatform desktop applications.
  • One DVI-D video console controls two DVI-D USB interface computers
  • Computer Selection via Remote Port Selector
  • OS Support: Windows 2000, Windows XP, Windows Vista, 7, Mac, Sun and Linux
  • Superior video quality- up to 1920 x 1200@60Hz
  • Supports USB hot-plugging
  • Non-powered
  • Supports USB 2.0 device

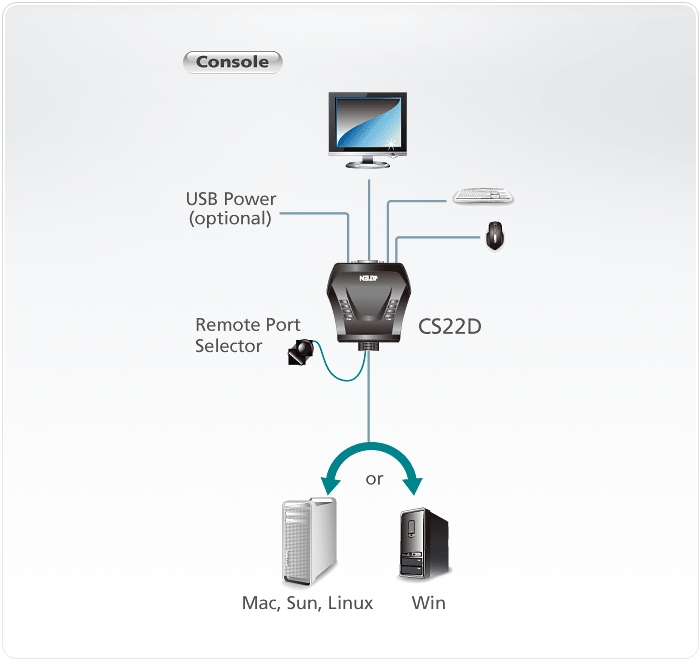

CS22D Diagram

Computer Connections 2
Port Selection Remote Port Selector
Connectors Console Keyboard 1 x USB Type A Female (Black)
Mouse 1 x USB Type A Female (Black)
Video 1 x DVI-I Female (Black)
Power 1 x mini USB Type B Female (Black, Optional)
Computer ports KB/MS 2 x USB Type A Male (Black)
Video 2 x DVI-D Male (Black)
LEDs Selected 2 (Green)
Resolution DVI-D: 1920 x 1200 @ 60 Hz
Power Consumption 5V, 2.5W
Environment Operation Temperature 0 - 50C
Storage Temperature -20 - 60C
Humidity 0 - 80% RH, Non-condensing
Physical Properties Housing Plastic
Weight 0.33 kg
Dimensions
( L x W x H )		 9.95 x 9.36 x 3.01 cm




No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
