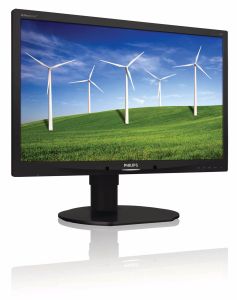

Philips Brilliance LCD monitor, LED backlight with PowerSensor
B-line
22" / 55.9 cm
1680x1050
220B4LPYCB
Sustainable eco design display with PowerSensor saves energy bills
The Philips PowerSensor LED display using 65% post consumer recycled plastics and PVC, BFR free housing is ideal for eco-friendly productivity.
Sustainable Eco-design
- PowerSensor saves up to 80% energy costs
- Zero power consumption with 0 watt hard switch
- 65% post consumer recycled plastics with TCO Edge
- PVC-BFR free housing
Excellent performance
- LED technology ensures natural colors
- DisplayPort offers audio and video over a single, long cable
- Built-in stereo speakers for multimedia
Designed for people
- SmartErgoBase enables people-friendly ergonomic adjustments
- Low bezel-to-table height for maximum reading comfort
Easy to experience
- SmartImage presets for easy optimized image settings
- USB Hub with 2 ports for easy connections
Highlights
LED technology
White LED's are solid state devices which light up to full, consistent brightness faster saving startup time. LED's are free from mercury content which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of LCD backlight, resulting in super high contrast ratio. It also gives superior color reproduction thanks to consistent brightness across the screen.
PowerSensor
PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if user is present and automatically reduces monitor brightness when user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life
DisplayPort
DisplayPort is a digital link from PC to Monitor without any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15meter cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates - making DisplayPort the best choice for not only general office or home use, but also for the demanding gaming and movies, video editing and more. It also keeps interoperability in mind via use of various adapters.
SmartErgoBase
The SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management. The base's people-friendly height, swivel, tilt and rotation angle adjustments position the monitor for maximum comfort that can ease the physical strains of a long workday; cable management reduces cable clutter and keeps the workspace neat and professional.
Low bezel-to-table height
The Philips monitor, thanks to its advanced SmartErgoBase, can be lowered down almost to desk level for a comfortable viewing angle. Low bezel-to-table height is the perfect solution if you use bifocals, trifocals or progressive lens glasses for your computing work. Additionally, it allows for users with greatly different heights to use the monitor in their preferred angle and height settings, helping them reduce fatigue and strain.
Built-in stereo speakers
A pair of high quality stereo speakers built into a display device. It can be visible front firing, or invisible down firing, top firing, rear firing, etc depending on model and design.
2 Ports USB 2.0 HUB
USB Hub allows user to conveniently connect their plug and play multimedia devices such as USB memory devices, camera, portable HDD, Web camera, PDA, Printer and many other devices which has USB connection available. The conveniently located USB 2.0 Hub on the monitor allows USB 2.0 signals to pass thru to the computer. Note that many devices like cameras and HDD may need to be powered On independently, as they have higher power requirements than the monitor USB Hub can provide.
SmartImage
SmartImage is an exclusive leading edge Philips technology that analyzes the content displayed on your screen and gives you optimized display performance. This user friendly interface allows you to select various modes like Office, Photo, Movie, Game, Economy etc., to fit the application in use. Based on the selection, SmartImage dynamically optimizes the contrast, color saturation and sharpness of images and videos for ultimate display performance. The Economy mode option offers you major power savings. All in real time with the press of a single button!
TCO Edge
TCO Edge certification is given to products which go beyond existing eco-labeling programs. Over and above standard TCO requirements, it further mandates that the product uses minimum 65% of post consumer recycled plastics, is energy efficient, uses minimal hazardous materials, has 100% recyclable packaging, and is designed for easy recycling amongst other requirements. You can rest assured that this Philips monitor is a cutting edge technology product which is best in class ICT, benefitting you and the planet while helping you make a responsible green IT purchase!
PVC-BFR free housing
This Philips monitor housing is free from brominated flame retardant and polyvinyl chloride (PVC-BFR free)
Zero power consumption
At the flick of the 0 watt hard switch which is conveniently located at the back, you can completely cut-off your monitor from AC power. This results in zero power consumption reducing your carbon footprint even further
Specifications
Picture/Display
LCD panel type: TFT-LCD
Backlight type: W-LED system
Panel Size: 22 inch / 55.9 cm
Effective viewing area: 473.76 (H) x 296.1 (V)
Aspect ratio: 16:10
Optimum resolution: 1680 x 1050 @ 60Hz
Response time (typical): 5 ms
Brightness: 250 cd/m²
Contrast ratio (typical): 1,000:1
SmartContrast: 20,000,000 :1
Pixel pitch: 0.282 x 0.282 mm
Viewing angle: 170º (H) / 160º (V), @ C/R > 10
Picture enhancement: SmartImage
Display colors: 16.7 M
Scanning Frequency: 30 - 83 kHz (H) / 56 - 75 Hz (V)
sRGB
Connectivity
Signal Input: DisplayPort, DVI-D (digital, HDCP), VGA (Analog )
USB: USB 2.0 x 2
Sync Input: Separate Sync, Sync on Green
Audio (In/Out): PC audio-in, Headphone out
Convenience
Built-in Speakers: 1.5Wx2
User convenience: SmartImage, Volume, PowerSensor, Menu, Power On/Off
Control software: SmartControl Premium
OSD Languages: English, French, German, Italian, Portuguese, Russian, Simplified Chinese, Spanish
Other convenience: Kensington lock, VESA mount (100x100mm)
Plug & Play Compatibility: DDC/CI, Mac OS X, sRGB, Windows 7/Vista/XP
Stand
Height adjustment: 110 mm
Pivot: 90 degree
Swivel: -65/65 degree
Tilt: -5/20 degree
Power
ECO mode: 12.6W (typ.)
On mode: 16.8W (typ.) (EnergyStar 5.0 test method)
Standby mode: 0.1W
Off mode: Zero watts with Zero switch
Power LED indicator: Operation - White, Standby mode- White (blinking)
Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
Product with stand (mm): 504 x 509 x 227 mm
Product without stand (mm): 504 x 349 x 59 mm
Packaging in mm (WxHxD): 565 x 391 x 186 mm
Weight
Product with stand (kg): 5.20 kg
Product without stand (kg): 3.38 kg
Product with packaging (kg): 7.05 kg
Operating conditions
Temperature range (operation): 0°C to 40°C °C
Temperature range (storage): -20°C to 60°C °C
Relative humidity: 20%-80 %
Altitude: Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
MTBF: 30,000 hour(s)
Sustainability
Environmental and energy: PowerSensor, EnergyStar 5.0, EPEAT Gold*, TCO edge, RoHS
Recyclable packaging material: 100 %
Post consumer recycled plastic: 65%
Specific Substances: PVC / BFR free housing, Mercury free, Lead free
Compliance and standards
Regulatory Approvals: BSMI, CE Mark, FCC Class B, GOST, SASO, SEMKO, TCO 5.2, TUV Ergo, TUV/GS, UL/cUL, WEEE
Cabinet
Front bezel: Black
Rear cover: Black
Foot: Black
Finish: Texture
