HP NK653AA Firewire Controller - 2xFireWire IEEE 1394b - PCI-Ex1 - For HP Workstations

IMG 1 of 1
No Longer Available
Part Number:
312444
(?) Brand:
HP Web Site
Manuf No:
NK653AA
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
NK653AA, 1171004, 884420695806

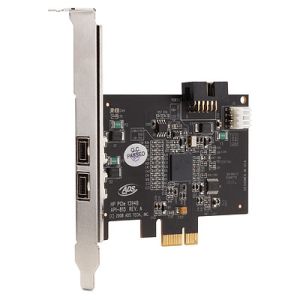

HP IEEE 1394b FireWire PCIe Card
NK653AA

Description

This high speed serial interface enables fast data transfer from external peripherals such as external hard disks, or digital cameras and videos. Twice the transfer rate of IEEE-1394a cards, it features two external ports and one internal header. IEEE-1394b is one of the fastest serial interface standards ever developed, which makes it great for use with high-speed or bandwidth-intensive multimedia peripherals such as digital video cameras, audio, streaming and graphics. The HP IEEE-1394b FireWire 800 PCIe Card has twice the data transfer rate of IEEE-1394a cards and is backward compatible to allow your IEEE-1394a devices to operate under the IEEE-1394b bilingual port with the use of an adapter cable. High-speed peripherals can be connected externally, eliminating the need to install internal hardware making installation as simple as connecting the device to your workstation. The PCIe card features two external IEEE-1394b bilingual ports located on the PCIe card bracket and one internal port header located on the PCIe card to connect to front panel 1394 port on HP Workstations. All a customer needs is an open PCIe slot and the driver included on the CD with the PCIe card, allows the card to function at 800 Mb/s.
  • Extending the cabling distance between devices up to 100 meters.
  • Hot-swappable: Devices can be added and removed while the bus is active.
  • Isochronous data delivery: no dropped frames - IEEE-1394b supports real-time data delivery.
  • Backwards compatible with adapter cables allow IEEE-1394a devices to operate under the IEEE-1394b bilingual port.
  • Isochronous data delivery: no dropped frames - IEEE-1394b supports real-time data delivery.
Manufacturer Warranty The HP FireWire IEEE-1394b PCIe Card has a one-year Limited Warranty or the remainder of the warranty of the HP supported product in which it is installed. Technical support is available seven days a week, 24 hours a day, by phone, as well as online support forums. Certain restrictions and exclusions apply.
Minimum system requirements Microsoft Windows XP Professional, Windows XP Home, Windows Vista. Not supported on Linux. Pentium III or higher processor 128-MB RAM 1-GB Hard Drive CD-ROM drive Built in sound system Available PCI slot
Product dimensions (W x D x H) 8.5 x 9.75 x 2.5 in
Technical Notes Note: IEEE-1394 and IEEE-1394a devices connected to the FireWire 800 IEEE-1394b PCIe card will only run at the lower data rate. For a list of IEEE-1394 compliant devices visit the IEEE-1394 Web site at https://www.1394ta.org.
Warranty The HP FireWire IEEE-1394b PCIe Card has a one-year Limited Warranty or the remainder of the warranty of the HP supported product in which it is installed. Technical support is available seven days a week, 24 hours a day, by phone, as well as online support forums. Certain restrictions and exclusions apply.
Weight ( Imperial ) 1.10 lb
Weight ( Metric ) 0.50 kg



Extended specifications




Technical Information
Host Interface PCI Express
Platform Supported PC



Interfaces/Ports
Total Number of FireWire/i.LINK Ports 2
Number of FireWire/i.LINK 400 Ports 2



Physical Characteristics
Height 8.5"
Width 9.8"
Form Factor Plug-in Card
Thickness 2.5"
Weight (Approximate) 1.10 lb



Miscellaneous
Platform Supported PC



Warranty
Limited Warranty 1 Year

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (HP) web site.
