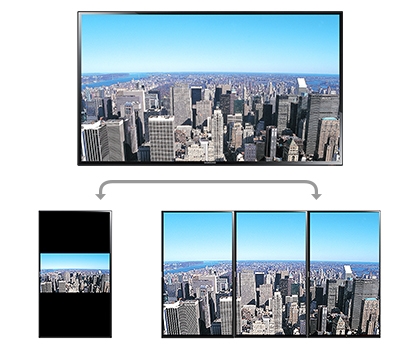

Easy Image Rotation use the display settings to rotate your content
The new ME-C Series now comes with an image rotation feature which enables simple rotation of screen content using display menu functions. The feature is designed to allow content to be reoriented with-minimal impact on its aspect ratio. It can also be delivered to multiple compatible screens via DP1.2 loop out (daisy chain)*, e.g. to expand landscape content across 3 displays in portrait mode (as shown above).
DP1.2 cables sold separately.
HDCP Support using DP1.2 loop out
The new ME-C Series, now offering the DP1.2 loop out for up to 7 compatible displays, also offers HDCP support through DP1.2 loop out. This helps to overcome HDCP compliance issues for multi screen deployments or video wall applications where you need to deliver protected content from one device to multiple displays.
DP1.2 cables sold separately.

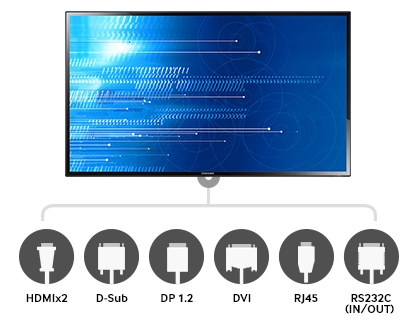

Powerful Connectivity Options
The Samsung ME-C Series offers powerful connectivity. With the Samsung line of ME-C Series displays, RS232 and RJ45 control can be used simultaneously. Using a DP1.2 loop out*, a single image can be shared with connected and compatible nearby screens. This feature helps eliminate the need to purchase separate video signal distributors for each device.
DP1.2 cables sold separately.

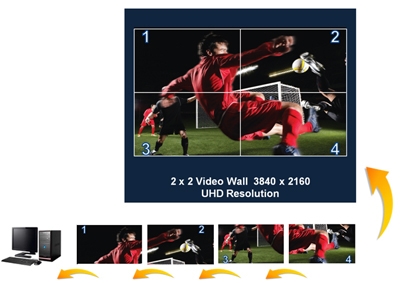

DP1.2 Loop out for UHD resolution
DP1.2 Ultra High Definition Loop Out for 2 x 2 Video Wall Configurations
The new Samsung ME-C, UE-C, PE-C and UD-C series displays utilises DP1.2 technology to help enable delivery of UHD content across 4 separate displays (each display sold separately) when set up in a 2 x 2 landscape video wall configuration. Simply loop out of the first display with a DP1.2 cable* and daisy chain the displays and they are ready to accept Ultra High Definition (3,820 x 2,160) content.**
DP1.2 cables sold separately
Content delivery device must be able to deliver UHD content via DP1.2 to the first display

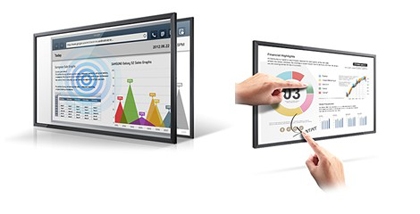

Help Engage Viewers with Optional Adaptive Touch Module
The Adaptive Touch Module* option transforms the ME-C series displays into a dynamic touch solution, enabling the user to interact with the content on the display. Multi-touch capability up to ten points** enables multiple users simultaneously. Sizes 32 - 75 inch models feature an infrared (IR)-type touch.
Optional Adaptive Touch modules are sold separately
Offer up to ten point touch capability in 32, 40 and 46 inch models, while offering up to six point touch in 55 and 75 inch models. Touch capability is dependent on hardware and software used.
The new Samsung Smart Signage Platform and MagicInfo Premium
Enabling web based multi-display signage networks without the need for external media players! Included with the latest Samsung ME-C series displays, SSSP eliminates the need for external PC media players, helping to streamline display and content management. Combine with MagicInfo Premium S software, to create, schedule and deliver content to either a single display or multiple displays over a network.
Easy Content Creation with MagicInfo Premium-S
The SoC technology, combined with MagicInfo Premium-S software, allows for creation, scheduling and delivery of content to either a single display or multiple displays over a network. MagicInfo Premium-S offers over 60 design templates to help with content creation as well as web based content and display management.
MagicInfo Premium S is compatible with the latest Samsung ME-C, PE-C, UE-C and UD-C series displays and is included with displays for stand-alone (single display) applications.
For network applications using multiple displays, server licenses are required for each display at additional cost.
System on Chip Technology
The embedded System on Chip Technology includes a Cortex-A9 1GHz Dual Core CPU, 1GB DDR memory with 4GB FDM (2.8GB available storage) for ME-C series displays and 8GB FDM (6GB available storage) for the PE-C, UD-C and UE-C series displays.
Customised Solutions
Backed by a stable of top-tier software developers and solution providers, customers will have access to some of the most successful signage experts in the world, to assist in creating customised solutions. The platform will help make life easier for organisations looking to transition from static signage to rich, dynamic digital displays.
Extensive Content Support
Samsungs Smart Signage Platform supports a wide range of 1,920 x 1,080 video and audio codecs, including those with extensions .avi, .mkv, .asf, .wmv, .mp4.
Open Platform
Samsungs Software Developer Kit (SDK) open platform allows the software community to develop customised solutions for the embedded S0C technology. End users can benefit from third-party development of apps and content, or end users can develop custom apps utilising their own development team.
Specifications

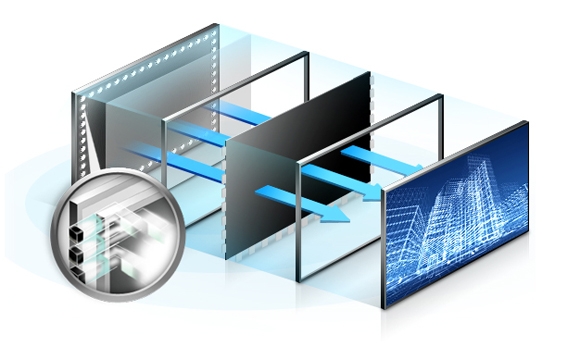

Panel
| Diagonal Size |
40" |
|
| Type |
60Hz e-LED BLU |
|
| Resolution |
1,920 x 1,080 (16:9) |
|
| Pixel Pitch (mm) |
0.15375(H) x 0.46125(V) |
|
| Active Display Area |
885.6(H) x 498.15(V) |
|
| Brightness |
450nit |
|
| Contrast Ratio (Dynamic) |
5,000:1 |
|
| Viewing Angle (Horizontal/Vertical) |
178:178 |
|
| Response Time (G-to-G) |
8ms |
|
| Display Colour |
16.7M |
|
| Color Gamut |
72% |
|
Display
| H-Scanning Frequency |
30 ~ 81kHz |
|
| Maximum Pixel Frequency |
148.5MHz |
|
| V-Scanning Frequency |
48 ~ 75Hz |
|
Connectivity
| Input |
RGB |
Analog D-SUB, DVI-D, Display Port 1.2 |
| |
Video |
HDMI1,HDMI2, Component(CVBS Common) |
| |
Audio |
Stereo mini Jack |
| Output |
RGB |
DP1.2(Loop-out) |
| |
Audio |
Stereo mini Jack |
| External Control |
RS232C(in / out) thru stereo jack, RJ45 |
|
| External Sensor |
IR, Ambient Light |
|
Mechanical Specification
| Dimension |
Set Dimension (WxHxD) |
922.1 x 539.4 x 29.9mm |
| |
Package Dimension (WxHxD) |
1,020 x 616 x 130mm |
| Weight |
Set Weight |
10.6kg |
| |
Package Weight |
12.6kg |
| VESA Mount |
200 x 200mm |
|
| Protection Glass |
Optional |
|
| Stand Type |
Foot Stand (Optional) |
|
| Media Player Option Type |
Embbeded, SBB-A(Attadched) |
|
Operation
| Operating Temperature |
0C ~ 40C |
|
| Humidity |
10 ~ 80% |
|
General Feature
| Key |
Slim & Light LFD with Built-in MagicInfo Lite |
|
| Special |
Magic Clone(to USB), Auto Source
Switching & Recovery, Lamp Error
Detection, Super Clear Coating,
Temperature Sensor, RS232C / RJ45
MDC, Plug and Play (DDC2B), PIP / PBP,
Video Wall(10 x 10), Pivot Display, Image
Rotation, Button Lock, DP 1.2 Digital
Daisy Chain(Supporting 2 x 2 UHD
Resolution, HDCP Support), Smart
Scheduling, Smart F / W update, Clock
Battery(80hrs Clock Keeping) Built In
MagicInfo(Lite, Premium-S, Videowall-S) |
|
| Internal Player |
Processor |
Cortex-A9 1GHz Dual Core CPU |
| |
On-Chip Cache Memory |
L1 (I / D) : 32KB / 32KB L2 (Unified) : 512KB |
| |
Clock Speed |
1GHz CPU Dual |
| |
Main Memory Interface |
1GB Dual 32bit DDR3-667 (1,333MHz) |
| |
Graphics |
2D & 3D Graphics Engine - Up to 1,920 x 1,080. 32bpp - Supports OpenGL ES |
| |
Storage (FDM) |
4GB (1.2GB Occupied by O / S, 2.8GB Available) |
| |
Multimedia |
Video Decoder - MPEG-1 / 2, H.264 / AVC (Dual) - VC-1, JPEG, PNG Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc. |
| |
IO Ports |
USB 2.0 |
| |
Operating System |
Linux |
Power
| Power Supply |
AC 100 - 240V ~ (+/- 10%), 50 / 60Hz |
|
| Power Consumption |
Off Mode |
Less than 0.5W |
| |
On Mode |
110 (Max) / 93 (Typ.) / 375.1 (BTU) |
| |
Sleep Mode |
Less than 0.5W |
| Type |
Internal |
|
Embedded PC
| CPU |
SBB-A (Optional) |
|
| N/B |
SBB-A (Optional) |
|
| S/B |
SBB-A (Optional) |
|
| GPU |
SBB-A (Optional) |
|
| FDM/HDD |
SBB-A (Optional) |
|
| Memory |
SBB-A (Optional) |
|
| Ethernet |
SBB-A (Optional) |
|
| Connectivity |
USB |
SBB-A (Optional) |
| |
Output |
SBB-A (Optional) |
| |
Others |
SBB-A (Optional) |
Certification
| EMC |
FCC (USA) FCC Part 15, Subpart B class A, CE (Europe) EN55022, EN55024, VCCI (Japan) V-3 (CISPR22), KCC (Korea): KN22, KN24, BSMI (Taiwan): CNS13438 (CISPR22), C-Tick (Australia): AS/NZS3548 (CISPR22), CCC(China): GB 9254-2008, GB 17625.1-2003 |
|
| Environment |
ENERGY STAR 6.0 (USA) |
|
| Safety |
CUL (USA + Canada): UL60065, TUV (Germany): EN60065, CB (Europe): IEC60065 / EN60065, EK (Korea): K60065, CCC (China): GB8898, PSB (Singapore): IEC60065, GOST (Russia): IEC60065, EN55022, SIQ (Slovenia): IEC60065, EN55022, PCBC (Poland): IEC60065, EN55022, NOM (Mexico): NOM-001-SCFI-1993, IRAM (Argentina): IRAM, SASO (Saudi Arabia): IEC60065 |
|
Accessory
| Included |
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries |
|
| Optional |
Mount |
WMN250MD |
| |
Specialty |
CML400D (Ceiling Mount) |
| |
Stand |
STN-L4055AD |
