All stock codes associated to this product
LH40PECPLBC/XY

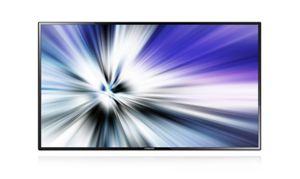

40" PE Series Display (PE40C)
PE40C
Overview
Power. Efficiency. Reliability.
Convey the right message in a highly efficient, controllable, and cost-effective manner with Samsung PE Series Premium Signage Displays. Start capturing your audience immediately to increase your business performance.
Features

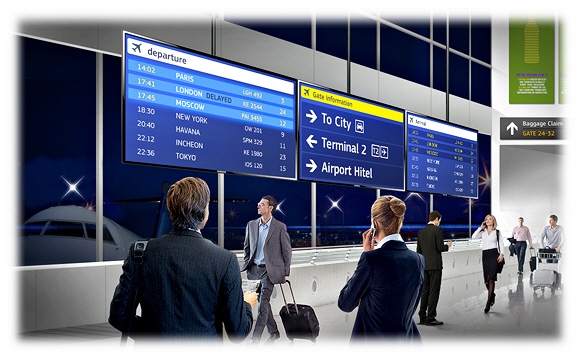

Designed for companies that require a exceptional digital signage solution in high-traffic areas which do not compromise on quality and performance, Samsung PE Series Premium Signage Displays enable continuous, high-quality content presentation in any environment. Equipped with Samsungs powerful and exclusive SSSP technology using dual-core CPU, and a combination of media player and integrated display solution, MagicInfo Premium S player, the Samsung PE Series can deliver multiple types of content seamlessly to your audience. Watch your display management productivity go up as your total cost of ownership goes down with this all-in-one display.
An integrated solution to provide a new digital signage experience

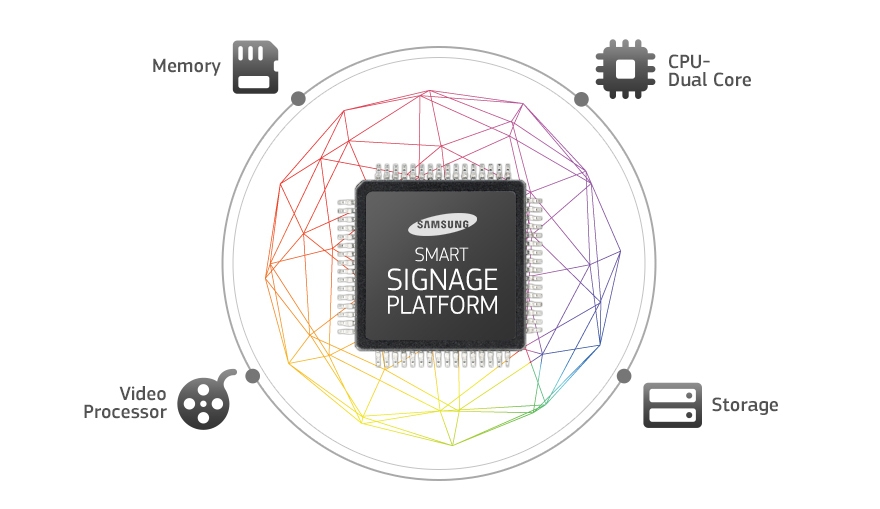

The Samsung Smart Signage Platform (SSSP) is embedded within Samsung displays, providing the power of a dual-core CPU and a combination of media player and integrated display solution, MagicInfo Premium S player. The solution eliminates the need for additional PC modules while reducing installation and maintenance issues. Using the included MagicInfo Premium S player, businesses can create, schedule, and deploy content effortlessly. Multiple types of content can be streamed simultaneously and continuously courtesy of the dual-core CPU and 8GB of storage, and a high performance video processor integrated on a single chip. Save more by paying less for a display integrated with a media player and premium management solution.
Create, display and manage. All with simple, effortless steps

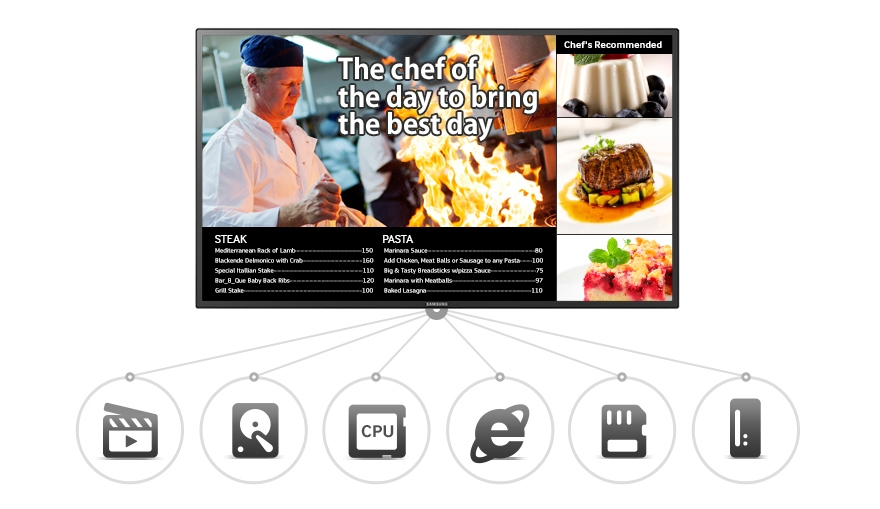

The embedded solution, Samsung MagicInfo Premium S player, is designed to easily create, deploy, display content and even manage display operations.
Easy content creation:
Easily create multimedia and interactive content with pre-made templates and customise compelling messages using drag & drop and the intuitive user interface.
Easy and efficient content deployment:
Play content on multiple displays from a central PC, directly from internal storage or USB drive through simple plug & play.
Simple display operation:
Monitor and schedule various types of content in multiple displays from one central location efficiently and without difficulty.
These features of the embedded Samsung MagicInfo Premium S player come with no additional costs. With the MagicInfo Premium S player, monitoring display status and controlling display operation have never been simpler.
Brilliant Picture Quality
Its slim bezel and edge-LED*BLU technology offer high brightness, with a luminescence of 700nit.To assist viewing in high light situations the display has a glare-resistant, anti-glossy panel. The PE Series represent highly durable displays that are designed for operation 24/7 in a variety of challenging environments.
Slim and Lightweight for Flexible Installation

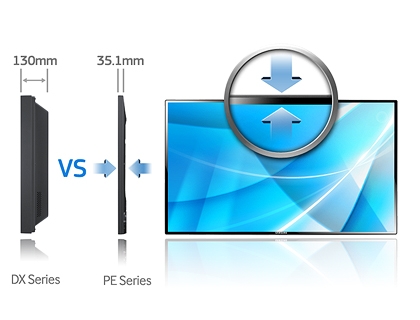

The PE Series has an extremely slim depth, giving a sleek overall appearance. The lightweight design makes installation a breaze. A narrow bezel creates virtually seamless video walls for an immersive experience.
Increase content possibilities with external content drives and the optional Samsung PIM

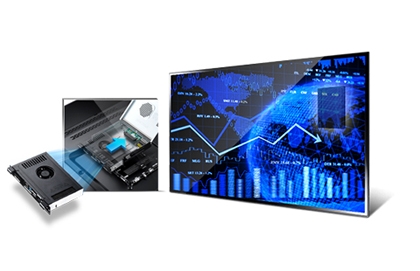

PEC Series displays are designed to use content from various external sources, including PCs, external hard drives and USB drives, with an optional PIM. Samsung PIMs use Intel Open Pluggable Specification (OPS) connectivity to enable power and video source delivery through a single cable. No additional power cord is necessary. With the optional PIM installed, external clutter is reduced so that the slim design of PEC Series displays is retained.
Easy Installation and Efficient Space Usage

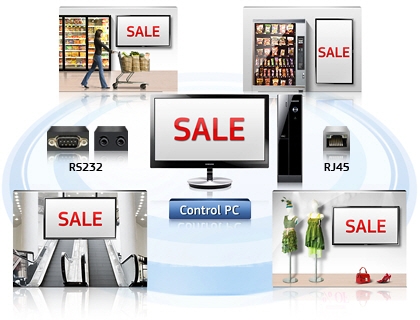

Improve business display management with the slim, lightweight design of the Samsung PE Series. This attractive LFD ensures easy installation and improved space management, leaving more room available for other purposes. Content can be delivered to heights of up to 15m thanks to the DisplayPort feature. Furthermore, remote control is ensured by RJ45 port utilisation, even when users are combining RJ45 and RS-232 connections.
Specifications:
Panel
| Diagonal Size |
40" |
|
| Type |
60Hz LED BLU |
|
| Resolution |
1,920 x 1,080 (16:9) |
|
| Pixel Pitch (mm) |
0.15375 (H) x 0.46125 (V) |
|
| Active Display Area |
885.60 (H) x 498.15 (V) |
|
| Brightness |
700nit |
|
| Contrast Ratio (Dynamic) |
4,000:1 |
|
| Viewing Angle (Horizontal/Vertical) |
178:178 |
|
| Response Time (G-to-G) |
8ms |
|
| Display Colour |
16.7M |
|
| Color Gamut |
70% |
|
Connectivity
| Input |
RGB |
D-Sub, DVI-D, Display Port (1.2) |
| |
Video |
Component (CVBS common), HDMI |
| |
Audio |
Stereo mini Jack |
| Output |
RGB |
DP1.2 (Loop-out) |
| |
Audio |
Stereo mini Jack |
Mechanical Specification
| Dimension |
Set Dimension (WxHxD) |
919.6 x 532.0 x 35.1mm |
| |
Package Dimension (WxHxD) |
985.0 x 634.0 x 135.0mm |
| Weight |
Set Weight |
13.5kg |
| |
Package Weight |
16.1kg |
| VESA Mount |
200 x 200mm |
|
| Stand Type |
Foot Stand (optional) |
|
| Media Player Option Type |
Embedded |
|
Operation
| Operating Temperature |
0C~ 40C |
|
| Humidity |
10 ~ 80% |
|
Power
| Power Supply |
AC 100 - 240V ~ (+/- 10%), 50 / 60Hz |
|
| Power Consumption |
Off Mode |
less than 1W (with Ethernet) |
| |
On Mode |
165 (Max) / 114 (Typical) / 562.65 (BTU) |
| |
Sleep Mode |
less than 1W (with Ethernet) |
Embedded PC
| Not Applicable |
Supports optional Set-back-box PC: SBB-A, PIM |
|
Accessory
| Included |
Quick Setup Guide, Warranty Card, Application CD, Power Cord, D-Sub cable, Remote Controller, Batteries |
|
| Optional |
Mount |
WMN4070SD, WMN250MD |
| |
Specialty |
CML400D (Ceiling Mount) |
| |
Stand |
STN-L4055AD |
