All stock codes associated to this product
EA193MiBK, EA193Mi-BK, 13NECEA193MIBK, 13NEC-EA193MI-BK, 805736047509

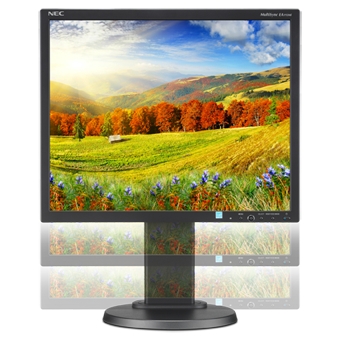

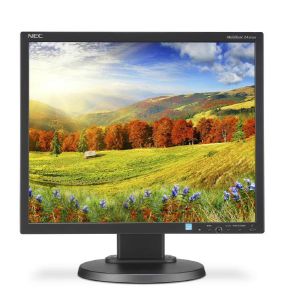

19" LED-backlit Desktop Monitor w/ IPS Panel and Integrated Speakers
MODEL: EA193MI-BK
The 19" NEC MultiSync EA193Mi uses a premium-grade IPS panel, which provides wide viewing angles, outstanding color consistency and image accuracy. Its LED backlighting technology allows a thinner, lighter and sleeker design, as well as higher power efficiency. Integrated This EPEAT Silver model includes DisplayPort, DVI-D and VGA D-Sub inputs to connect you to the latest peripherals. Enjoy full ergonomic flexibility with height adjustment, tilt, swivel and portrait adjustability.
- IPS active matrix LCD provides superior screen performance, including wide viewing angles and lifelike flesh tones
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Height-adjust, pivot, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
- DisplayPort input provides expanded connectivity with advanced technology
- ECO ModeTM allows you to manually adjust the display’s brightness to your liking, saving power and reducing your energy costs
- 25,000:1 dynamic contrast ratio delivers amazingly detailed images and text
- Resettable carbon footprint meter helps track and calculate the savings of green gas emissions
- Dynamic Visual Mode enhances video and images with real-time optimization of brightness, color and contrast
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
Product Specifications
Display
Panel Technology AH-IPS
Viewable Image Size 19"
Aspect Ratio 5:4
Native Resolution 1280 x 1024
Pixel Pitch 0.29mm
Pixels Per Inch 86@ native resolution
Backlight Type W-LED
Brightness (typical) 250cd/m2
Contrast Ratio (typical) 1000:1
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
ResponseTime (typical) 6ms
Displayable Colors More than 16.7 million
Synchronization Range
Horizontal (Analog/Digital) 31.5-81.1 kHz
Vertical 56-75 Hz
Input Signal
Video Analog RGB 0.7 Vp-p/75 Ohms
Sync Separate Sync: TTL Level (Positive/Negative)
Composite Sync: TTL Level (Positive/Negative)
Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)
Input Connectors
DisplayPort, DVI-D, VGA 15-pin D-sub
Power Consumption (typical)
On 18W
Power Savings Mode 0.35W
Physical Specifications
Dimensions (WxHxD)
Net (with stand) 16.1 x 15.2-19.5 x 8.4 in. / 408 x 386.4-496.4 x 213.9mm
Net (without stand) 16.1 x 13.3 x 2.6 in. / 408 x 338 x 65mm
Weight
Net Weight (with stand) 13.2 lbs. / 6.0 kg
Net Weight (without stand) 8.8 lbs. / 4.0 kg
VESA Hole Configuration Specifications
100 x 100mm
Environmental Conditions
Operating Temperature 41-95°F / 5-35°C
Operating Humidity 20-80%
Operating Altitude 6562 ft. / 2000m
Storage Temperature 14-140°F / -10-60°C
Storage Humidity 10-85%
Storage Altitude 40,000 ft. / 12,192m
Environmental Compliance
ENERGY STAR 6.0
TCO 6.0
EPEAT Silver
RoHS Yes
Limited Warranty (parts & labor, including backlight)
3 years
Additional Features
Auto brightness with ambient light sensor
ECO Mode
Carbon footprint meter
Resettable cost meter
Thin frame
Tilt
Swivel
Pivot
Height-adjustable stand
Integrated speakers
Rapid Response
Ambix
XtraView
OSD user controls
NaViKey
NaViSet software
Cable management
VESA mount
HDMI-capable via DVI adapter
HDCP
DDC/CI
No Touch Auto Adjust
Plug and Play (VESA DDC 2B)
VESA DPMS power management
Dynamic Video Mode
AccuColor color control
Digital smoothing
Digital controls
ISO 9241-307 Class I
Ships With
Setup sheet
User manual
Power cord
15-pin D-sub cable
DVI cable
Audio cable
