All stock codes associated to this product
HG40AB690QW, HG40AB690QWXXY
Provide your guests with an unforgettable multi-entertainment experience with premium hospitality displays.
Create a memorable guest experience with Samsung HB690 Series high-performance hospitality displays. Specifically designed for premium hotels, these exceptional displays provide your guests with a truly immersive entertainment experience to enjoy in the luxury of their rooms. This easy-to-use, IP-based interactive display provides brilliant entertainment with multi-device connectivity in a slim, stylish profile that complements your hotel room decor. HB690 Series can be a solution to the prohibitive cost of IP-based equipment and interactive solutions. With this simplified, integrated hospitality display solution, your guests can enjoy an exceptional entertainment experience and you can stay on budget with an efficient display management solution.
Treat your guests to a superb viewing experience with the sleekly designed HB690 Series. These LED displays use minimal space, boasting an ultra-thin profile that is significantly thinner than traditional LCD displays. The slim design means more space can be devoted to efficient use of luxurious hotel room interiors. A super-narrow bezel helps the display blend into the background, so your guests can focus on the images projected rather than the device delivering them. A metal frame and stand is included for an elevated level of sophistication, enhancing the ambiance of your guest rooms and your luxury hotel image.
Connect more to enjoy more
Give your guests an unforgettable, 5-star hotel-room experience with myriad entertainment options available with HB690 Series integrated, high-performance TVs. The IP-based displays offer your guests expanded flexibility with interactive solutions, including wireless connection to compatible personal devices such as smartphones, tablets and laptop computers. Many premium TVs on the market provide a varied selection of features, but include an interface that is difficult to use. With a simple interface that many of your guests may already be familiar with from using the popular Samsung TVs, accessing many desirable features is straightforward and painless.

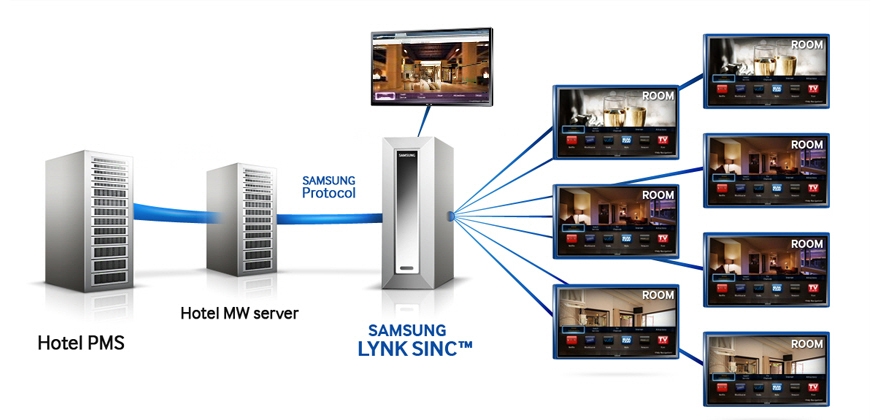

Expand services beyond basic displays with efficient content management solution
Provide your guests with the information they need when they want it. The easy-to-use Samsung LYNK solution delivers guest information directly to in-room TVs without the usual complications associated with display content management. Provide customised service to groups or individuals and engrossing IPTV live multicasts with simplified TV monitoring and management using LYNK SINC. You can provide guests tourist information, weather reports and more over the IP network using the various applications on Samsung Smart Hub that can be accessed through LYNK SINC solution on Samsung hospitality displays. Plus, guests can connect to popular applications, such as Facebook, Twitter and YouTube for more fun. With the LYNK DRM software, feel confident that encrypted content passes safely to hotel room TVs and system reliability is maintained with this cost-effective alternative to hardware-based content protection systems.

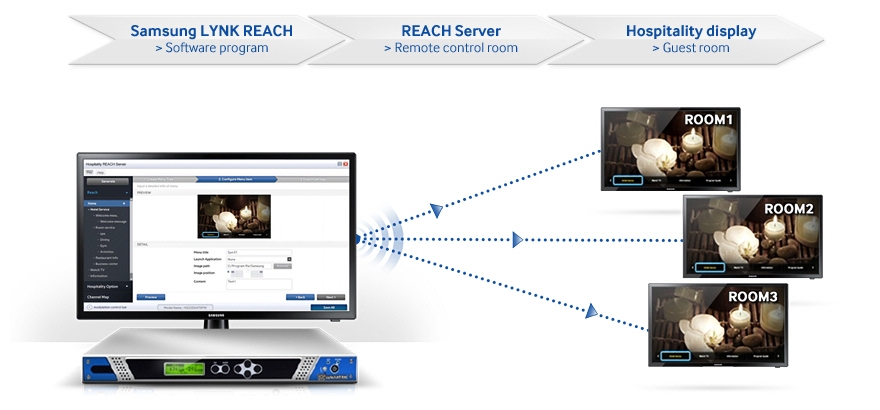

One cost-efficient display solution to meet all your needs
Able to create and edit in-room marketing content such as hotel information and promotional offers, Samsung LYNK REACH enables hotel managers to easily manage hundreds of TVs simultaneously at a central location with its intuitive user interface, using the coaxial infrastructure is likely to seamlessly integrate into the existing infrastructure. Without the need to purchase additional set-top boxes, hotels can benefit from lower total cost of ownership (TCO) and be freed from the need for continuous management and maintenance.
Screen Mirroring
Enable guests to share the screens of their compatible mobile devices on the TV to share the fun. Connecting the mobile devices with the TV using Wi-Fi Direct interface, Screen Mirroring allows the screen images to appear on the TV screen as they do on compatible smartphones and tablets.
Soft AP
Provide guests with an AP or hotspot for wireless connection for up to four personal devices. Hotel managers can adjust the signal level and change channels however they wish for the hotel facility.
AllShare
Help make your guests feel right at home by giving them the flexibility to play personal content through a wireless connection on their in-room TVs. AllShare technology powered by Digital Living Network Alliance (DLNA) lets your guests connect a wide array of compatible mobile devices to watch their own movies, play their music or view their personal photos right on the hospitality display.
Smart View
Give your guests the convenience and flexibility to view content from TVs on their compatible mobile devices. This versatile TV screen monitoring technology is made possible with the Smart View application through soft AP. Compatible devices now include Samsung GALAXY S II and succeeding models. A free TV channel support is provided for Apple iPhone and iPad with iOS v4 onwards.
Wireless Audio Dock Compatibility (SoundShare)
Heighten the TV sound quality for your guests to enjoy in their rooms. With the wireless audio dock that automatically pairs with the TV, guests can easily immerse in enhanced entertainment experience. The docks are also compatible with Samsung GALAXY phones and iPhones, which can be connected to the dock through Bluetooth 3.0, AllShare Play, or AirPlay.
SoundBar Compatibility
Couple the Samsung Hospitality TV with a SoundBar for your guests to enjoy hearing their programming even more. Connected by an HDMI cable, settings are automatically applied, making installation a breeze. A single remote control is all that is necessary for guests to have total control over both the TV and SoundBar for an immersive surround-sound experience.
Channel Editor
Hotel managers can easily manage and arrange the channel mix for both analogue and digital channels without the need to adjust and edit channel lists by different TV systems. Channels can be reordered and renamed to the hotels preference with channel mapping.
My Channel
Instead of manually scanning hundreds of TV channels, guests can easily find and enjoy the programming of their choice. My Channel's quick search functionality enables guests to find channels suited to their tastes by countries and genres.
Hospitality Stand
Guests can be provided with an extended view of the TV within their room with the stands flexible 20, 60 and 90 swivel support. The stand is held in place with a mount kit helping to ensure the TV remains in place.
Hotel Logo and Welcome Messages
Greet guests and enhance your hotel brand awareness with a unique hotel logo and customisable messages, which are on screen for adjustable period of 3 - 7 seconds whenever guests turn the TV on.
Multi-code Remote
For application in a hotel fitness centre or other locations with multiple TVs in proximity, guests can enjoy watching TV without annoying interference from other remote signals. The multi-code remote can control up to 10 TVs individually in the same room.
Remote Jack Pack Compatibility
Compatibility between Remote Jack Packs and the Samsung Hospitality TVs enable guests to simultaneously plug-and-play content from their external devices such as laptops, tablets, and smartphones on the larger TV screen. Remote Jack Pack detects the connection interface and automatically converts it to an optimised source, transmitting most common inputs as High-Definition Multimedia Interface (HDMI) output.
Variable Speaker Out
Guests can connect the TVs sound to other parts of the room, including a bathroom speaker using the external speaker-out post. Guests can enjoy their programming from anywhere in the room via installed speakers in remote locations from the TV.
Headphone ID
Samsung Hospitality Displays have a headphone socket for guests to plug headphones directly into the TV. Included Headphone ID can detect headphones connected to a bed or table in the same room, helping guests relish the luxury of listening to TV in bed or next to the table without the cumbersome need to extend the headphone cable.
Specifications:
Audio
| Dolby |
Dolby Digital Plus / Dolby Pulse |
|
| SRS / DNSe+ |
SRS TheatreSound HD |
|
| dts 2.0+Digital Out |
DTS Premium Audio |
|
| 3D Sound |
No |
|
| Speaker Type |
Down Firing + Full Range |
|
| Sound Output |
10W x 2 |
|
| Bathroom Speaker Out |
4W (Mono, 8) |
|
Display
| Backlight |
LED |
|
| Screen Size |
40 |
|
| HD/FHD |
FHD |
|
| Resolution |
1,920 x 1,080 |
|
Video
| Wide Color Enhancer Plus |
Yes |
|
| Auto Motion Plus 120/240Hz |
120Hz |
|
| Response Time |
6ms |
|
| Static Contrast Ratio |
5,000:1 |
|
| Brightness |
350 nits |
|
| Picture Engine |
HyperReal Engine |
|
| Film Mode |
Yes |
|
General Feature
| Smart Hub |
Yes |
|
| Apps |
Yes |
|
| Photos, Clips & Music |
Yes |
|
| Samsung SMART View |
Yes (Clone View only) |
|
| Web Browser |
Yes |
|
| Hand Gesture Recognition |
Ready |
|
| AllShare (Content Sharing, Screen Mirroring) |
Yes |
|
| ConnectShare (USB 2.0) |
Movie |
|
| Wireless LAN Builit-in |
Yes |
|
| Sound Share |
Yes |
|
| OSD Language |
Local Languages |
|
| Digital Noise Filter |
Yes |
|
| HDMI 1.4 A/Return Ch. Support |
Yes |
|
| Anynet+ (HDMI-CEC) |
Yes |
|
| Caption (Subtitle) |
Yes |
|
| Picture-In-Picture |
Yes |
|
| Auto Channel Search |
Yes |
|
| Auto Power Off |
Yes |
|
| Auto Volume Leveller |
Yes |
|
| Game Mode |
Yes |
|
| Sleep Timer |
Yes |
|
| Soft AP |
Yes |
|
Interface
| HDMI |
3/0 |
|
| RJ12 for External Control |
Yes |
|
| RJ45 |
0/1 |
|
| USB(Side/Rear) |
1/0 |
|
| Component In (Y/Pb/Pr) (Side/Rear) |
0/1 |
|
| Composite In (AV) (Side/Rear) |
1 (Common Use for Component Y) |
|
| Headphone (Side/Rear) |
0/1 |
|
| Digital Audio Out (Optical) (Side/Rear) |
0/1 |
|
| Headphone ID |
Yes |
|
| PC In (D-sub) (Side/Rear) |
0/1 |
|
| Variable Audio Out |
Yes |
|
| Variable Audio Out Volume Control |
Yes |
|
| RJP Jack (Remote Jack Pack) |
Yes |
|
| PC Audio In (Mini Jack) |
0/1 |
|
| DVI Audio In (Mini Jack) |
1 (Common Use for PC Audio in) |
|
| RF In (Terrestrial / Cable input) (Side/Rear) |
1/0 |
|
| RS-232C (AV Control) |
1 (Common Use for RJP) |
|
System
| DTV Reception |
DVB-T/C |
|
| Analog Tuner |
Yes |
|
| MHP/MHEG (version) / OHTV / GINGA |
MHEG 5 |
|
Power
| Power Supply (V) |
AC100 - 240V 50 / 60Hz |
|
| Power Consumption (Rated) (Watts) |
126W |
|
| Power Consumption (Stand-by) (Watts) |
Under 0.3W |
|
Design
| Colour |
Black |
|
| Stand Design |
Square |
|
| Swivel (left/right) |
90/90 |
|
Dimension
| Set Weight with Stand (kg) |
12.2 |
|
| Set Weight without Stand (kg) |
9.3 |
|
| Set Dimension with Stand (WxHxD) |
928.2 x 612.0 x 227.7mm |
|
| Set Dimension without Stand (WxHxD) |
928.2 x 543.8 x 49.6mm |
|
Mechanical Specification
| VESA Mount (mm) |
200 x 200 |
|
| VESA Screw Size |
M8 |
|
Accessory
| Remote Controller Model |
TM1240 |
|
| Battery (for Remote Control) |
Yes |
|
| Power Cable |
Yes |
|
| Stand Mount Kit |
Yes |
|
| Quick Install Guide |
Yes |
|
Hospitality Feature
| Samsung LYNK SINC Compatibility |
Yes |
|
| H Browser Compatibility |
Yes |
|
| Samsung LYNK REACH |
Yes |
|
| Samsung LYNK REACH Server Compatibility |
Yes |
|
| Music Mode (Input: PC/AV/Component) |
Yes |
|
| Music Mode Backlight on/off |
Yes |
|
| Hospitality Plug&Play (Easy Setup) |
Yes |
|
| My Channel |
Yes |
|
| RJ12/IR Pass Through |
Yes |
|
| Power On Status Setting (Keycard/Master Power off) |
Yes |
|
| Jack Pack Compatiblity |
Yes |
|
| USB Cloning |
Yes |
|
| Logo Display with Time out Setting(BMP/Movie) |
Yes |
|
| Welcome Message |
Yes |
|
| Auto Source Mode |
Yes |
|
| Energy saving mode (BLU Control) |
Yes |
|
| Multi Code Remote |
Yes |
|
| Screwed Remote Battery Cover |
Yes |
|
| Alarm Key |
Yes |
|
| Variable Audio Output |
Yes |
|
| Hotel Channel List |
Yes |
|
| Mixed Channel List (DVB T/C, Analog) |
Yes |
|
| Smoovie Compatibility |
Yes |
|
| Soundbar Compatibility |
Yes |
|
Eco
| Intelligent Light Sensor |
Yes |
