All stock codes associated to this product
SSTST60FESB, SST-ST60F-ESB
SF60F-ESB

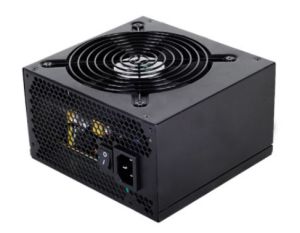

Power for everything you need Strider Essential 600W
24/7 Continuous power output with 40C operating temperature.
INTRODUCTION
After successfully serving enthusiasts for years, the Strider Essential series has proven quality and dependable PSUs can indeed be had at affordable prices. So to further improve value for users looking to build great performing PCs, SilverStone has released the Strider Essential Bronze ST70F-ESB and ST60F-ESB PSUs to the series.
The two newly redesigned 700w and 600w PSUs retain all essential features such as single +12V rail, multiple circuit protection and useful 8pin/6pin PCI-E connectors to support various mainstream graphic card designs. With its upgraded 80 PLUS Bronze efficiency and the ability to provide 24/7 continuous output, the Strider Essential Bronze PSUs are solid choices for PC builders.
FEATURES
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 40? operating temperature
- Class-leading single +12V rail
- Multiple protection circuitry

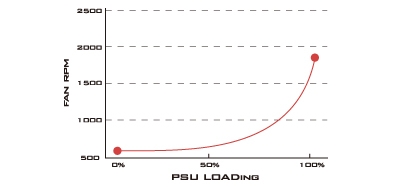

- Silent running 120mm fan with 18dBA
- PCI-E 8pin and PCI-E 6pin connectors support
- ATX 12V 2.3 support
- Active PFC

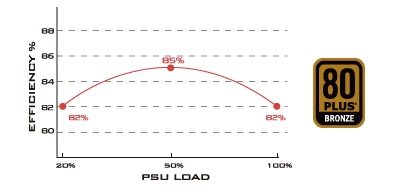

Designed for 80 PLUS Bronze level of efficiency to reduce wasted heat and save on electricity
Specifications
|
Model No.
|
SST-ST60F-ESB
|
|
Max. DC Output
|
600W
|
|
Load Range
|
|
|
+3.3V |
+5V |
+12V1 |
+12V2 |
+12V3 |
+12V4 |
+5VSB |
-12V |
-5V |
|
|
22A |
22A |
45A |
/ |
/ |
/ |
2.5A |
0.3A |
/ |
|
|
/ |
/ |
/ |
/ |
/ |
/ |
3.5A |
/ |
/ |
|
|
0.1A |
0.2A |
0.6A |
/ |
/ |
/ |
0A |
0A |
/ |
|
|
5% |
5% |
5% |
/ |
/ |
/ |
5% |
10% |
/ |
|
|
1% |
1% |
1% |
/ |
/ |
/ |
1% |
1% |
/ |
|
|
50mV |
50mV |
120mV |
/ |
/ |
/ |
50mV |
120mV |
/ |
|
|
combined +3.3, +5V
|
120W
|
|
combined +12V
|
540W
|
|
Input Voltage
|
103.5 ~ 253 Vrms
|
|
Input Frequency Range
|
47Hz ~ 63Hz
|
|
PFC
|
Active PFCPF>0.95 at Full Load
|
|
Efficiency
|
82%~85% @ 20% ~ 100% loading
|
|
MTBF
|
100,000 hours
|
|
Operating temperature
|
0C ~ 40C
|
|
Protection
|
Over current protection
Over power protection
Over voltage protection
Under voltage protection
Over temperature protection
Short circuit protection
|
|
Connectors
|
1 x 24 / 20-Pin motherboard connector500mm
1 x 8 / 4-Pin EPS / ATX 12V connector550mm
1 x 8/6-Pin PCIE connector500mm
3 x 6-Pin PCIE connector500mm / 150mm
6 x SATA connector"500mm / 150mm / 150mm / 150mm" x 2
3 x 4-Pin Peripheral connector 600mm / 150mm / 150mm
1 x 4-Pin Floppy connector500mm / 150mm / 150mm / 150mm
|
|
Color
|
BlackLead-Free Paint
|
|
Cooling System
|
Single 120mm silent fan
|
|
Noise Level
|
18 dBA minimum
|
|

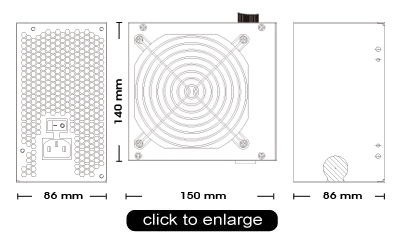

Dimension
|
150 mm (W) 86 mm (H) 140 mm (D)
|
|
Weight
|
1.75kg
|
|
Form factor
|
ATX
|
|
Certification
|
80 PLUS Bronze
|
|
Other
|
GPU Support list
Haswell CPU support
|
