Swann DVR8-4200 (1000GB HDD) 8 Channel 960H Digital Video Recorder & 8 x PRO-535 Cameras - Widescreen DVD-quality 960H Resolution, 650 TV Line Camera Resolution, H.264, 82FT/25M Night Vision - Black

IMG 1 of 6
No Longer Available
Part Number:
314017
(?) Brand:
Swann
Manuf No:
2418204
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
SWDVK842008FAU, SWDVK-842008F-AU, 2418204, 815849016866

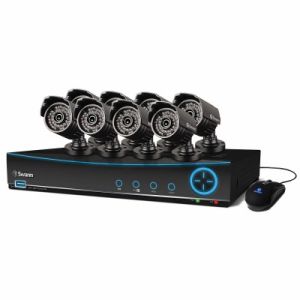

DVR8-4200 8 Channel 960H Digital Video Recorder & 8 x PRO-535 Cameras


SWDVK-842008F

8 Channel 960H Digital Video Recorder with pre-installed 1TB HDD / 8 x 650 TVL line Cameras / H.264 latest recording technology / HDMI Output / Web and Smartphone remote viewing / Transfer incidents to USB flash drive
Wider, clearer DVD-quality protection for your home or business 24/7.


Widescreen DVD-quality 960H Resolution


8 Channels View & Record


Pre-installed 1TB Hard Drive


650 TV Line Camera Resolution


59 Viewing Angle


BNC Cable Connection


Includes 8 Cameras


View Remotely on your Smartphone or Tablet


82ft / 25m Night Vision

Product Description

  • Swanns TruBlue blue-lit 960H DVR with real time, widescreen high resolution live video viewing & playback, perfect for 16:9 monitors
  • Includes 8 x high resolution 650TVL cameras with powerful night vision to 82ft/25m for indoor/outdoor use
  • Set & forget by recording continuously from 8 channels for 30 days+ onto a 1TB hard drive, even longer with motion detection for extra capacity connect external hard drive to eSATA port
  • Save time & have peace of mind by easily locating incident video, then transfer to external storage via USB or network
  • View live or playback in high resolution on your HDTV, LCD or plasma TV using HDMI connection or on LCD screen via VGA port
  • Setting up remote viewing has never been easier with Swanns My DVR customizable network configuration & DDNS service
  • Surveillance in the palm of your hand with live viewing on 3G/4G-enabled Smartphone & tablets including, iPhone, iPad, Android devices, BlackBerry devices and more* using the free SwannView app
  • A cutting-edge solution for any home or business wanting high resolution video monitoring

30 days recording achieved using lower settings, default settings give 6 days recording
Mobile phones not included, check the website for the latest models Not all handset models supported
Applies to modems that have UPnP function

Specifications

DVR8-4200

Video

Video Format
NTSC or PAL

Video Inputs
960H 8 Channels BNC

Video Outputs
VGA and HDMI Output

Display Resolution
Up to 1080p

Display Frame Rate
NTSC: 30fps per channel / PAL: 25fps per channel

Audio

Audio Input
4 RCA Input

Audio Output
1 RCA Output

Recording

Compression Format
H.264

Recording Resolution
NTSC: 960H (960 x 480) PAL: 960H (960 x 576)

Recording Frame Rate
Real Time: NTSC: Global 240fps / 30fps per Channel
PAL: Global 200fps / 25fps per Channel

Recording Modes
Manual / Schedule / Motion

HDD Interface / Memory Type
1TB SATA2 HDD (installed)

Hard Drive Support
Up to 2TB SATA2 HDD

Network

LAN Connection
One RJ45 Port

Network Protocol
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP

Dynamic DNS
Yes (swanndvr.net, DYNDNS)

Remote Operation
IE, MyDVR, CMS, SwannView

General

Operating Power
DC 12V

Dimensions
10.23” x 8.46” x 1.97” / 260mm x 215mm x 50mm

Weight
3.1lbs / 1.4kg

Back-up Method
External storage via USB or network

Mouse Support
Yes

Remote Control
Yes (uses 2 x AAA, included)

PRO-535 Camera

Video

Image Sensor
CMOS

Video Quality
650 TV Lines

Pixels
NTSC: 720x480
PAL: 720 X 576

Minimum Illumination
0 Lux (IR on)

Day/Night Mode
Color during day / switches to B&W at night

Electronic Shutter
Automatic

White Balance
45dB

Gain Control
Automatic

Backlight Compensation
Yes

Lens
3.6mm

Viewing Angle
59 degrees

Night Vision

Night Vision Distance
Up to 82ft/25m

IR cut Filter
Yes

Number of Infra-Red LEDs
36

Infra-Red Wavelength
850nm

Infra-Red LED Life (average)
10,000 hours

General

Indoor / Outdoor
Indoor or outdoor, IP67 rated

Operating Power
DC 12V

Operation Temperature
-4 F ~ 140 F / -20 C ~ 60 C

Body Construction
Aluminum

Camera & Stand Dimensions
3.7x 2.0 x 3.4 / 96mm x 53mm x 85mm

Camera & Stand Weight
0.67lbs / 305g

Cable Length
60ft / 18m

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
