ST70F-ESG
The Essential Gold Standard

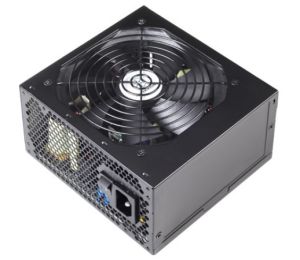

Strider Essential Gold 700W
24/7 Continuous power output with 40C operating temperature
INTRODUCTION
SilverStone Essential Gold are PSUs with 80 PLUS Gold certification within the affordable Strider Essential series. They retain practical and reliable fixed-cable layout from other Strider Essential PSUs and adhere to the same outstanding characteristics from all Strider series PSUs with no comprise in quality and reliability.
The 80 PLUS Gold certification ensures that Strider Essential Gold PSUs produce 40% less wasted heat from energy conversion compared to PSUs with basic 80 PLUS certification for lower burden on cooling and electricity consumption. In addition, features from higher-level Strider series such as ±3% voltage regulation, high amperage single +12V rail design and multiple GPU support are also preserved to provide the best quality solutions at any price.
SPECIAL FEATURES
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40? operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Multiple protection circuitry
- PCI-E 8pin and PCI-E 6pin connectors support
- Built-in silent & durable hybrid ceramic bearing (HYB) fan
- Active PFC

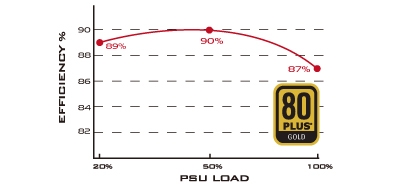

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

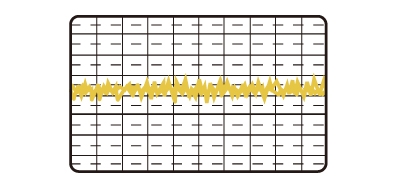

3% regulation and low ripple & noise performance for high stability.

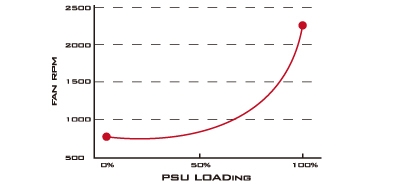

Built-in hybrid ceramic bearing (HYB) fan has lower noise and high durability, perfect for important home and office use.
Specifications
|
Model No.
|
SST-ST70F-ESG
|
|
Max. DC Output
|
700W
|
|
Load Range
|
|
|
+3.3V |
+5V |
+12V1 |
+12V2 |
+12V3 |
+12V4 |
+5VSB |
-12V |
-5V |
|
|
25A |
25A |
56A |
/ |
/ |
/ |
3A |
0.3A |
/ |
|
|
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|
|
0.2A |
1A |
1A |
/ |
/ |
/ |
0A |
0A |
/ |
|
|
3% |
3% |
3% |
/ |
/ |
/ |
5% |
10% |
/ |
|
|
1% |
1% |
1% |
/ |
/ |
/ |
1% |
2% |
/ |
|
|
50mV |
50mV |
120mV |
/ |
/ |
/ |
50mV |
120mV |
/ |
|
|
combined +3.3, +5V
|
160W
|
|
combined +12V
|
672W
|
|
Input Voltage
|
90 ~ 264 Vrms
|
|
Input Frequency Range
|
47Hz ~ 63Hz
|
|
PFC
|
Active PFCPF>0.95 at Full Load
|
|
Efficiency
|
87%~90% @ 20% ~ 100% loading
|
|
MTBF
|
100,000 hours
|
|
Operating temperature
|
0C ~ 40C
|
|
Protection
|
Over current protection
Over power protection
Over voltage protection
Under voltage protection
Over temperature protection
Short circuit protection
|
|
Connectors
|
1 x 24-Pin motherboard connector500mm
1 x 8 / 4-Pin EPS / ATX 12V connector600mm
4x 8/6-Pin PCIE connector500mm / 150mm x 2
1 x SATA connector550mm
4 x SATA connector550mm / 50mm / 50mm / 50mm
4 x SATA connector550mm / 155mm / 155mm / 155mm
3 x 4-Pin Peripheral connector 705mm / 155mm / 155mm
1 x 4-Pin Floppy connector705mm / 155mm / 155mm / 100mm
|
|
Color
|
BlackLead-Free Paint
|
|
Cooling System
|
Single 120mm HYB fan
|
|
Noise Level
|
18 dBA minimum
|
|
Dimension
|
150 mm (W) 86 mm (H) 140 mm (D)
|
|
Weight
|
1.95kg
|
|
Form factor
|
ATX
|
|
Certification
|
80 PLUS Gold
|
|
Other
|
GPU Support list
Haswell CPU support
|
