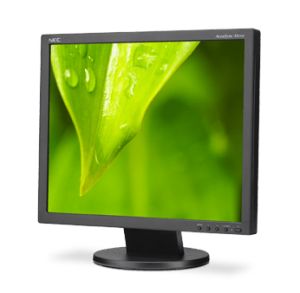

NEC AS193i-BK LCD Monitor - Black
  • 19"LED-Backlit, IPS Panel, 5;4, 14ms, 1280x1024, 1000;1, 250cd/m2, VGA, DVI

IMG 1 of 1
No Longer Available
Part Number:
314198
(?) Brand:
NEC
Manuf No:
AS193i-BK
AS193iBK
Shipping Weight:
7 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
AS193iBK, AS193i-BK, 13NECAS193IBK, 13NEC-AS193IBK, 805736047967
19" Value LED-Backlit Desktop Monitor w/ IPS Panel

MODEL: AS193i-BK

Maximize your budget with the 19 NEC AccuSync AS193i, an LED-backlit IPS LCD desktop monitor that enhances desktop computing with eco-friendly benefits. The latest addition to the NEC AccuSync Series, this value-driven model touts features such as an IPS panel for outstanding image performance, ECO Mode to extend the life of the display, tilt adjustability and Intelligent Power Manager. The AS193i is mercury-free, consumes little power and generates very little heat. Additional benefits include a carbon footprint meter and Rapid Response technology, both of which make this model ideal for classrooms and small-to-medium-sized business environments.

  • IPS active matrix LCD provides superior screen performance, including wide viewing angles and lifelike flesh tones
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • Ambix dual-input technology allows for digital/analog compatibility with upgraded video cards and software as well as connection to two systems
  • Rapid Response technology delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video
  • ECO Modefunction helps save power, reduce heat and extend the life of the display by allowing you to dim the backlight
  • Intelligent Power Manager (IPM) system and off timer provide innovative power-saving methods and reduce CO2 emissions by shifting to a lower power consumption level or automatically powering down when the monitor is on but not in use
  • Carbon footprint meter helps track and calculate the reduction of green gas emissions
  • Compact packaging helps reduce paper usage, shipping costs and waste

Product Specifications



Display




Panel Technology IPS

Viewable Image Size 19"

Aspect Ratio 5:4

Native Resolution 1280 x 1024

Pixel Pitch 0.29mm

Pixels Per Inch 86@ native resolution

Backlight Type W-LED

Brightness (typical) 250cd/m2

Contrast Ratio (typical) 1000:1

Viewing Angle (typical) 178 Vert., 178 Hor. (89U/89D/89L/89R) @ CR>10

ResponseTime (typical) 14ms

Displayable Colors More than 16.7 million





Synchronization Range




Horizontal (Analog/Digital) 31.5-81.1 kHz

Vertical 56-76 Hz





Input Signal




Video Analog RGB 0.7 Vp-p/75 Ohms

Sync Separate Sync: TTL Level (Positive/Negative)
Composite Sync: TTL Level (Positive/Negative)
Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)




Input Connectors



DVI-D, VGA 15-pin D-sub




Power Consumption (typical)




On 18W

Power Savings Mode .15W





Physical Specifications




Dimensions (WxHxD)

Net (with stand) 16.2 x 15.9 x 8.1 in. / 412.5 x 403.1 x 205.1mm

Net (without stand) 16.2 x 13.4 x 2.7 in. / 412.5 x 341.2 x 69mm


Weight



Net Weight (with stand) 8.6 lbs. / 3.9 kg

Net Weight (without stand) 7.5 lbs. / 3.4 kg





VESA Hole Configuration Specifications



100 x 100mm




Environmental Conditions




Operating Temperature 41-95F / 5-35C

Operating Humidity 20-80%

Operating Altitude 6562 ft. / 2000m

Storage Temperature 14-140F / -10-60C

Storage Humidity 10-85%

Storage Altitude 40,000 ft. / 12,192m





Environmental Compliance




ENERGY STAR 6.0

TCO 6.0

EPEAT Silver

RoHS Yes




Limited Warranty (parts & labor, including backlight)



3 years
Additional Features

  • ECO Mode
  • Carbon footprint meter
  • Thin frame
  • Tilt
  • Rapid Response
  • Ambix
  • XtraView
  • OSD user controls
  • NaViSet software
  • Cable management
  • VESA mount
  • HDCP
  • DDC/CI
  • No Touch Auto Adjust
  • Plug and Play (VESA DDC 2B)
  • VESA DPMS power management
  • AccuColor color control
  • Digital smoothing
  • Digital controls
  • ISO 9241-307 Class I
