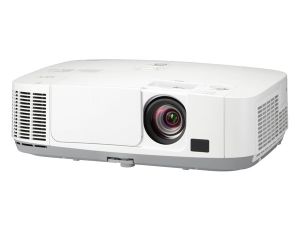

NEC Professional Installation Projector: P501XG
Ideal for corporate boardrooms, higher education classrooms and government training rooms, this model delivers remarkable brightness (5000 lumens) and features built-in wall colour correction, wired and optional wireless networking, closed captioning and up to 6000 hours of lamp life (in ECO Mode™). The P501XG touts an active lens cover, which hides content, mutes audio and lowers lamp brightness to 25%, allowing you to maximise the effectiveness of your presentations.
P501XG at a glance
- Dual HDMI inputs (with HDCP) ensures quick switching between presentations
- 4000:1 Contrast Ratio creating extremely detailed images
- Four audio inputs make it easy to add sound to enhance every presentation
- Powerful 16W speakers provide volume needed for large rooms
- Built in cornerstone correction including Pincushion and Barrel correction, 6000-hour filter drastically reduces cleaning frequency, thereby decreasing the total cost of ownership
- Variable audio-out allows the remote control to adjust speaker volume
- Vertical lens shift enables flexible projector placement
- IEU Lite (Image Express Utility Lite) for audio and video transmission from a computer to the projector over the network.
Specifications
Display
3 x 1.6 cm (0.63") LCD Panel with SMLA
Native Resolution
1024 x 768 (XGA)
Aspect Ratio
4:3
Contrast Ratio 1
4000:1
Brightness 1
5000 High Bright / 4000 Normal / 3000 Eco ANSI Lumens
Lamp
270 W UHP AC
Lamp Life [hrs]
6000 Eco / 4000 Normal / 3500 High Bright Mode
Lens
F= 1.7–2, f= 17.4–29 mm
Lens shift
Vertical lens shift 0 - 0.5
Keystone correction
Manual H/V +/-30°
Projection Factor
1.3 – 2.2 : 1
Projection Distance [m]
0.6 – 13.8
Screen Size (diagonal) [cm]
Minimum: 64 / 25"; Maximum: 762 / 300"
Zoom
1 - 1.7
Focus Adjustment
Manual
Supported Resolutions
Up to 1920 x 1200 (WUXGA)
Frequency
Horizontal: 15–100 kHz (RGB: 24 kHz); Vertical: 50 – 120 Hz
Connectivity
RGB (analog)
Input: 1 x Mini D-sub 15 pin
Output: 1 x Mini D-sub 15 pin
HDMI™
Input: 2 x HDMI™ (Deep Color, Lip sync) with HDCP
Video
Input: 1 x RCA
S-Video
Input: 1 x Mini DIN 4-pin
Audio
Input: 1 x 3.5 mm Microphone Jack; 1 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio; 1 x RCA Stereo for Video and S-Video
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
PC Control
Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN
1 x RJ45
USB
1 x Type B; 2 x Type A (USB 2.0 high speed)
Video Signals
PAL; PAL60; NTSC 3.58; SECAM; NTSC 4.43; PAL-N; PAL-M
Remote Control
Remote Control
Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Keystone Correction ; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select
Electrical
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption [W]
357 (High Bright ) / 292 (Normal) / 248 (Eco) / 10 (Stand-by) / 2.8 (Network Stand-by) / 0.4 (Power Savings Mode)
Mechanical
Dimensions (W x H x D) [mm]
398 x 115 x 282 (without lens and feet)
Weight [kg]
4.1
Fan Noise [dB (A)]
30 / 37 (Eco / Normal)
Ergonomics
Safety and Ergonomics
CE; ErP; TÜV GS; RoHS ; Gost-R; IEC60950-1. Meets AS/NZS CISPR.22 Class B
Speakers [W]
1 x 16 (mono)
Warranty
Projectors
Lamp
6 months, max. 2000 hrs
Shipping Contents
Shipping Contents
Projector; IR Remote Control (RD-448E); Mini D-SUB Signal Cable (1.8 m); Power Cord (1.8 m); Utility software; Security Sticker; Users Manual; Quick Setup Guide
*Compliance with ISO21118-2005
Technologies
AutoKeystone Correction
Instantly projects a square image even when the projector is set up at a steep offset angle to the screen.
Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
Built-In Closed Captioning
Enables decoding and display of text information from a video.
Carbon Savings Metre
Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
ECO Mode™
Extends lamp life, lowers audible noise and reduces total cost of ownership.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
16W Audio
Provides the volume needed for large rooms
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.
High Contrast Ratio (4000:1)
Enables dynamic presentations while bringing extreme definition to all inputs
Image Express Utility Lite with audio transfer
Provides wired and wireless data transmission via peer-to-peer or over the network
