GVC301

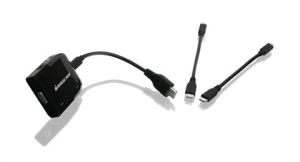

HD to VGA Adapter with Audio, with 3 HD Cables for Phone, Tablet and Computer
GVC301
Description
IOGEAR's GVC301 is a high performing single port HD to VGA converter which allows you to connect your HD enabled device and output to an analog VGA display with support for analog and digital (optical) TOSlink audio out. Convenient compact size makes it an easy fit to any solution set up.
Includes 3 HD cables for Phone, Tablet and Computer:
- 1 x Micro HD Type D to HD TypeD Cable
- 1 x Micro HD Type D to HD Type C Cable
- 1 x Micro HD Type D to HD TypeA Cable
Great for commercial and home applications where older projectors, monitors and analog devices are being used.
Meeting rooms - Conference rooms - Presentations - Demo stations - Kiosks - Living rooms - Studios
Features

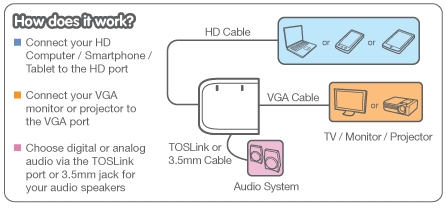

- Connects a digital HD source to an analog VGA display with digital and analog audio support
- Works with Laptops / Computers, Tablets, smartphones and other HD devices
- Audio support with analog and digital (optical) connections for 2.1 stereo audio
- 3.5mm jack
- TOSLink (optical)
- Supports Analog Video output up to UXGA and 1080p
- Supports pixel clock rate from 25MHz to 165MHz
- Includes 3 HD cables to fit most HD devices - Micro HD Type D to HD Type A, C and D cables
- Plug-n-Play easy set up
Warranty: 3-YEAR
Requirements
System
- Windows XP, Windows Vista (32 / 64-bit), Windows 7
Media Source
Display
Audio
- 3.5mm Audio
- TOSLink (optical)
Package Contents
- 1 x HD to VGA Adapter with Audio
- 1 x Micro HD Type D to HD Type A Cable
- 1 x Micro HD Type D to HD Type C Cable
- 1 x Micro HD Type D to HD Type D Cable
- 1 x 3.5mm M to M audio cable (1.8m)
- 1 x USB to DC Cable
- 1 x Quick Start Guide
- 1 x Warranty Card
Specifications
UPC: 881317509673
| Function |
GVC301 |
| Connectors (Input) |
Standard HDMI (A-Type HDMIl) |
| Connectors (Output) |
VGA Connector (female), 1x 3.5mm stereo jack (female), TOSlink out port |
| Frequency |
Pixel clock rate from 25 MHz to 165 MHz |
| Power Adapter |
5V/1A DC |
| Power Consumption |
320mA, 1.6 Watts |
| Resolution |
Resolutions Supported: 1920 x 1080, 1680 x 1050, 1600 x 1200,1440 x 900 |
| Dimensions |
GVC301 |
| Unit Dimensions |
| Height |
0.7in |
| Depth |
1.77in |
| Length |
1.85in |
| Unit Package Dimensions |
| Width |
7.5in |
| Height |
5.5in |
| Depth |
1.75in |
| Master Carton |
| Width |
12.25in |
| Height |
11.5in |
| Depth |
13.75in |
| Master Carton Qty. |
24 |
| Weight |
| Master Carton Wt. |
13.9lbs |
| Unit Pack Wt. |
.55lbs |
| Unit Wt. |
1.59 oz. |
