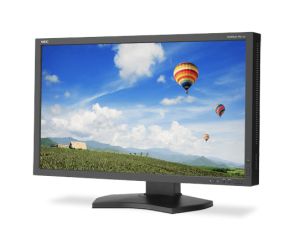

27” Color Accurate Desktop Display (Black)
MODEL: PA272W-BK
Color accuracy that you can trust. The 27” MultiSync PA272W-BK is the new benchmark desktop display for color accurate applications. The innovative GB-R LED backlight provides 99.3% coverage of the Adobe RGB color space while consuming up to 37% less power than comparable CCFL backlights. Utilizing a high performance AH-IPS LCD panel and backed by a 4 year warranty with Advanced Exchange, the MultiSync PA272W-BK will reliably deliver high quality, accurate images simply and beautifully.
- GB-R LED backlight consumes 37% less power than a comparable CCFL backlight
- 99.3% coverage of AdobeRGB color space
- Superior screen performance (1000:1 contrast ratio, 2560x1440 native resolution, 340cd/m2 brightness)
- 14-bit 3D internal programmable lookup tables (LUTs) for calibration
- Picture in Picture and Picture by Picture modes increase productivity by displaying two sources simultaneously
- MultiProfiler software provides complete control over the five picture modes, including the loading of any ICC profile directly into the monitor for optimal color space matching
- DisplaySync ProTM controls two computers with only one keyboard and mouse
- Wide connectivity includes both regular and Mini DisplayPort with 10-bit support, 10-bit HDMI, a DVI-D input as well as a USB hub
- DisplayPort cable compatibility notice
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations
- Available with SpectraViewII Color Calibration Kit (PA272W-BK-SV)
- Available in white (PA272W)
Technologies
3D LUT
Internal 14-bit programmable 3D lookup tables (LUTs) allow the display of 1.07 billion colors out of a palette of 4.3 trillion (with 10-bit DisplayPort input) for accurate color, smooth images and hardware calibration.
Ambix4™
Allows up to four inputs (DisplayPort, VGA and two DVI-D) to be connected to a single monitor and for each of the four signals to be displayed with the press of a button.
XtraView+™
Delivers wide viewing angles of up to 178º horizontally and vertically (up to 89º up, down, left and right) with less color shift and without any glare, reflection or distortion.
Rapid Response™
Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.
AmbiBright™
Automatically adjusts the backlight depending on the brightness of ambient lighting conditions. It also tells the monitor to enter power saving mode whenever the ambient lighting falls below a predetermined value (like when lights are shut off at the end of the day), which can significantly reduce energy consumption.
CableComp™
Equalizes the video signal to eliminate color halos on long cable runs.
Digital Uniformity Compensation
Reduces screen uniformity errors and compensates for differences in color/grayscale and luminance using new signal processing circuitry.
DisplaySync Pro
DisplaySync Pro is a type of KVM (keyboard, video, mouse) switch. It allows multiple computers to be connected to the monitor through USB and share the attached USB devices, such as a keyboard and mouse, saving desktop space and increasing productivity.
MultiSync P/PA Series Picture in Picture
Displays a either second video source or the same video source in an adjustable sub-window over the main video source. The Picture in Picture window can display the video source in the same or an alternate color space.p
MultiSync P/PA Series Picture by Picture
Displays a either second video source or the same video source in an window beside the main video source. The Picture by Picture window can display the video source in the same or an alternate color space.
Product Specifications
| Display |
| |
| |
| |
| |
| Panel Technology |
AH-IPS |
| |
| Viewable Image Size |
27" |
| |
| Aspect Ratio |
16:9 |
| |
| Native Resolution |
2560 x 1440 |
| |
| Pixel Pitch |
0.23mm |
| |
| Pixels Per Inch |
109@ native resolution |
| |
| Backlight Type |
GB-R LED |
|
|
| Brightness (typical) |
340cd/m2 |
| |
| Contrast Ratio (typical) |
1000:1 |
| |
| Viewing Angle (typical) |
178 Vert., 178 Hor. (89U/89D/89L/89R) @ CR>10 |
| |
| ResponseTime (typical) |
6ms |
| |
| Color Gamut |
|
|
| Adobe RGB Coverage/Size |
99.3% / 108.6% |
| |
| NTSC Coverage/Size |
94.8% / 103.7% |
| |
| sRGB Coverage/Size |
146.4% / 100% |
| |
|
| |
|
| Lookup Table |
14-bit (3D) |
| |
| Displayable Colors |
1.07 billion out of 4.3 trillion |
|
| Synchronization Range |
| |
| |
| |
| |
| Horizontal (Analog/Digital) |
31.5-96.5 kHz (Digital only) |
| |
| Vertical |
50-85 Hz |
|
| Input Connectors |
| |
| |
| |
| DisplayPort, Mini DisplayPort, HDMI, DVI-D Dual Link, USB hub (2 up/ 3 down) with DisplaySync Pro |
| |
| |
| Power Consumption (typical) |
| |
| |
| |
| |
| On |
73W |
| |
| Power Savings Mode |
1W |
| |
|
| |
| |
| Physical Specifications |
| |
| |
| |
| |
| Dimensions (WxHxD) |
|
|
| Net (with stand) |
25.2 x 15.6-21.5 x 9.3 in. / 640.4 x 396.2-546.2 x 235.5mm |
| |
| Net (without stand) |
25.2 x 14.9 x 3.3 in. / 640.4 x 378.6 x 85mm |
| |
|
| |
|
| Weight |
|
|
| Net Weight (with stand) |
28.4 lbs. / 12.9 kg |
| |
| Net Weight (without stand) |
19.6 lbs. / 8.9 kg |
| |
|
| |
|
|
| |
| |
| VESA Hole Configuration Specifications |
| |
| |
| |
| 100 x 100mm, 200 x 100mm |
| |
| |
| Environmental Conditions |
| |
| |
| |
| |
| Operating Temperature |
41-95F / 5-35C |
| |
| Operating Humidity |
20-80% |
| |
| Operating Altitude |
16,404 ft. / 5000m |
| |
| Storage Temperature |
14-140F / -10-60C |
| |
| Storage Humidity |
10-85% |
| |
| Storage Altitude |
40,000 ft. / 12,192m |
| |
|
| |
| |
| Limited Warranty (parts & labor, including backlight) |
| |
| |
| |
| 4 years |
| Additional Features |
| |
| |
| |
- ECO Mode
- Carbon footprint meter
- Thin frame
- Tilt
- Swivel
- Pivot
- Height-adjustable stand with locking base
- Quick release stand
- Carrying handle
- Rapid Response
- Ambix4
- XtraView+
- OSD user controls
- MultiProfiler software
- USB hub (2 up/3 down) with DisplaySync Pro
- Cable management
- Touch-integratable
- VESA mount
- HDCP
- DDC/CI
- 14-bit 3D LUT
- Digital Uniformity Correction
- Black Level adjustment
- AmbiBright
- Wide Color Gamut
- Adobe RGB
- CableComp
- TileMatrix
- TileComp
- GammaComp MD QA software
- SpectraView software-ready
|
|
|
| Ships With |
| |
| |
| |
- Power cable
- Mini DisplayPort to DisplayPort cable
- DVI cable
- USB cable
- Mounting Screws
|
| |
| |
| Accessories |
| |
| |
| |
| |
| Optional |
- SpectraViewII Color Calibration Kit (SVII-PRO-KIT)
- Color calibration sensor (MDSVSENSOR3)
- SpectraView software (SVIISOFT)
- Hood (HDPA27)
- 2W USB sound bar (SOUNDBARPRO)
|
|
