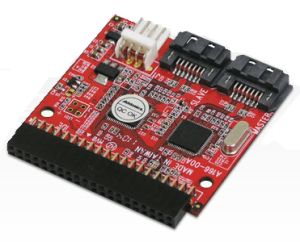

Addonics ADEBIDE2SA Embedded IDE - Dual SATA Port Converter

IMG 1 of 1
No Longer Available
Part Number:
315143
(?) Brand:
Addonics Web Site
Manuf No:
ADEBIDE2SA
Shipping Weight:
0.35 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ADEBIDE2SA
Embedded IDE - Dual SATA Port Converter

ADEBIDE2SA

Overview

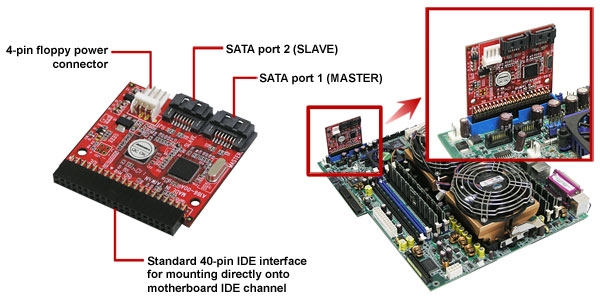

The Embedded IDE- Dual SATA Port Converter instantly turns a standard 40-pin IDE port into two SATA ports. Installation is simple, simply the IDE side of the converter directly onto the IDE channel of the motherboard on your system. There is no software or driver to install. Once installed, any SATA storage devices such as HDD, SSD or optical drives can be connected to the system as if they were ordinary IDE or ATAPI devices. It is the perfect solution for legacy equipment without any SATA ports or for adding more SATA ports via the IDE ports that are commonly found on many systems.


 Features

  • Connect up to two SATA hard drives, SSD, or optical drives or a combination directly into IDE channel on motherboard
  • Two SATA ports for Master and Slave positions on IDE channel
  • Embedded IDE connector for direct mount onto motherboard
  • No drivers required
  • Simple plug and play, no drivers required
  • Bootable
  • OS independent
Specifications

  • Support ATA 33/66/100/133
  • 48 bits LBA. Support large hard drives of 137 GB or larger with one partition
  • Support SATA I / II / III hard drive
  • Compatible with any OS (Windows, DOS, Mac, Linux, UNIX..) that supports IDE or ATAPI storage devices
  • Supports Spread Spectrum in receiver
  • Compliant with ATA specifications
  • Input: two 7-pin SATA data ports
  • Output: 40-pin IDE female connector
  • Weight: 19g (0.67 oz)
  • Operating temperature range: 0 C to +70 C
  • Operating humidity range: 5% to 90%
  • Storage temperature range: -40 C to +85 C
  • Storage humidity range: 5% - 95% (non condensing)
  • Dimensions: 2.25(W) x 2.25(D) x .3(H) in. - 57(W) x 57(D) x 8(H) mm
  • 1 year warranty

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
