All stock codes associated to this product
LS12, LS-12, 20LS12, 20LS-12, 4545350042516
Featuring a Mode Dial, Smart Mode functionality and more, it has never been easier to achieve studio-standard audio results.
Produce stunning, stereo recordings in top quality at up to 130dBspl – with the LS-12’s two high-sensitivity microphones.
Maximise the quality of your finished recording with the LS-12’s chromatic tuner, metronome and high-powered overdubbing.
Maximise the quality of your finished recording with the LS-12’s chromatic tuner, metronome and high-powered overdubbing.
Musician-friendly functions
Maximise the quality of your finished recording with the LS-12’s chromatic tuner, metronome and high-powered overdubbing.
Cutting-edge microphone system for clear and powerful sound
Produce loud, stereo recordings in top quality with acoustic resistance of 130dBspl.
The LS-12 effortlessly captures pristine, better-than-CD quality sound as linear PCM recording with up to 96kHz/24bit. This is thanks to two high-sensitivity and low-noise microphones set at 90-degree angles to allow natural and expansive stereo recording that faithfuly capture the original sound. This system is also capable of capturing pure sound of up to 130 decibels – for high-quality and immersive recordings without clipping even when recording live shows and concerts. The audio and system circuitry are separated to minimise sound degradation, while a switchable low-cut filter (100Hz/300Hz) helps you reduce unwanted background noises, wherever you’re recording.
LED flash with tempo for metronome
The tuner function lets you tune instruments with an accurate calibration and clear display.
The display visualisation can also be switched from meter to waveform type.
LED flash with tempo for metronome
Overdub recording lets you record over the original sound, while monitoring the original sound.
Tuner, metronome, overdubbing & more.
Enhance your tracks with high-powered functions specifically developed for musicians.
From the Chromatic Tuner for getting instruments in tune and the Metronome for keeping everything in time, right through to high-powered overdubbing capabilities and variable playback speed control, the LS-12 boasts a whole bunch of features that will be music to any musician’s ears. The ingenious pre-record buffer even captures several seconds of sound before you press the record button, so you never miss the beginning of a track recording. And once you’ve finished recording, the LS-12 also gives you a host of professional file management and editing options – including File Divide, Partial Erase, and Trimming capabilities.

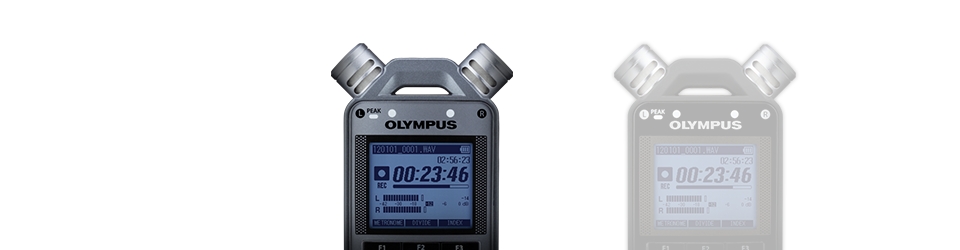

Differences between LS-12 & LS-14
| |
LS-12 |
LS-14 |
| Hardware |
|
|
| Built-in Memory |
2GB |
4GB |
| Built-in Microphone |
Stereo |
Tresmic |
|
| Functions |
|
|
| Trimming |
- |
X (PCM only) |
| Voice Guidance |
- |
X |
|
| Accessories |
|
|
| Case |
- |
X |
| Stand Clip (CL2) |
- |
X |
|
Specifications
USB functionality
-
USB Speed
USB 2.0 High Speed
-
USB Classes
-
- USB Storage class
- USB Composite device
Display
-
Display Backlit
Yes
-
Display colour
White
-
Display Type
Full Dot Matrix Display
-
Display Size
30.1 x 35.4mm / 1.83''
Recording Modes
-
Recording format
PCM / MP3
-
96kHz / 24bit
40min
-
88.2kHz / 24bit
45min
-
48kHz / 16bit
2h 10min
-
44.1kHz / 16bit
2h 20min
-
44.1kHz (Mono)
4h 40min
-
320 kbps
10h
-
256 kbps
13h
-
128 kbps
26h
-
64 kbps (Mono)
52h
-
Smart Rec
Yes
-
PCM (WAV) format
-
MP3 format
Playback Modes
-
Playback format
PCM (WAV) / MP3
Frequency response
-
96 kHz
20 - 44.000Hz
-
88.1kHz
20 - 42,000Hz
-
48kHz
20 - 23.000Hz
-
44.1kHz
20 - 21.000Hz
-
44.1kHz (Mono)
20 - 21.000Hz
-
320 kbps
20 - 20.000Hz
-
256 kbps
20 - 20.000Hz
-
128 kbps
20 - 17.000Hz
-
64 kbps (Mono)
20 - 13.000 Hz
-
MP3 format
-
PCM (WAV) format
-
Internal microphones
60 - 20.000Hz
Record function
-
Index
Yes
-
Auto recording
Pre-Recording
-
Sound control
-
- Rec Monitor
- Manual Rec level control
- Low Cut-Filter
-
Advanced recording
-
- Direct recording
- Overdubbing
Playback function
-
Gapless Playback
Yes
-
Playback control
Playback Speed Control
-
Repeat functions
Repeat playback
Other Features
-
Remote Control
Yes (optional)
-
Chromatic Tuner
Yes
-
Metronome function
Yes
Interfaces Input
-
LINE IN input level
- 6 dBv
-
PC interface
USB Cable
-
Microphone sensitivity / gain
High / Middle / Low
-
Microphone jack
3.5 mm mini-jack, impedance 2 k
-
LINE IN jack
3.5 mm jack, impedance 10 k.
Interfaces Output
-
Max. working output
300mW or more (8 speaker)
-
Maximum headphone output
2 mW + 2 mW
-
Speaker Diameter
Built-in 28 mm round dynamic speaker
-
Earphone jack
3.5 mm jack, impedance 8 or more
Dimensions
-
Weight
170g (incl. batteries)
-
WxHxD
52.5 x 138.7 x 23.5mm
Operating Systems & Requirements
Microphone System
-
TRESMIC (3 Mic System)
No
-
Max. Sound Pressure
