All stock codes associated to this product
NVS315x16, NVS315 x16, 11L315NVSLP, 4710918137816

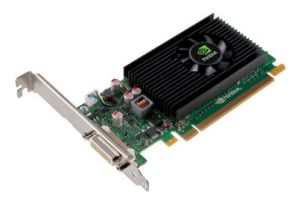

Leadtek Quadro NVS315 1GB DDR3 DMS-59 PCI-E X16
Overview
COMPATIBILITY. PRODUCTIVITY. RELIABILITY.
The new line of NVIDIA Quadro GPUs is equipped with a wide range of key features to accelerate your workflow. These features include:
THE NEW STANDARD FOR MULTI-DISPLAY COMMERCIAL GRAPHICS.
NVIDIA NVS graphics boards deliver exceptional flexibility, scalability, and compatibility that make it easy to drive any kind of multi-display installation for your business.
GET THE MOST FROM YOUR EXISTING DISPLAY INFRASTRUCTURE.
NVS boards give you incredible flexibility, regardless of display connectivity and chassis size. Drive all your DisplayPort, DVI, and VGA displays with this proven, trusted combination of hardware and software.
Boost productivity and manage your desktop more easily.
Now, you have a whole new way to gather insights faster by working with an expanded workspace. You can also interact with more visually compelling content on larger, high-resolution displays with up to 2 GB of on-board frame buffer memory.
Plus, NVIDIA nView technology lets you easily manage many windows across multiple high-resolution displays and virtual desktops with a panoramic overview of your entire workspace. You can even create profiles to save application positions across displays and desktops and re-launch them with the click of a button.
Enjoy simplified it management.
Best of all, NVS boards are designed with simplified IT management in mind, including advanced tools that make integrating and maintaining a large-scale PC deployment fast and easy.
Reliability
NVIDIA Unified Architecture
Industry's first unified architecture designed to dynamically allocate GPU resources for optimized performance
NVIDIA Unified Driver Architecture (UDA)
Part of the NVIDIA Forceware unified software environment (USE). The NVIDIA UDA guarantees forward and backward compatibility with software drivers. This simplifies upgrading to a new NVIDIA solution because the latest driver supports all current NVIDIA products.
PCI Express 2.0 Compliance
Doubles the data transfer rate up to 5 GT/sec per lane for an aggregate bandwidth of 16 GB/sec bi-directional (8 GB/sec in each direction)
Ultra-Quiet Cooling Solutions
NVS Products are built with a highly reliable, ultra-quiet fansink that efficiently cools the graphics without taxing the system fans resulting in a quieter desktop environment.
Up to 2 GB DDR3 Dedicated GPU Memory
Delivers high throughput needed to interact with large textured models or display an HD video on each of the display outputs.
Compatibility with Industry-Standard Architectures
Compatible with x86 32 and 64-bit microprocessor architectures and operating systems from Intel/AMD and Microsoft/Linux
Manageability
NVIDIA® nView® Desktop Management Software
Delivers maximum flexibility for single large-display or multi-display options. This provides unprecedented end-user control of the desktop experience for increased productivity.
Low-Profile and Flexible Form Factor
Simplifies IT administration and deployment throughout an enterprise. Regardless of desktop system (standard tower PC, workstation, small form factor system) or the display type (LCD, DLP, plasma), NVS products fit into any existing installations without being disruptive.
NVIDIA Enterprise Management Tools
Exhaustive Enterprise Management tools for maximizing your system uptime by enabling seamless wide scale deployment. Allows remote query and control of graphics and display settings for systems spread across installations
DISPLAY FEATURES
Multi-Display Experience with NVIDIA® Mosaic Technology
Enables seamless taskbar spanning as well as transparent scaling of any application across up to eight displays. Works over multiple displays or one ultra-high resolution display using a single or multiple NVS graphics cards. Mosaic Technology is supported in Win 7, Win 8 & Linux only
Versatile Display Connectivity Options
NVS provides a means to connect into the most exhaustive options of display technologies.
IMAGE QUALITY
Ultimate Image Quality
NVIDIA NVS graphics products deliver the industry's best image quality, sharpness, and pixel tracking for both analog and digital LCDs, DLPs, and plasma displays with resolutions up to 3840x2160.
NVIDIA High-Definition Video Technology
Combines high-definition video processors and software that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for SD and HD video content. Features include, high-quality scaling, spatial temporal de-interlacing, inverse telecine and high quality HD video playback—with low CPU utilization and power consumption.
Microsoft Windows 7 and 8 Support
Support for next-generation operating system that will mark a dramatic improvement in the way the OS takes advantage of the graphics processing unit (GPU) to provide a more compelling user experience. By taking advantage of the GPU for both graphics and computing, Windows 7 and 8 will not only make today's PCs more visual and more interactive but also ensure that they have the speed and responsiveness customers want.
Power Management and Performance
EnergyStar Enabling Design
Enables EnergyStar compliance with low maximum and low idle power levels
Intelligent Power Management
Reduces overall system energy costs by intelligently adapting the total power utilization of the graphics subsystem based on the applications being run by the end user. This power-optimized design helps reduce Total Cost of Ownership (TCO) and increase reliability.
NVIDIA® CUDA®
Parallel-computing architecture that enables dramatic increases in computing performance by harnessing the power of the GPU (graphics processing unit) to accelerate web, photo, video applications, as well as next-generation Internet technologies.
Specifications
| Bus Interface |
PCI Express x16 |
| Memory Size |
1024 MB DDR3 |
| Memory Interface |
64-bit |
| Memory Bandwidth |
14 GB/s |
| Form Factor |
SFF |
| CUDA Processor Cores |
48 |
| Display Connectors |
DMS59 |
| Accessories |
DMS59-DVI x 1
DVI-VGA x 2
LP bracket x 1 |
| Max. Displays per Board |
2 |
| Max Digital Display Support |
DisplayPort : 2560x1600
DVI-I : 1920x1200 |
| Max Analog Display Support |
2048x1536 (VGA) |
| OpenGL |
4.1 |
| DirectX |
11 |
| Shader Model |
5 |
| CUDA enabled |
Yes |
| Power & Cooling |
19.5W - Active5 |
| nView Enabled |
Yes |
| DisplayPort Links |
26 |
| DVI Links |
27 |
| Analog Displays VGA |
28 |
| DisplayPort 1.2 Support |
Yes |
| Max Displays in DP 1.2 MST node |
2 |
| Max Displays in DP 1.2 Stream Cloning mode |
8 |
