B96

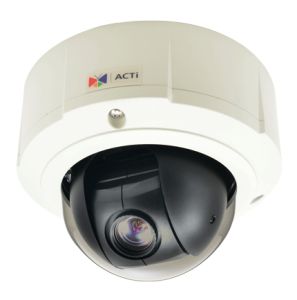

5MP Outdoor Mini PTZ with D/N, Basic WDR, 10x Zoom lens
Main Features
- 5 Megapixel with 1080p
- Day & Night
- 10x Zoom Lens with f4.9-49mm/F1.8-3.0, DC iris, Auto Focus
- Basic WDR (69 dB)
- 30 fps at 1920 x 1080
- Pan & Tilt
- Weatherproof (IP66) and Vandal Proof (IK10)
PRODUCT SPECIFICATION
Device
Device Type: Outdoor Mini PTZ Camera
Image Sensor: Progressive Scan CMOS
Sensor Size: 1/3.2''
Day / Night: Yes
Superior Low Light Sensitivity: No
Minimum Illumination: Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0.05 lux at F1.8 (30 IRE, 2400°K)
Color to B/W switch: ISP based switch, configurable
Mechanical IR Cut Filter: Yes
IR Sensitivity Range: 700 - 1100nm
IR LED: No
Electronic Shutter: 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
Lens
Focal Length: Zoom, f4.9- 49 mm / F1.8 - 3.0
Zoom Ratio: 10x optical
Zoom Speed: Max 2 secs
Iris: DC iris
Focus: Auto focus
Horizontal Viewing Angle: 49.69 - 5.83°
PTZ
Manual Panning Speed: 5° - 90°/s
Manual Tilting Speed: 5° - 90°/s
Preset Panning Speed: 5° - 90°/s
Preset Tilting Speed: 5° - 90°/s
Panning Range: -175° - 175° (without auto-flip)
Tilting Range: 0° - 180° (with E-flip)
Control: Remote manual control; 256 preset points; 10 preset tours; Auto scan
Preset Panning Accuracy: 1.5°
Preset Tilting Accuracy: 1.5°
Absolute Positon: Yes
Protocol: ACTi URL command, Sony VISCA, Pelco D, Pelco P
Video
Compression: H.264, MJPEG
Max. Frame Rate vs. Resolution: 15 fpsat 2592 x 1944; 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
Multi-Streaming: Simultaneous dual streams based on two configurations
Bit Rate: 28 Kbps - 6 Mbps (per stream)
Bit Rate Mode: Constant, Variable
Image Enhancement: Basic WDR (69 dB);; White balance: automatic, hold and manual; Brightness; Contrast; Sharpness; Automatic gain control; Digital Noise Reduction; Flickerless
Text Overlay: User defined text on video
Image Orientation: Image flip and mirror
Audio
Audio: 2-way
Compression: 8 kHz, Mono, PCM, 16 bit encoding; G.711
Audio-In: Terminal block
Audio-Out: Terminal block
Network
Protocol & Service: TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P
Ethernet Port: 1, Ethernet (10/100Base-T), RJ-45 connector
Security: IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
Alarm
Alarm Trigger: Video motion detection (3 regions); External device through digital input
Alarm Response: Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output
Interface
Digital Input: 1, Terminal block
Digital Output: 1, Terminal block
Local Storage: MicroSDHC/MicroSDXC memory card slot (card not included)
General
Power Source / Consumption: PoE Class 3 (IEEE802.3af) / 12.95 W (built-in heater and fan on) DC 12V (adapter not included) / 10.36 W (built-in heater and fan on)
Weight: 1263 g ( 2.78 lb)
Dimensions (Ö x H): 153 mm x 116 mm (6'' x 4.6'')
Environmental Casing: Weatherproof (IP66 rated); Vandal proof (IK10 rated), Transparent dome cover
Mount Type: Surface, Pendant, Wall, Corner, Pole, Flush, Gang box
Starting Temperature: -20°C ~ 50°C (-4°F ~ 122 °F) within 30min
Operating Temperature: -20°C ~ 50°C (-4°F ~ 122 °F)
Operating Humidity: 10% ~ 85% RH
Approvals: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66, IK10, NEMA 4X
Integration
Unified Solution: Fully compatible with ACTi software
ISV Integration: Software Development Kit (SDK) available; ONVIF Compliant
Firmware Access Browser: Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with QuickTime installed (partial functionality)
