All stock codes associated to this product
RS750AMAAB1AU, RS750-AMAAB1-AU, PSCMGM750W, PSCM-GM750W, 4719512044926

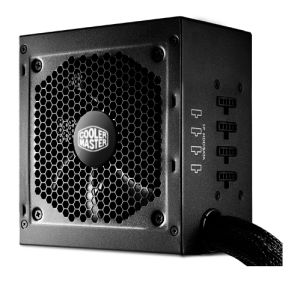

G750M
- Unique 3D circuit design offers high efficiency and improves the heat dissipation. It reduces the unnecessary cables which results in much lower crosstalk, signal noise and improves airflow
- Powerful Single +12V rail for superior load balancing and VGA compatibility. All series supports VGA up to Nvidia Titan.
- Modular cable designs for better cable management
- Custom DC-DC module design offers higher efficiency and voltage stability
- Haswell C6/C7 support & zero load operation
- 80 PLUS Bronze certified: up to 88% efficiency @ typical load
PRODUCT HIGHLIGHT
Intelligent 120mm fan
The intelligent 120mm fan speed controller with honey combo mesh increases airflow for better heat dissipation.
Modular Cable System
Only use the cables you need, no unnecessary cable mess! Building a clean and tidy system with excellent airflow has never been this easy and convenient.
Double Layer EMI Filter
It ensures low levels of electromagnetic interference
Custom DC-DC Module
Our custom 12V to 3.3V and 5V module design offers notably higher efficiency and voltage stability than other designs.
Unique 3D Circuit Design
It offers high efficiency, improves the heat dissipation and reduces the unnecessary cables which results in much lower crosstalk, signal noise.

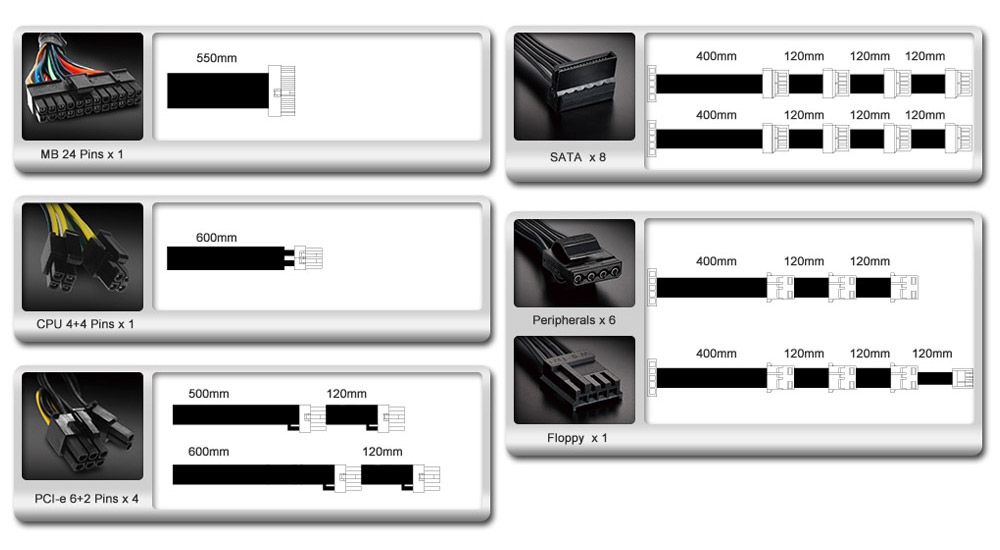

CONNECTORS

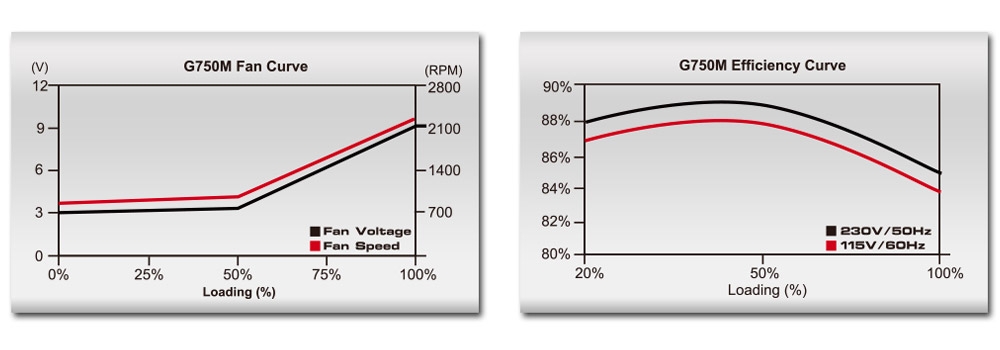

PERFORMANCE

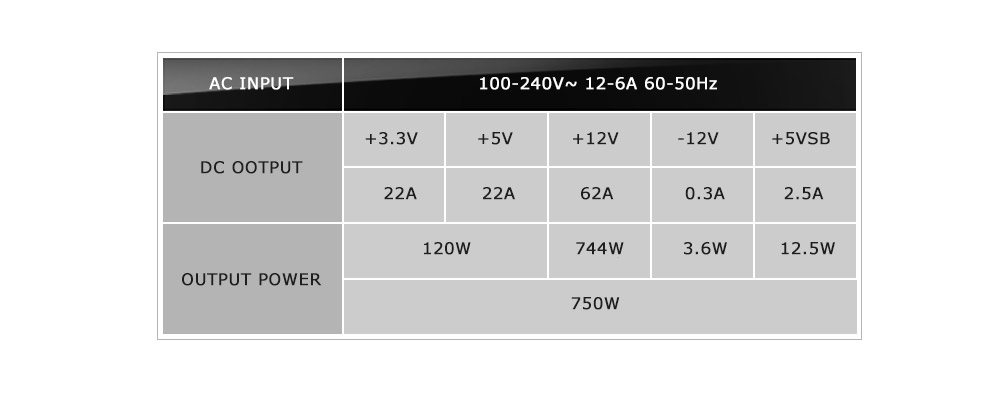

AC INPUT / DC OUTPUT

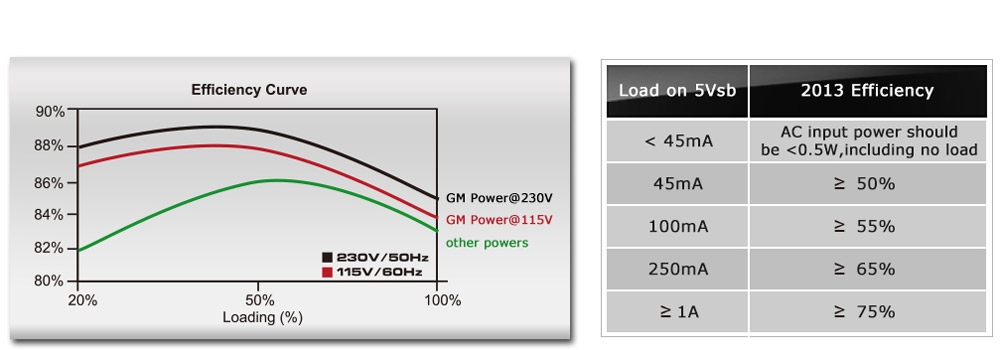

MORE INFORMATION
Synchronous rectification & DC to DC design to provide much better efficiency at lower loading
Adoption of dual Inlet control IC to meet efficiency requirement of Erp 2013
Specifications
| Model |
RS750-AMAAB1-xx |
| Type |
Intel Form Factor ATX 12V V2.31 |
| Dimension (W x L x H) |
150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch |
| Input Voltage |
100-240Vac (Full Range) |
| Input Current |
12 - 6A |
| Input Frequency Range |
60 - 50Hz |
| PFC |
Active PFC (>0.9 typical) |
| Power Good Signal |
100-500ms |
| Hold Up Time |
>16ms |
| Efficiency |
85% Typically |
| MTBF |
>100,000 Hours |
| Protection |
OVP/UVP/OPP/OTP/SCP/OCP |
| Output Capacity |
750W |
| Operation Temperature |
0~40C |
| Regulatory |
CE/FCC/UL/TUV/RCM/EAC/BSMI/CCC |
| Certifications |
80 Plus Bronze |
| Connector |
MB 20+4 Pin x 1
CPU12V 4+4 Pin x 1
PCI-e 6+2 Pin x 4
SATA x 8
4Pin Peripheral x 6
4Pin Floppy x 1 |
)
)
)
)
)
