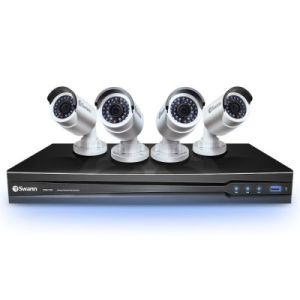

NVR4-7200 4 Channel NVR with Smartphone Viewing & 4 x NHD-820 Cameras
SWNVK-472004
4 Channel 1080p Network Video Recorder / Full Screen 1080p Video in Real-Time / Pre-installed 2TB HDD / 4 x 1000 TVL line Cameras / Easier 'SwannView NVR' network set-up / High Def HDMI & VGA output / Live viewing on Internet, Smartphone
High Definition 1080p Full HD Resolution
4 Channels View & Record
Pre-installed 2TB Hard Drive
1080p Full HD Camera Resolution
75° Viewing Angle
Network Power Over Ethernet
Includes 4 Cameras
View Remotely on your Smartphone or Tablet
115ft / 35m Night Vision
Product Description
- Swanns latest network video recording security system with 1080P high definition live viewing & playback in real-time (25/30 fps per channel)
- State-of-the-art digital imaging technology for 5x the picture sharpness of traditional security systems including analog D1
- Includes 4 x Full HD 1000TVL cameras capable of generating crystal clear 1920 x 1080 pixels (2.1 Megapixel without interpolation) video with IR cut filters for powerful night vision to 115ft / 35m & a weather-resistant rating of IP66 for indoor & outdoor use
- Set & forget by recording continuously from 4 channels for 45 days+ onto a 2TB hard drive (expandable to 4TB*) or even longer with motion detection
- Save time & have peace of mind by easily locating incident video, then transfer to external storage via USB or network
- Easy to do-it-yourself as cameras are powered by the NVR & connect via single CAT5E Ethernet cables (included). Connect the NVR to the internet in minutes using the setup software wizard.
- Security in the palm of your hand with live viewing on your Smartphone or tablet including iOS (iPhone, iPad) &Android devices using the free SwannView NVRapp, with email notifications if there is activity
- View live in HD on your HDTV via HDMI or VGA connection to your LCD screen
- Professional surveillance system gives you peace of mind by being able to see the detail you need from longer distances including license plates, faces, clothing colors & more, all in full HD
Based on typical recording using motion detection. Non stop recording will run for approximately 12 days ^ Based on 2 x 2TB SATA2 HDDs
Specifications
NVR4-7200
Display Resolution
1920 1080, 1600 1200, 1280 1024, 1280 720, 1024 768
Display Frame Rate
Real Time: NTSC 30fps/channel, PAL 25fps/channel
Audio Input
1 Channel, RCA
Audio Output
1 Channel, RCA
Recording Resolution
1920 x 1080
Recording Frame Rate
Real Time: NTSC 30fps/channel, PAL 25fps/channel
Recording Modes
Motion, Alarm, Manual, Schedule
Multiplex Operation
Live view/record or playback/record
HDD Interface / Memory Type
SATA2
HDD
2TB installed (expandable to 4TB*)
Network Interface
1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
4 independent 100 Mbps PoE network interface
Network Protocol
TCP/IP, PPPoE, DDNS, UPnP, IPv6
Operating Power
100~240V, 47~63Hz, 3Amp
Alarm outl
1
NHD-820 Camera
Number of Effective Pixels
1920 x 1080 (2.1 Megapixels)
Minimum Illumination
0.01lux@F1.2, 0 lux with IR
Electronic Shutter
1/25s to 1/100,000s
Backlight Compensation
Yes
Night Vision Distance
Up to 115ft/35m
Number of Infra-Red LEDs
30
Infra-Red Wavelength
850nm
Indoor / Outdoor
Indoor or Outdoor
Operation Temperature
-4F 140F / -20C 60C
Body Construction
Bullet with Built-in Wall Mount Bracket
