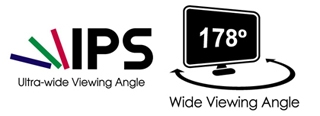

VX239H features a 16:9 aspect ratio LED-backlit AH-IPS A+ panel with a 178 wide-view angle that minimizes color shift on both horizontal and vertical planes to ensure quality visuals from almost any direction. AH-IPS is the latest in IPS technology delivering improved color accuracy plus increased energy efficiency.
80,000,000:1 ASUS Smart Contrast Ratio
With ASUS Smart Contrast Ratio (ASCR) of 80,000,000:1 and 250cd/m² brightness, VX239H augments display contrast and sharpness by adjusting backlighting luminance to achieve the deepest blacks and brightest whites for truly lifelike visuals
ASUS-exclusive VividPixel Technology
The VividPixel Technology enhances outline, sharpness, and color saturation of images and videos to deliver high-quality visual experience.
Monitor without VividPixel
- Image quality mainly depends on panel itself
- Blur happens if original quality of an image is bad
- Usually people don't notice this detail because no comparison was made
VX series - IPS panel incorporated with VividPixel
- IPS panel known for its excellent image quality
- VividPixel default at 25 automatically fine-tunes image quality
- See more differences by choosing among 5 options in VividPixel setting
Splendid™ Video Intelligence Technology
The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. 6 preset video modes (Scenery, Theater, Game, Night View, sRGB and Standard) can be selected via a hotkey.

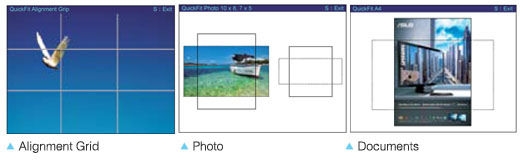

QuickFit Virtual Scale (patent-pending) for true what you see is what you get
ASUS includes its exclusive QuickFit Virtual Scale feature with the VX239H, allowing you to preview photos and documents on-screen in their actual size prior to printing. It can be activated via a monitor hotkey, and serves as a highly useful guide to accurately view and edit photos in their native size.
Supporting Formats:
- Document: Letter
- Photo: 8x10, 5x7, 4x6, 3x5, 2x2
- Grid: Alignment
Specifications
Display
Panel Size: Wide Screen 23.0"(58.4cm) 16:9
Panel Type : AH-IPS
True Resolution : 1920x1080
Full HD 1080P : Yes
Pixel Pitch : 0.2652mm
Brightness(Max) : 250 cd/
ASUS Smart Contrast Ratio (ASCR) : 80000000:1
Viewing Angle (CR10) : 178(H)/178(V)
Response Time : 5ms (GTG)
Display Colors : 16.7M
Video Feature
SPLENDID Video Intelligence Technology
SPLENDID Video Preset Modes : 6 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/Night View Mode/Game Mode)
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
QuickFit (modes) : Yes (Letter/Alignment Grid/Photo Modes)
GamePlus(modes) : Yes (Aimpoint/Timer)
HDCP support
Audio Features
Stereo Speakers : 1W x 2 Stereo RMS
Convenient Hotkey
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
Volume Adjustment
Input Selection
QuickFit
I/O Ports

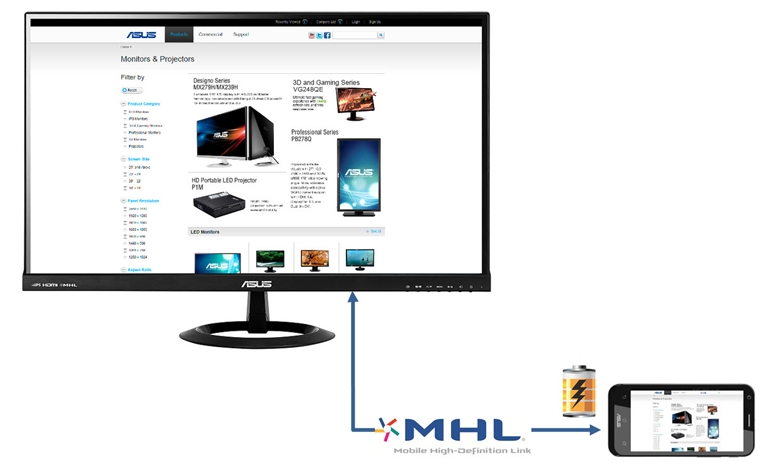

Signal Input : HDMI/MHLx 2, D-Sub
PC Audio Input : 3.5mm Mini-Jack
AV Audio Input : HDMI
Earphone jack : 3.5mm Mini-Jack
Signal Frequency
Analog Signal Frequency : 30~80 KHz(H)/ 56~76 Hz(V)
Digital Signal Frequency : 30~80 KHz(H)/ 56~76 Hz(V)
Power Consumption
Power Consumption:<22W*
Power Saving Mode:<0.5W
Power Off Mode:<0.5W
Voltage: 100-240V/50-60Hz
Mechanical Design
Chassis Colors : Black
Tilt : +20~-5

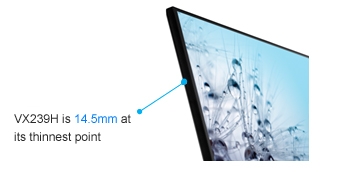

Slim Design : Yes
Security
Kensington lock
Dimensions
Phys. Dimension with Stand(WxHxD):532.9x389.8x210.1mm
Box Dimension(WxHxD):600x493x125mm
Weight
Net Weight(Esti.):3.8kg
Gross Weight(Esti.):5.7kg
Accessories
VGA cable
Audio cable
Power cord
Power adapter
Quick start guide
HDMI-to-DVI cable *1
HDMI cable *2
Warranty Card
MHL cable *3
Regulation Approval
Energy Star, BSMI, CB, CCC, CE, CEL level 1, C-Tick, CU, ErP, FCC, RoHS, UL/cUL, VCCI, WEEE, WHQL (Windows 8, Windows 7)
Note
Based on Energy Star 6.0 standard
1~3 Depends on regions
