Epson EB-575Wi

• Brighter images Now with up to 2,700 lumens white brightness and colour brightness.
• Longer lamp life Up to 10,000 hours^# lamp life in ECO mode.
• Higher contrast ratio Now with 10,000:1 across the entire range.
• Digital connectivity 2x HDMI ports for digital connections. 1 port supports MHL (Mobile High Definition Link) for mirroring connectivity with Android  mobile devices.
• PC Interactivity Comes with Epson's latest and enhanced PC interactive software (Easy Interactive Tools version 3.0). With intuitive user interface and enhanced interactive features.
• Wireless projection and interactivity Projection and interactive function without the wires when used with the optional LAN card (using peer to peer wireless and Epson's EasyMP Network Projection software version 2.81 or later).
• Dual Pen Interactivity With simultaneous dual pen functionality, teacher and student can annotate at the same time. New smaller pen design now comes with selectable function side button.
• Projector control using Multi-PC projection software with Moderator function Allows up to 50 devices to connect to the projector. Now features a Moderator function for managing and controlling the images displayed on the screen (up to 4).
• New projector control tool bar Allows user to control the projector (eg switch sources, zoom, volume up/down etc) using the interactive pen.
• No driver installation required Installation has never been easier (driver installation is required for Mac).
• Advanced Networking Capability Enables users to monitor, control and present from a remote location.
• Low cost Epson Lamp Incredibly low price of only $79 RRP inc GST.
• 16W Built-in Speaker Built in audio with the power to fill the room.

Basic Functions



3LCD Technology



All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic imagery and video all delivered with 3LCD's true-to-life colour.





Up to 3x Brighter with Epson Projectors



Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.

All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.


Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.



Higher Brightness



With brightness up to 3300 lumens (selected models), the screen is easily viewed from anywhere in the classroom, even without dimming the lights.





Ultra Short Throw Benefits

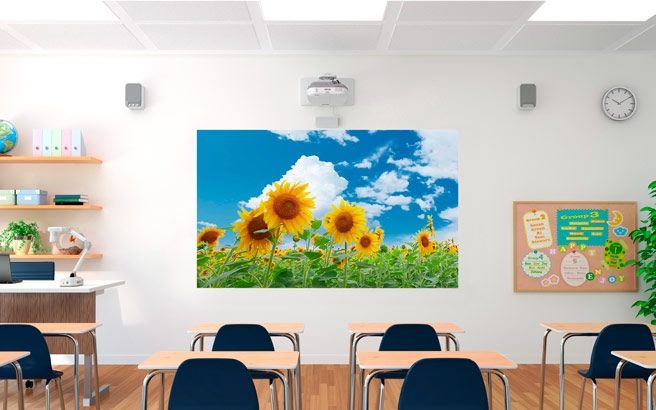

Bigger Image



The ultra-short throw allows the projector to be positioned closer to the screen for reduced shadowing. This model can fill an 80-inch screen from just 47cm away.

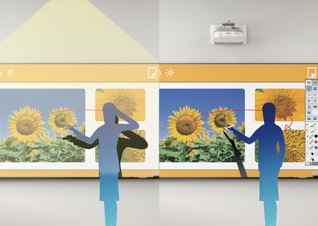

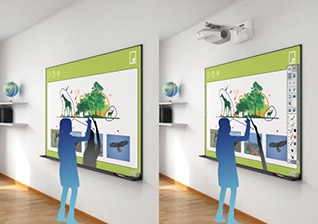

Significantly Reduced Shadow Interference

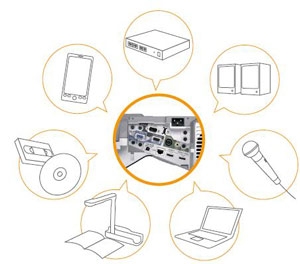

Wide Ranging Interface



Not only does the wide-ranging interface correspond with conventional analogue sources, it is compatible with two types of HDMI sources as well for digital connections.



One of the HDMI input terminals is MHL (Mobile High Definition Link) certified for mirroring of Android and other mobile devices.





Mobile Device Compatibility



Using the optional wireless card in conjunction with Epson's iProjection app, you can also display and control content from your iPad, iPhone, iPod and Android devices.



Find out how to set up your Epson iProjection app and learn more about your projector and device compatibility, visit Epson.com.au/iprojection.

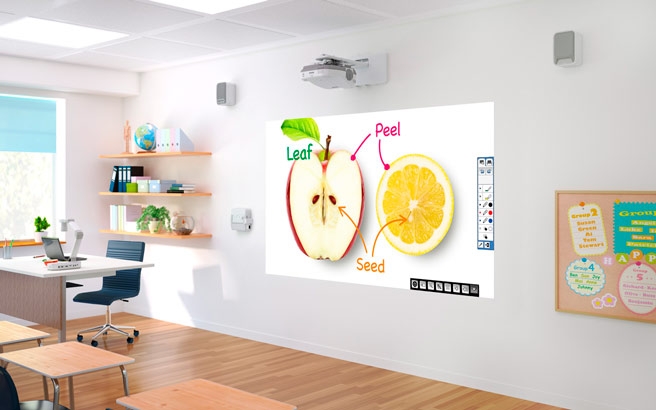

EASY INSTALLATION AND MAINTENANCE

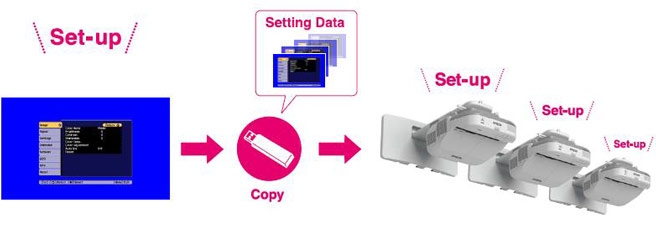

Cloning Function



When dealing with multiple projectors, it is now possible to copy the OSD menu settings for things like user logos or colour modes and transfer the settings to multiple machines via USB/network. This function will help reduce set-up and installation time.

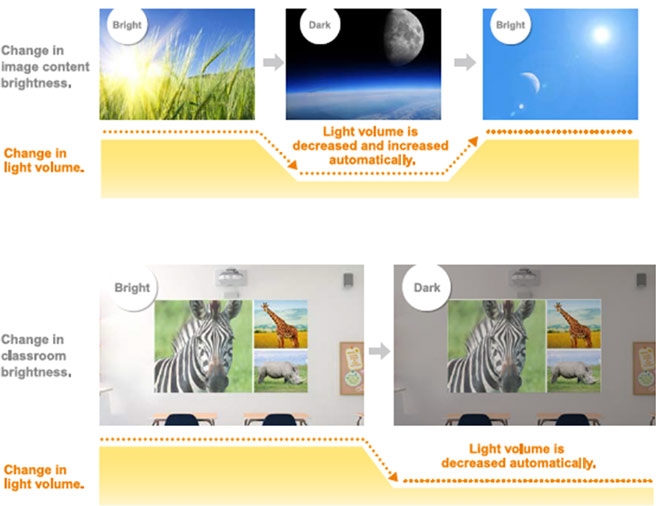

Lamp Regulator Function



This newly added function automatically adjusts image brightness according to ambient light levels and image content. This feature helps reduce the load on the lamp and conserves electricity.

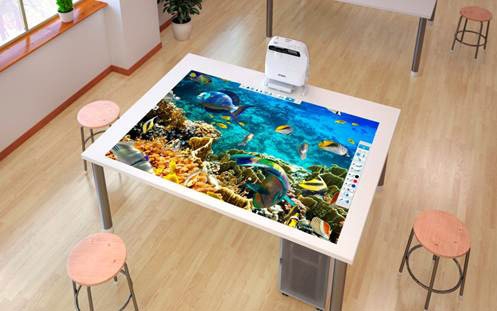

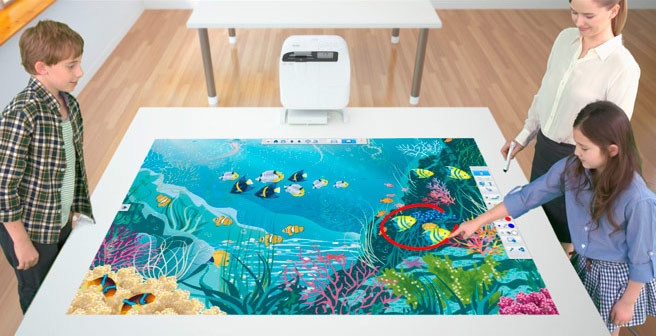

Table Top Projection



These projectors can also project vertically downward, enabling users to transform any table top into a viewing surface. By utilising the optional ELP-MB29 table mount, an ordinary table becomes an exciting surface.





Longer Lamp Life







The long 10,000 hours lamp life^# saves time and money by reducing the frequency of costly lamp replacements. When you do need to replace the lamp, it will only cost $79 inc GST.



Periodic cleaning allows Epson projectors to be used for much longer intervals. The maintenance cycle for the air filter is approximately 5000 hours.





INTERACTIVE FUNCTIONS



Enhanced Annotation Software ¬ PC Interactive

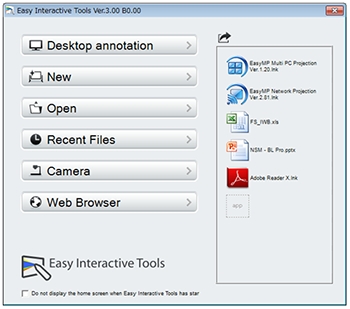

Epson's PC Interactive software ¬ Easy Interactive Tool v. 3.0 software has been enhanced and now features more user friendly tools, including:



1. Home screen with quick access buttons ¬ for desktop annotation, opening files and accessing the web browser



2. Application shortcuts panel ¬ for accessing your favourite or commonly used applications





3. Two tool bars for annotation and operation purposes operation functions include source change, A/V mute, Freeze and Volume up/down





4. 'Add text' function ¬ for adding text into the whiteboard using a virtual keyboard

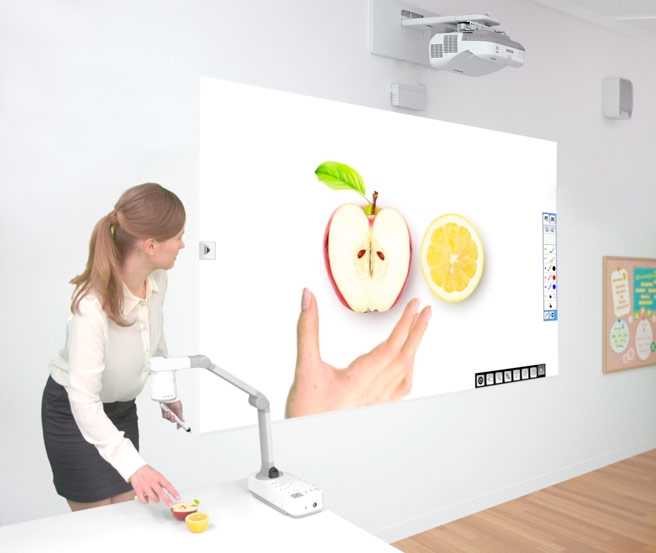

5. Video recording function through Epson's document cameras (sold separately)



6. Intuitive enlarge image functionality



7. Drawings or annotations can be saved as PDF, JPEG, BMP and PNG formats. In addition, the updated EIT v. 3.0 software now also features an original file format (EIT) that allows re-opening and more editing options for saved documents.



Higher Response Speed ¬ Accuracy



The higher response speed and accuracy makes drawing as immediate and responsive as using a pen on a whiteboard.



Auto Calibration



Immediate and accurate calibration, all with the push of one button!

Driverless Installation



Since no drivers are necessary, you don't have to set up your PC before using the projector. Simply connect any PC to start using the interactive functions.
(Windows / Linux only. Driver installation is required for Mac)



Interactive Pens ¬ new design with enhanced functionality



The new interactive pens have been re-designed to make it easier to hold and write than with a conventional pen.



Now also comes with side button with selectable functions such as open tool bar; switch between mouse and pen or switch between pen and eraser.

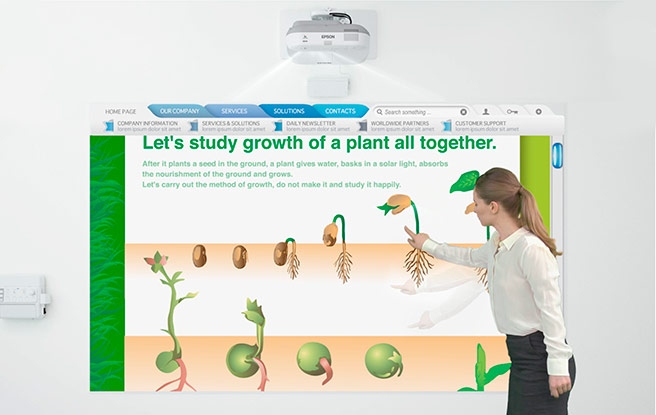

Finger Touch Operation - EB-595Wi Only



In addition to interactive pens, it is now possible to operate intuitively by using your finger on the screen - now you can annotate, open and close files, scroll through pages, move and enlarge objects.



Open and close files





Scroll through pages





Zoom in on pages or enlarge images





Move, rotate, enlarge or even use your finger as an eraser





Multi PC Projection with Moderator Function

The Multi-PC Projection feature allows a network of up to 50 PCs to be connected to a single projector. The newest version of this feature allows a host PC to act as a Moderator who can then select up to 4 of the connected devices to be projected on the screen. It is also possible to annotate on the screen image. The Moderator function allows the user to control what image is projected on the screen and prevent tampering.

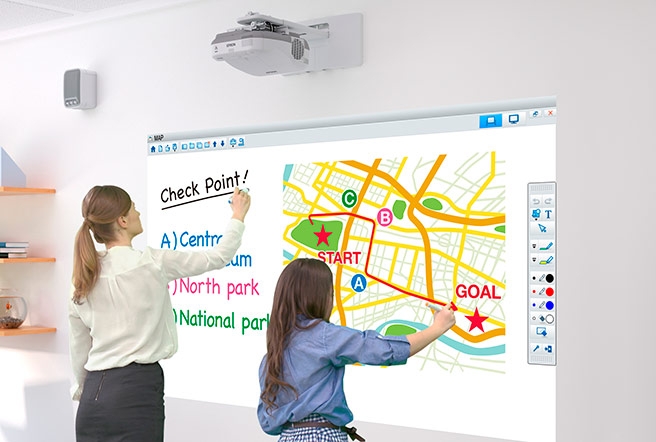

Multi Use Interactivity

Two people can write simultaneously on the interactive area using 2 pens.

For the EB-595Wi model with finger touch interactivity, users can annotate on the screen with pens or a combination of pens and fingers.

On Screen Projector Operation

Basic projector operation (power ON, source change, volume up/down, A/V mute, etc) can be done by simply clicking the icons shown on the new operation toolbar. Now theres no need to look for the remote control, when the projector can be easily operated from the screen!

PC-less Interactive Functionality

Interactive functionality is also available without a PC connection, so drawing on the projected screen is now possible when connected to other devices such as document camera or DVD player etc. Even when there is no input source, you can annotate on the screen like a whiteboard.

Table Top Projection

These projectors can also project vertically downward, enabling users to transform any table top into an interactive surface By utilising the optional ELP-MB29 table mount, an ordinary table becomes an engaging platform for interaction and collaboration.

Connectivity Panel



Specifications:



PRODUCT NAME	Epson EB-575Wi
PRODUCT CODE	V11H601053
TECHNOLOGY
Projection Technology	Epson 3LCD, 3-chip technology
Projection System	RGB liquid crystal shutter projection system
LCD Panel	0.59-inch with MLA
OPTICAL
Zoom Ratio	1.0 - 1.35 (Digital Zoom)
Screen Size (Projection Distance)	60" to 100" [34.8 to 59.7cm] 74.3" screen 43.8 cm
Throw Ratio	0.27 (Zoom:Wide) 0.37 (Zoom:Tele)
Projection Lens Type	No Optical Zoom / Focus (Manual)
Projection Lens F Number	1.80
Projection Lens Focal Length	3.71mm
Focus Method	Manual Focus
Offset	6.0:-1
White Light Output	2,700 lumens
Colour Light Output	2,700 lumens
Resolution	WXGA
Native Aspect Ratio	16:10
Contrast Ratio	10,000:1
Keystone Correction	Vertical: -3 to +3 degrees Horizontal: -3 to +3 degrees
CONNECTIVITY
Video I/O - Input	Analog: 2x RGB D-sub 15pin *Computer 2 in common with Monitor Out 1x RCA Composite 1x Min DIN 4pin S-Video
Video I/O - Output	Analog: 1x RGB D-sub 15pin *In common with Computer 2 input. Output signal: Computer 1 only
Digital Input	Digital: 2x HDMI (1 supports MHL)
Audio I/O - Input	3x Stereo mini
Audio I/O - Output	1x Stereo mini
Mic I/O - Input	1x Stereo mini
Control I/O	1x RS-232C D-sub 9pin Interactive sync stereo mini - 1x In, 1x out
USB I/O	1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings) 1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings)
Network I/O:	1x RJ45 (100Mbps) Wired LAN 1x USB Type A (for Optional ELPAP07 LAN unit)
Wireless Connectivity	Optional ELPAP07 Wireless LAN unit
Speaker Output	Monaural: 16 W x 1
ADVANCED FEATURES
EasyMP Network Projector control and projector management via network	Yes
EasyMP Network Projection	Yes
EasyMP Network Multi PC Projection	Yes
Message Broadcasting	Yes
Easy Interactive Function	Supported screen size - 60"-100" Technology - Infrared Input devices: Digital Pen (Easy Interactive Pen 1,2) Calibration: Pen: Auto / Manual (25points)
PC Interactive Tool	Multiple pen/finger support: Yes (with Easy Interactive Tools Ver.3.0) Easy Interactive Pen: Up to 2.
PC Free Annotation Tool	Multi-pen support: Yes Easy Interactive Pen: Up to 2. Whiteboard function
Firmware update	Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Copy OSD settings	Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Quick Wireless Connection	Yes
Wireless LAN Security	WPA/WPA2-Personal (with optional Wireless LAN Unit)
Instant Off	Yes
Direct Power On	Yes
Security	* Kensington  - lock provision * Padlock & Security cable hole * Wireless LAN unit lock * Password protect function (Power On, Network, Protection of User logo)
Colour Modes	Dynamic, Theatre

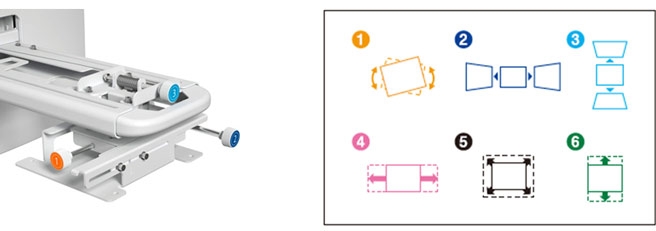

Integrated Mount included	Yes
GENERAL
Dimensions (excl feet) WxDxH	367 x 375 x 155mm
Shipping Dimensions	790 x 320 x 520mm
Weight	5.5kg
Shipping Weight	19.20kg
Lamp Warranty	1 Year (or 750 hours)*
Projector Warranty	3 Years
Lamp Hours	5,000 hours (Normal) 10,000 hours (ECO)
Lamp Type	215W UHE
Power Consumption: Lamp On	318W (Normal) 230W (ECO)
Power Consumption: Networked Standby	4.3W
Power Consumption: Energy Saving	0.44W
Air Filter maintenance cycle	up to 5000 hours
Fan Noise Level	Power consumption Normal: 35dB Power consumption ECO: 28dB
* Whichever comes first. For more information visit Epson Projector Warranty
WHAT'S IN THE BOX
Power Cable	Yes 5M
USB Cable	Yes 5M
Password Protect sticker	YES
Remote Control	YES
Battery for Remote Control	AA x 2
Setting Plate	YES
Easy Interactive Pen	2 Pens
Battery for Easy Interactive Pen	AA x 2
Pen Tray	YES
PRODUCT OPTIONS	Item Code	Description
	V13H010L79	ELPLP79 Lamp 215W UHE for EB-575W/575We/575Wi/575Wie

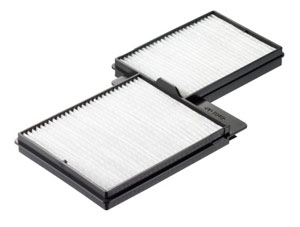

	V13H134A40	ELPAF40 Air filter
	V12H003P13	ELPFP13 Extension pole/suspension adaptor
	V12H003P14	ELPFP14 Extension pole/suspension adaptor
	V12H516040	ELPMB29 Table mount
	V12H666010	ELPPN04A Replacement interactive pen
	V12H667010	ELPPN04B Replacement interactive pen
	V12H668010	ELPPS02 Replacement pen tips
	V12H525001	ELPKC31 USB extension cable
	V12H418P13	ELPAP07 USB Wireless LAN adaptor
	V12H005M09	ELPAP09 USB Quick wireless USB key
