Epson EB-575Wie
Ultra Short Throw Projectors

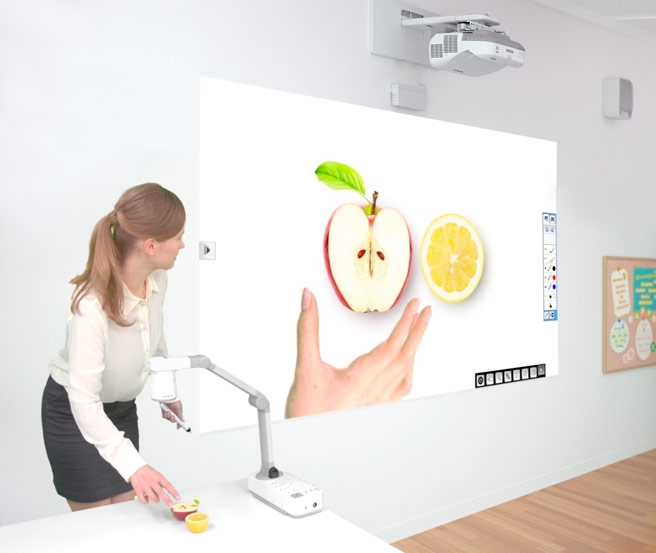

The interactive projector for today's BYOD classroom
Overview
The EB-575Wie ultra-short-throw interactive projectors offer cutting-edge kinesthetic learning. With PC-free interactivity, it's easy to annotate on displayed content from virtually any device, or no source at all. Teachers can wirelessly project from mobile devices3, utilise popular learning applications, or use the Moderator software2 to simultaneously share students' work from PC, Mac , iOS and Android devices. It's all so seamless kids stay focused with no downtime. Offering 3x Brighter Colours* than competitive models, Epson 3LCD projectors ensure bright, vivid lessons. With 2700 lumens of colour brightness and 2700 lumens of white brightness1, the 575Wie delivers truly dynamic images.
1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 Moderator feature is part of Epsons EasyMP Multi PC Projection software.
3 Check your owner's manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Not all Epson projectors are able to be networked. Availability varies depending on model.
* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
KEY FEATURES & BENEFITS
- Brighter images Now with up to 2,700 lumens white brightness and colour brightness.
- Longer lamp life Up to 10,000 hours# lamp life in ECO mode.
- Higher contrast ratio Now with 10,000:1 across the entire range.
- Digital connectivity 2x HDMI ports for digital connections. 1 port supports MHL (Mobile High Definition Link) for mirroring connectivity with Android mobile devices.
- PC Interactivity Comes with Epson's latest and enhanced PC interactive software (Easy Interactive Tools version 3.0). With intuitive user interface and enhanced interactive features.
- Wireless projection and interactivity Projection and interactive function without the wires when used with the optional LAN card (using peer to peer wireless and Epson's EasyMP Network Projection software version 2.81 or later).
- Dual Pen Interactivity With simultaneous dual pen functionality, teacher and student can annotate at the same time. New smaller pen design now comes with selectable function side button.
- Projector control using Multi-PC projection software with Moderator function Allows up to 50 devices to connect to the projector. Now features a Moderator function for managing and controlling the images displayed on the screen (up to 4).
- New projector control tool bar Allows user to control the projector (eg switch sources, zoom, volume up/down etc) using the interactive pen.
- No driver installation required Installation has never been easier (driver installation is required for Mac).
- Advanced Networking Capability Enables users to monitor, control and present from a remote location.
- Low cost Epson Lamp Incredibly low price of only $79 RRP inc GST.
- 16W Built-in Speaker Built in audio with the power to fill the room.
Lamp life for the EB-575W and EB-575Wi is up to 10,000 hours (eco mode) and 5,000 hours (normal); lamp life for the EB-580, EB-585W, E-585Wi and EB-595Wi is up to 6,000 hours (eco mode) and 4,000 hours (normal). Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp Brightness decreases over time.
Interactive Ultra Short Throw Models - Range at the glance
| Model |
EB-575Wi
|
EB-575Wie
|
EB-585Wi
|
EB-595Wi
|
EB-595Wie
|
| Interactivity |
Pen only
|
Pen only
|
Pen only
|
Finger and Pen Interactive
|
Finger and Pen Interactive
|
| White Light Output |
2,700 lumens
|
2,700 lumens
|
3,300 lumens
|
3,300 lumens
|
3,300 lumens
|
| Colour Light Output |
2,700 lumens
|
2,700 lumens
|
3,300 lumens
|
3,300 lumens
|
3,300 lumens
|
| Display Technology |
3LCD
|
3LCD
|
3LCD
|
3LCD
|
3LCD
|
| Native Resolution |
WXGA
|
WXGA
|
WXGA
|
WXGA
|
WXGA
|
| Aspect Ratio |
16:10
|
16:10
|
16:10
|
16:10
|
16:10
|
| Contrast Ratio |
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
| Multi-user Interactivity |
YES
|
YES
|
YES
|
YES
|
YES
|
| PC Free Annotation |
YES
|
YES
|
YES
|
YES
|
YES
|
| Network Functionality |
YES
|
YES
|
YES
|
YES
|
YES
|
| Wireless LAN |
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
| HDMI Connectivity |
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
| Speakers |
16W
|
16W
|
16W
|
16W
|
16W
|
| Integrated Mount Included |
YES
|
YES
|
YES
|
YES
|
YES
|
| Zoom Ratio |
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
| Education Model |
-
|
YES
|
-
|
-
|
YES
|
| Low Cost Replacement Lamp |
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
| Lamp Hours# |
5,000 (Normal), 10,000 (ECO)
|
5,000 (Normal), 10,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic imagery and video all delivered with 3LCD's true-to-life colour.
Up to 3x Brighter with Epson Projectors
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.
All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.
ompared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Higher Brightness
With brightness up to 3300 lumens (selected models), the screen is easily viewed from anywhere in the classroom, even without dimming the lights.

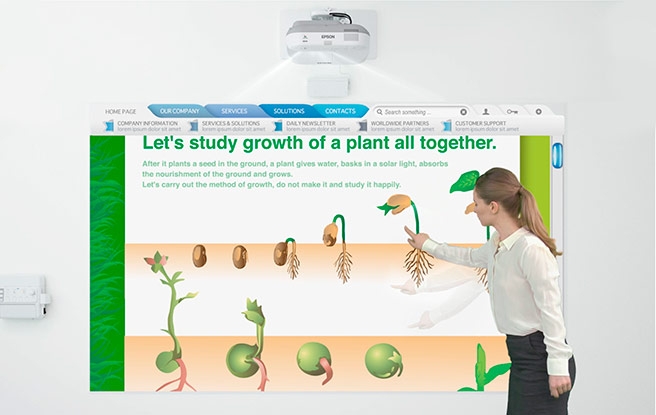

Ultra Short Throw Benefits
Bigger Image
The ultra-short throw allows the projector to be positioned closer to the screen for reduced shadowing. This model can fill an 80-inch screen from just 47cm away.

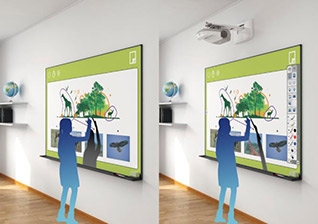

Significantly Reduced Shadow Interference
You no longer need to worry about obscuring the information on screen with shadows cast by your body.

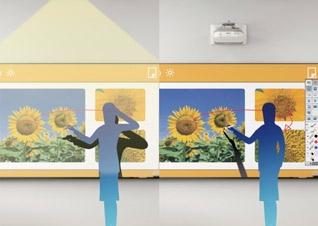

Non-Blinding
Even when you stand directly in front of the screen, the light rarely reaches your face. With no glare in your eyes, you'll find it far more pleasant and stress-free to be out front when using the projector.

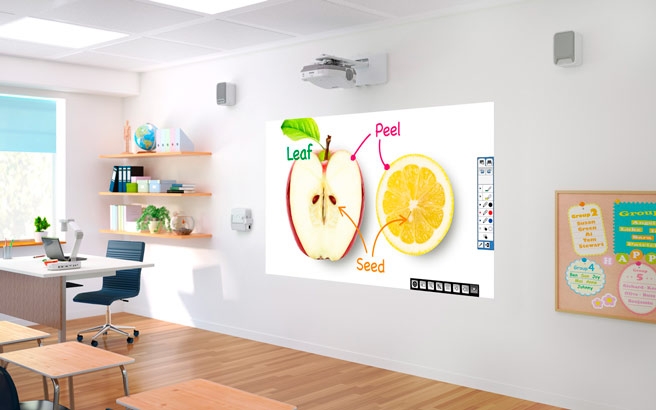

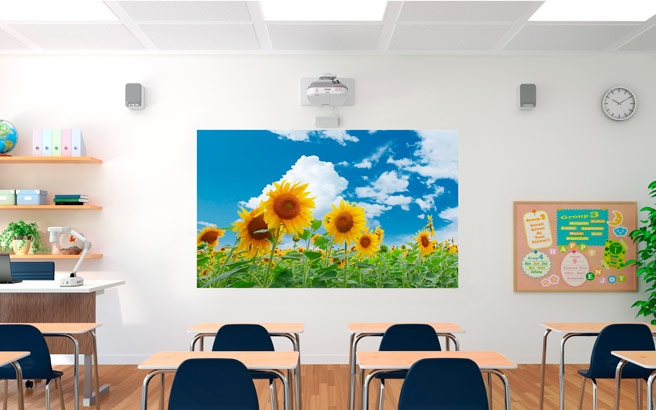

Classroom Friendly Design
These Ultra Short Throw projectors are designed to blend in with office or classroom surroundings, even when wall mounted. The setting plate and cable cover keep cables out of sight.

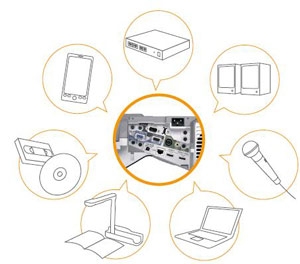

Wide Ranging Interface
Not only does the wide-ranging interface correspond with conventional analogue sources, it is compatible with two types of HDMI sources as well for digital connections.
One of the HDMI input terminals is MHL (Mobile High Definition Link) certified for mirroring of Android and other mobile devices.
Mobile Device Compatibility
Using the optional wireless card in conjunction with Epson's iProjection app, you can also display and control content from your iPad, iPhone, iPod and Android devices.
Find out how to set up your Epson iProjection app and learn more about your projector and device compatibility, visit Epson.com.au/iprojection.
EASY INSTALLATION AND MAINTENANCE

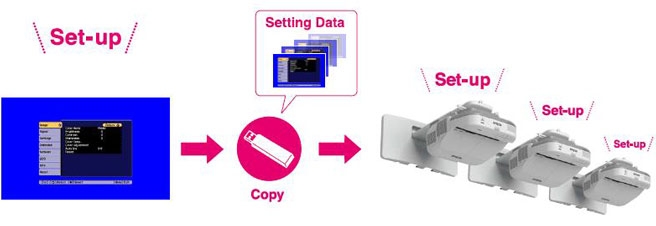

Cloning Function
When dealing with multiple projectors, it is now possible to copy the OSD menu settings for things like user logos or colour modes and transfer the settings to multiple machines via USB/network. This function will help reduce set-up and installation time.

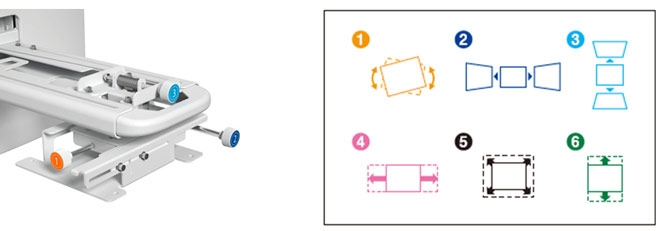

Easy Installation and Adjustment
Epson's original mounting plate has been re-designed for improved installation and set-up. For fine adjustment, all six axes can be individually corrected using the adjustment dials on the plate. Improvements on the mounting plate include larger cable cutouts, center line indicator and ruler on both sides of the mounting arm.

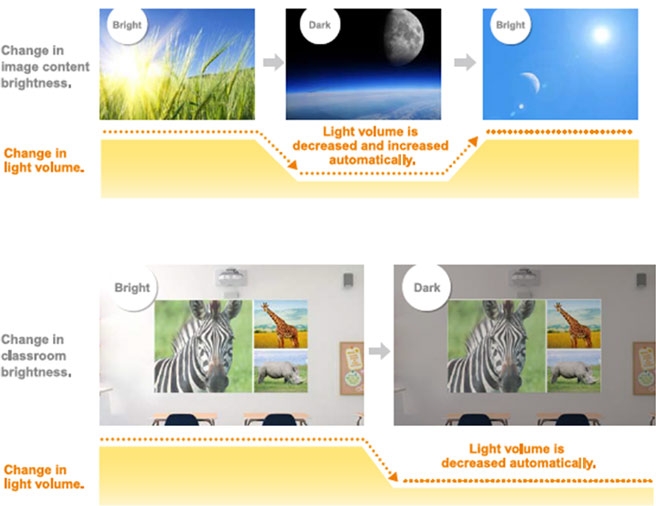

Lamp Regulator Function
This newly added function automatically adjusts image brightness according to ambient light levels and image content. This feature helps reduce the load on the lamp and conserves electricity.
Table Top Projection
These projectors can also project vertically downward, enabling users to transform any table top into a viewing surface. By utilising the optional ELP-MB29 table mount, an ordinary table becomes an exciting surface.
Longer Lamp Life
The long 10,000 hours lamp life# saves time and money by reducing the frequency of costly lamp replacements. When you do need to replace the lamp, it will only cost $79 inc GST.

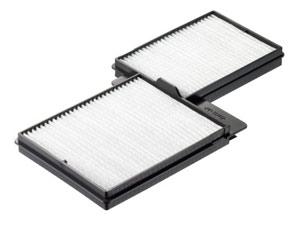

Periodic cleaning allows Epson projectors to be used for much longer intervals. The maintenance cycle for the air filter is approximately 5000 hours.
INTERACTIVE FUNCTIONS

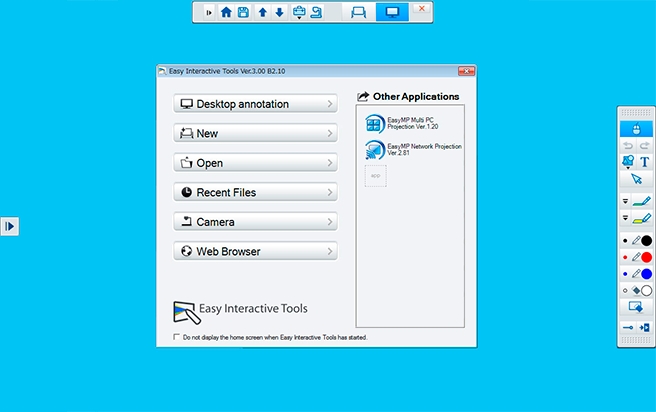

Enhanced Annotation Software PC Interactive

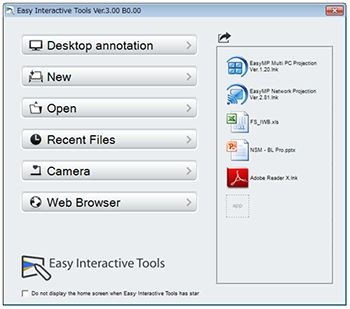

Epson's PC Interactive software Easy Interactive Tool v. 3.0 software has been enhanced and now features more user friendly tools, including:
1. Home screen with quick access buttons for desktop annotation, opening files and accessing the web browser
2. Application shortcuts panel for accessing your favourite or commonly used applications
3. Two tool bars for annotation and operation purposes operation functions include source change, A/V mute, Freeze and Volume up/down
4. 'Add text' function for adding text into the whiteboard using a virtual keyboard
5. Video recording function through Epson's document cameras (sold separately)
6. Intuitive enlarge image functionality
7. Drawings or annotations can be saved as PDF, JPEG, BMP and PNG formats. In addition, the updated EIT v. 3.0 software now also features an original file format (EIT) that allows re-opening and more editing options for saved documents.
Higher Response Speed Accuracy
The higher response speed and accuracy makes drawing as immediate and responsive as using a pen on a whiteboard.
Auto Calibration
Immediate and accurate calibration, all with the push of one button!
Driverless Installation
Since no drivers are necessary, you don't have to set up your PC before using the projector. Simply connect any PC to start using the interactive functions.
(Windows / Linux only. Driver installation is required for Mac)
Interactive Pens new design with enhanced functionality
The new interactive pens have been re-designed to make it easier to hold and write than with a conventional pen.
Now also comes with side button with selectable functions such as open tool bar; switch between mouse and pen or switch between pen and eraser.

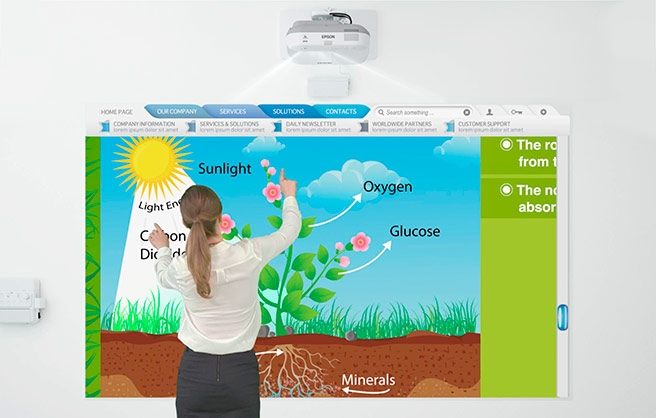

Finger Touch Operation - EB-595Wi Only
In addition to interactive pens, it is now possible to operate intuitively by using your finger on the screen - now you can annotate, open and close files, scroll through pages, move and enlarge objects.
Open and close files
Scroll through pages
Zoom in on pages or enlarge images
Move, rotate, enlarge or even use your finger as an eraser

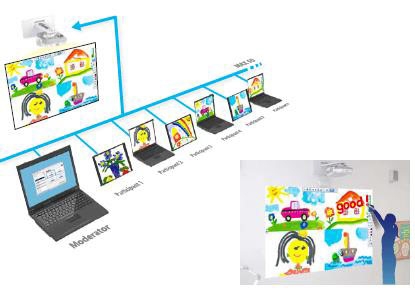

Multi PC Projection with Moderator Function
The Multi-PC Projection feature allows a network of up to 50 PCs to be connected to a single projector. The newest version of this feature allows a host PC to act as a Moderator who can then select up to 4 of the connected devices to be projected on the screen. It is also possible to annotate on the screen image. The Moderator function allows the user to control what image is projected on the screen and prevent tampering.

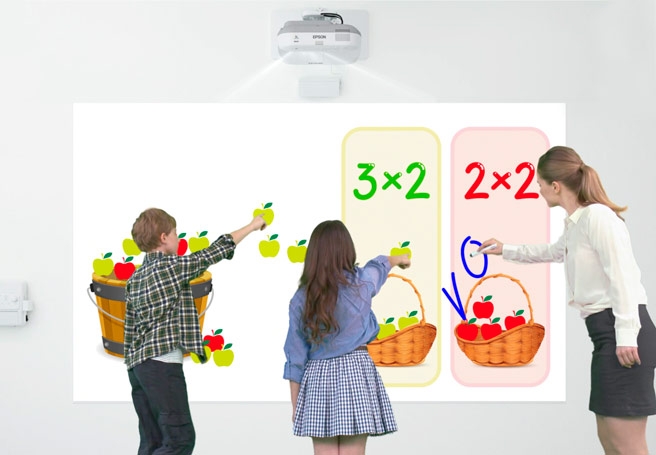

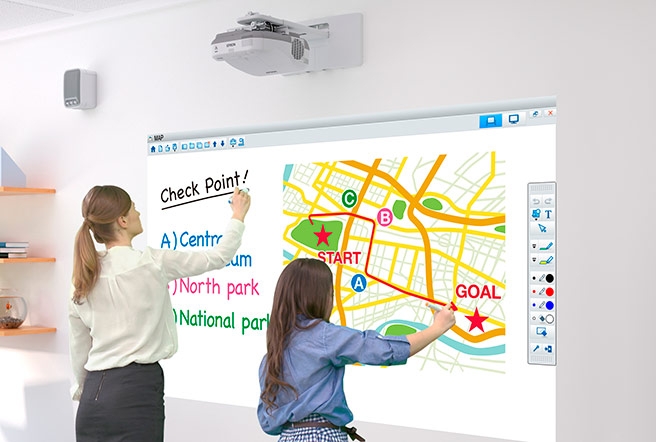

Multi Use Interactivity
Two people can write simultaneously on the interactive area using 2 pens.
For the EB-595Wi model with finger touch interactivity, users can annotate on the screen with pens or a combination of pens and fingers.

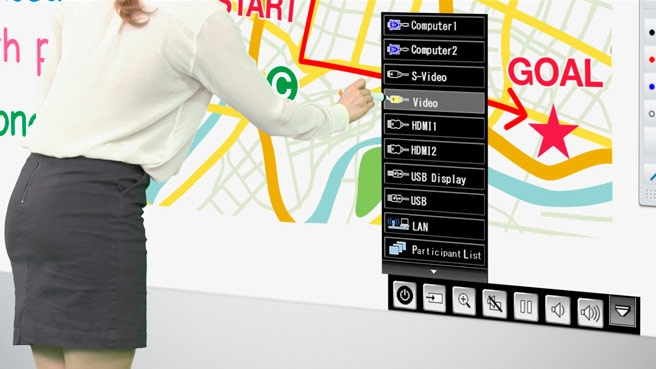

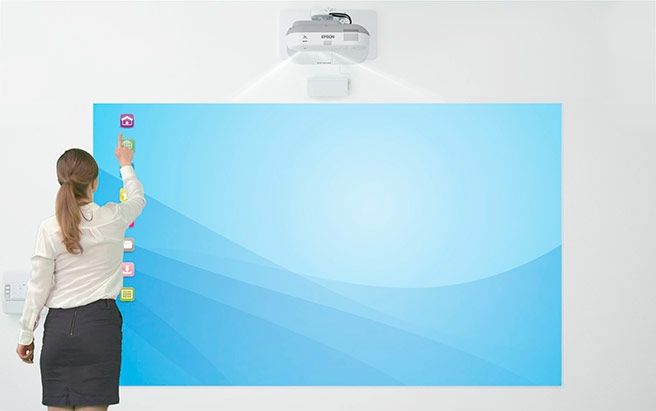

On Screen Projector Operation
Basic projector operation (power ON, source change, volume up/down, A/V mute, etc) can be done by simply clicking the icons shown on the new operation toolbar. Now theres no need to look for the remote control, when the projector can be easily operated from the screen!
PC-less Interactive Functionality
Interactive functionality is also available without a PC connection, so drawing on the projected screen is now possible when connected to other devices such as document camera or DVD player etc. Even when there is no input source, you can annotate on the screen like a whiteboard.

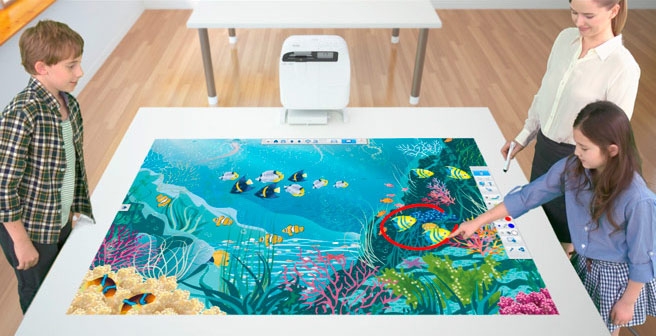

Table Top Projection
These projectors can also project vertically downward, enabling users to transform any table top into an interactive surface By utilising the optional ELP-MB29 table mount, an ordinary table becomes an engaging platform for interaction and collaboration.

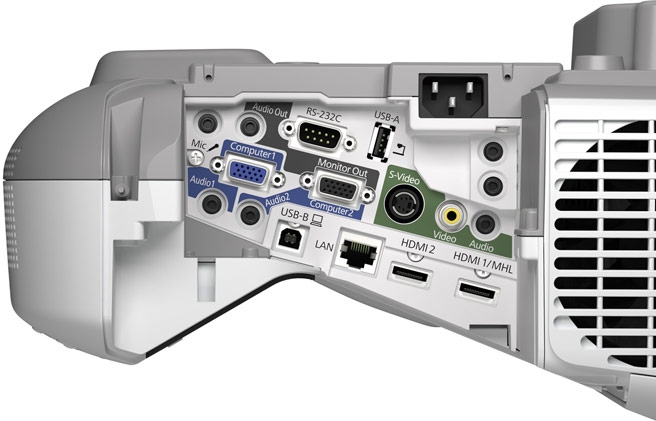

Connectivity Panel
Specifications:
| PRODUCT NAME |
Epson EB-575Wie |
| PRODUCT CODE |
V11H601153 |
| TECHNOLOGY |
|
| Projection Technology |
Epson 3LCD, 3-chip technology |
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
0.59-inch with MLA |
| OPTICAL |
|
| Zoom Ratio |
1.0 - 1.35 (Digital Zoom) |
| Screen Size (Projection Distance) |
60" to 100" [34.8 to 59.7cm]
74.3" screen 43.8 cm |
| Throw Ratio |
0.27 (Zoom:Wide)
0.37 (Zoom:Tele) |
| Projection Lens Type |
No Optical Zoom / Focus (Manual) |
| Projection Lens F Number |
1.80 |
| Projection Lens Focal Length |
3.71mm |
| Focus Method |
Manual Focus |
| Offset |
6.0:-1 |
| IMAGE |
|
| White Light Output |
2,700 lumens |
| Colour Light Output |
2,700 lumens |
| Resolution |
WXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
10,000:1 |
| Keystone Correction |
Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees |
| CONNECTIVITY |
|
| Video I/O - Input |
Analog: 2x RGB D-sub 15pin
*Computer 2 in common with Monitor Out
1x RCA Composite
1x Min DIN 4pin S-Video |
| Video I/O - Output |
Analog: 1x RGB D-sub 15pin
*In common with Computer 2 input.
Output signal: Computer 1 only |
| Digital Input |
Digital: 2x HDMI (1 supports MHL) |
| Audio I/O - Input |
3x Stereo mini |
| Audio I/O - Output |
1x Stereo mini |
| Mic I/O - Input |
1x Stereo mini |
| Control I/O |
1x RS-232C D-sub 9pin
Interactive sync stereo mini - 1x In, 1x out |
| USB I/O |
1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings) |
| Network I/O: |
1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP07 LAN unit) |
| Wireless Connectivity |
Optional ELPAP07 Wireless LAN unit |
| Speaker Output |
Monaural: 16 W x 1 |
| ADVANCED FEATURES |
|
| EasyMP Network Projector control and projector management via network |
Yes |
| EasyMP Network Projection |
Yes |
| EasyMP Network Multi PC Projection |
Yes |
| Message Broadcasting |
Yes |
| Easy Interactive Function |
Supported screen size - 60"-100"
Technology - Infrared
Input devices:
Digital Pen (Easy Interactive Pen 1,2)
Calibration: Pen: Auto / Manual (25points) |
| PC Interactive Tool |
Multiple pen/finger support: Yes (with Easy Interactive Tools Ver.3.0)
Easy Interactive Pen: Up to 2. |
| PC Free Annotation Tool |
Multi-pen support: Yes
Easy Interactive Pen: Up to 2.
Whiteboard function |
| Firmware update |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Copy OSD settings |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Quick Wireless Connection |
Yes |
| Wireless LAN Security |
WPA/WPA2-Personal (with optional Wireless LAN Unit) |
| Instant Off |
Yes |
| Direct Power On |
Yes |
| Security |
* Kensington - lock provision
* Padlock & Security cable hole
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo) |
| Colour Modes |
Dynamic, Theatre |
| Integrated Mount included |
Yes |
| GENERAL |
|
| Dimensions (excl feet) WxDxH |
367 x 375 x 155mm |
| Weight |
5.5kg |
| Lamp Warranty |
1 Year (or 750 hours)* |
| Projector Warranty |
5Years |
| Lamp Hours |
5,000 hours (Normal)
10,000 hours (ECO) |
| Lamp Type |
215W UHE |
| Power Consumption: Lamp On |
318W (Normal)
230W (ECO) |
| Power Consumption: Networked Standby |
4.3W |
| Power Consumption: Energy Saving |
0.44W |
| Air Filter maintenance cycle |
up to 5000 hours |
| Fan Noise Level |
Power consumption Normal: 35dB
Power consumption ECO: 28dB |
| |
| * Whichever comes first. For more information visit Epson Projector Warranty |
| WHAT'S IN THE BOX |
|
| Power Cable |
Yes 5M |
| USB Cable |
Yes 5M |
| Password Protect sticker |
YES |
| Remote Control |
YES |
| Battery for Remote Control |
AA x 2 |
| Setting Plate |
YES |
| Easy Interactive Pen |
2 Pens |
| Battery for Easy Interactive Pen |
AA x 2 |
| Pen Tray |
YES |
| |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
V13H010L79 |
ELPLP79 Lamp 215W UHE for EB-575W/575We/575Wi/575Wie |
| |
V13H134A40 |
ELPAF40 Air filter |
| |
V12H003P13 |
ELPFP13 Extension pole/suspension adaptor |
| |
V12H003P14 |
ELPFP14 Extension pole/suspension adaptor |
| |
V12H516040 |
ELPMB29 Table mount |
| |
V12H666010 |
ELPPN04A Replacement interactive pen |
| |
V12H667010 |
ELPPN04B Replacement interactive pen |
| |
V12H668010 |
ELPPS02 Replacement pen tips |
| |
V12H525001 |
ELPKC31 USB extension cable |
| |
V12H418P13 |
ELPAP07 USB Wireless LAN adaptor |
| |
V12H005M09 |
ELPAP09 USB Quick wireless USB key |
| |
|
|
