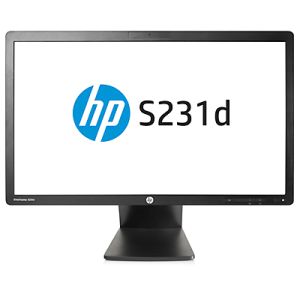

Create an instant workspace with this 23-in IPS LED Backlit Notebook Docking Monitor. With one USB cable connection from your notebook to display, you can access everything you need and get to work. Charge your HP Notebook battery and power your HP Notebook through the display’s DC power cable.
Full HD[2] IPS is just the beginning.
Get a large-screen 23-inch diagonal Full HD[2] IPS panel display that’s so much more—it’s your gateway to a streamlined, personalized workspace of your pre-selected, pre-arranged, and pre-connected peripherals.
Connect and charge.
Boost productivity and lower costs with a display that does double duty as a large format monitor and port replicator that delivers network connectivity, port expansion, and HP Notebook charging—all in one device.[1].
Expand your reach, not your wallet.
Eliminate the time and expense of travel and keep the lines of communication open with an integrated 720p HD[2] webcam and dual microphone plus virtual conferencing software so you can meet anywhere, anytime from the comfort of your desk.[3].
[1] Requires attaching both the USB downstream cable and the DC power cable from the monitor to the HP notebook.
[2] High-definition content required.
[3] Internet access required and sold separately.
Specifications
| Brightness |
250 cd/m |
| Certifications, compliances |
CB; CE; TUV-S; EAC; CUL; FCC; CSA; NOM; S-mark; VCCI; PSB; ISC; CCC; BSMI; C-Tick; E-standby; KC; CECP; CEL Grade 1; TCO Certified Edge; TCO Certified |
| Contrast ratio (typical) |
1000:1 static; 5000000:1 dynamic |
| Display features |
Plug and Play; Anti-glare; User programmable; Language selection; On-screen controls; LED Backlights; Pivot rotation; In plane switching |
| Display size (diagonal) |
23" |
| Input signal |
1 VGA; 1 DisplayPort 1.2 |
| Manufacturer Warranty |
Protected by HP, including a 3-year standard limited warranty. Optional HP Care Pack Services are extended service contracts that extend your protection beyond the standard warranties. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product. |
| Physical security |
Security lock-ready |
| Pixel pitch |
0.265 mm |
| Ports |
2 USB 2.0; 3 USB 3.0 (one upstream, two downstream); 1 audio; 1 headphone/line-out; 1 RJ-45 |
| Power consumption |
60 W (maximum); 38 W (typical); 2.2 W (standby) (Display) |
| Power requirements |
Input voltage: 100 to 240 VAC |
| Product dimensions (W x D x H) |
21.42 x 2 x 12.95 in |
| Response Time |
7 ms gray to gray |
| Tilt and Swivel Angle |
Tilt: -5 to +30; Swivel 360 |
| User controls |
Menu; Minus ("-"); Plus ("+") /Source; OK/Auto; Power |
| View Angle |
178 horizontal; 178 vertical |
| Warranty |
Protected by HP, including a 3-year standard limited warranty. Optional HP Care Pack Services are extended service contracts that extend your protection beyond the standard warranties. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product. |
| Webcam |
720p integrated HD with dual microphones and LED |
| Weight ( Imperial ) |
13.5 lb |
| Weight ( Metric ) |
6.12 kg |
|
Technical Information
| Number of Screens |
1 |
| Screen Size |
23" |
| Screen Mode |
Full HD |
| Panel Technology |
In-plane Switching (IPS) Technology |
| Screen Surface |
Anti-glare |
| Response Time |
7 ms |
| Adjustable Display Angle |
Yes |
| Aspect Ratio |
16:9 |
| Adjustable Display Pivot |
Yes |
| Horizontal Viewing Angle |
178 |
| Vertical Viewing Angle |
178 |
| Features |
Security Lock |
| Tilt Angle |
-5to30 |
| Swivel Angle |
360 |
| Backlight Technology |
LED |
|
Video
| Maximum Resolution |
1920 x 1080 |
| Contrast Ratio |
5,000,000:1 |
| Brightness |
250 Nit |
|
Interfaces/Ports
| USB |
Yes |
| USB Standard |
USB 3.0 |
| VGA |
Yes |
| Headphone |
Yes |
| DisplayPort |
Yes |
| Network (RJ-45) |
Yes |
|
Built-in Devices
| Built-in Devices |
Microphone |
| Webcam |
Yes |
|
Power Description
| Input Voltage |
120 V AC
230 V AC |
| Operating Power Consumption |
60 W |
|
Physical Characteristics
| Height |
13" |
| Width |
21.4" |
| Depth |
2" |
| Weight (Approximate) |
13.49 lb |
|
Miscellaneous
| Certifications & Standards |
- CB
- CE
- TUV-S
- EAC
- CUL
- FCC
- CSA
- NOM
- S-mark
- VCCI
- PSB
- ISC
- CCC
- BSMI
- C-Tick
- E-standby
- KC
|
|
Green Compliant
|
Yes |
| Green Compliance Certificate/Authority |
ENERGY STAR
CECP
China Energy Label (CEL)
TCO Certified Edge
TCO Certified Displays |
|
Warranty
