NJ520

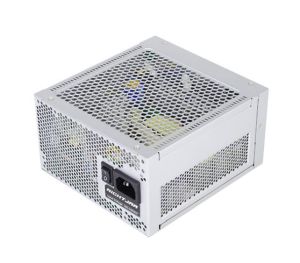

Nightjar 520W
Ultimate fanless power supply with 80 PLUS Platinum
Fanless thermal solution, Zero dBA acoustics
Introduction
SilverStones Nightjar NJ520 is a fanless power supply that offers users a whole new experience of quietness and stability. Its premium components and engineering helped it to achieve 80 PLUS Platinum level of efficiency, reducing wasted heat and enable an open grille design that can operate reliably without fan attached. This noise-less performance can be maintained with stringent electrical characteristics even under 40C operating environment.
As a versatile power supply, NJ520 has powerful +12V output of 43A for high-end system usage and its flexible, flat modular cables make assembly easy for improved case airflow. For professionals looking to build PCs or workstations for specialized settings such as recording studio or sound-optimized laboratories, the Nightjar series PSUs with their consistent emphasis on quality, stability, and reliability, are sure to satisfy.
SPECIAL FEATURES
- Fan-less thermal solution, 0 dBA acoustics
- High efficiency with 80 PLUS Platinum certification
- 100% modular cables
- Strict 2% voltage regulation and low ripple & noise
- 24/7 continuous power output with 40 operating temperature
- Class-leading single +12V rail
- PCI-E 8pin and PCI-E 6pin connectors support

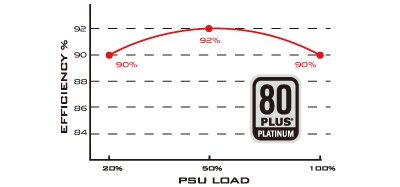

Designed for 80 PLUS Platinum level of efficiency to reduce wasted heat and save on electricity.

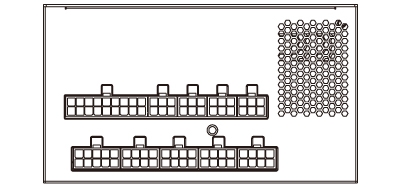

100% modular cable design for easy removal in a case with cable routed and tied down.

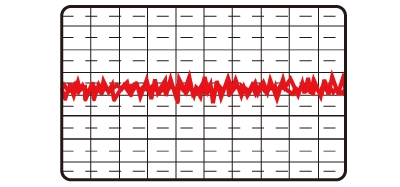

±2% regulation and low ripple & noise performance for high stability.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
Specifications
|
Model No.
|
SST-NJ520
|
|
Max. DC Output
|
520W
|
|
Load Range
|
|
|
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
|
|
20A |
20A |
43A |
2.5A |
0.5A |
|
|
/ |
/ |
/ |
/ |
/ |
|
|
0A |
0A |
0A |
0A |
0A |
|
|
2% |
2% |
2% |
5% |
10% |
|
|
1% |
1% |
1% |
1% |
2% |
|
|
50mV |
50mV |
120mV |
50mV |
120mV |
|
|
combined +3.3, +5V
|
100W
|
|
combined +12V
|
516W
|
|
Input Voltage
|
90V ~ 264V
|
|
Input Frequency Range
|
47Hz ~ 63Hz
|
|
PFC
|
Active PFC (PF>0.99 at full load)
|
|
Efficiency
|
89%~92% at 20%~100% loading
|
|
MTBF
|
100,000 hours
|
|
Operating temperature
|
0 ~ 40C
|
|
Protection
|
Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
No Load Situation
|
|
Connectors
|
1 x 24 / 20-Pin motherboard connector600mm
1 x 8 / 4-Pin EPS / ATX 12V connector650mm
2 x 8 / 6-Pin PCIE connector600mm
4 x SATA connector400mm / 120mm / 120mm / 120mm
2 x SATA connector300mm / 120mm
3 x 4-Pin Peripheral connector 400mm / 120mm / 120mm
2 x 4-Pin Peripheral connector 300mm / 120mm
1 x 4-Pin Floppy connector100mm
NJ520 is not compatible with PP05, PP05-E and PP06 cables.
|
|
Color
|
Silver
|
|
Cooling System
|
Fan Less thermal solution
|
|
Noise Level
|
0 dBA
|
|
Dimension
|
150 mm (W) x 86 mm (H) x 160 mm (D)
|
|
Weight
|
2.3 kg
|
|
Form factor
|
ATX
|
|
Certification
|
80 PLUS Platinum
|
|
Other
|
GPU Support list
Haswell CPU support
|
