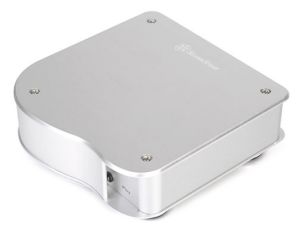

EB01-E | Evolution
The key to high quality computer audio
INTRODUCTION
For audiophiles with good sound system and sizable digital music collections, the need for a device that can reproduce genuine sound is critical. After a short and successful launch of its first audio product, the Ensemble EB01 in 2006, SilverStone is back with another USB DAC that is better in every way. To fully satisfy computer users with affinity for higher quality sounds, the EB01-E is equipped with the ability to resolve signal rates of up to 24bit/192 kHz thanks to its inclusion of TIs PCM1798 DAC chipset. Complementing it are XMOS XS1 TQ128 USB decoder, which supports asynchronous throughput for accurate sound reproduction and TIs NE5532 OP amp for connection to a power amplifier via integrated RCA output. With three methods of digital inputs via USB, Toslink optical, or RCA coaxial connection, the EB01-E is an excellent device for not only computer audiophiles, but also audiophiles with standalone CD players or other digital audio sources.
SPECIAL FEATURES
- High quality DAC with improved performance
- Classic SilverStone Ensemble exterior design
- Easy one touch button for USB, optical or coaxial input
- Support highest format of up to 24-bit/192kHz
- Utilizes premium XMOS XS1 TQ128 USB decoder for accurate sound reproduction
- Includes TI PCM1798 D/A converter for producing high quality analog signal
- Includes TI NE5532 OP amp for optimal analog output
Specifications:
|
Model No.
|
SST-EB01-EB (black)
SST-EB01-ES (silver) |
|
Color
|
Black or silver |
|
Material
|
Aluminum & steel chassis |
|
Input
|
Asynchronous USB, optical, coaxial |
|
Output
|
RCA |
|
Sampling resolution
|
16~24 Bit |
|
SAMPLING RATE(FS)
|
32~ 192 kHz |
|
USB Decoder
|
XMOS XS1 TQ128 |
|
D/A Converter
|
TI PCM1798 |
|
OP Amp
|
TI NE5532 |
|
Operating system support
|
Windows XP, 7, 8, MAC OS |
