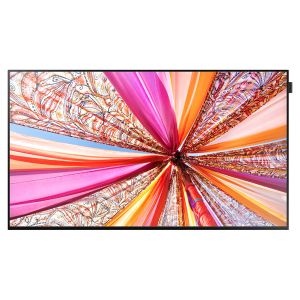

DB55D - DB-D Series 55" Slim Direct-Lit LED Display
The Samsung DB55D delivers advanced display technology in an affordable fashion. Create stunning and seamless video walls in full HD resolution thanks to an upgraded Samsung SMART Signage Platform (SSP) and full range of connectivity options. Combined with a sleek industrial design and slim 2" chassis depth, you can captivate your audience in a moment and leave a lasting impression on the 55" screen.
- Enhanced SSP System-on-Chip (SoC) Performance with Quad Core Processor
- Sleek Industrial Design with Symmetrical 10.5mm Bezel
- Slim 2" Chassis Depth with Slim-Direct LED Backlight Technology
- PC-less Touch Support with Optional Touch Overlay
Product Features
Enhanced SSP with Quad Core Processor
Experience enhanced SoC performance with a quad core processor. SSP is an integrated, open platform providing a powerful streamlined solution to reduce TCO in digital signage deployments through savings in hardware installation and operating costs.
Full Connectivity
Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include D-Sub, Component, Composite, DVI, HDMI, USB, SD, RS232C In/Out, IR In/Out and more.
Sleek Industrial Design
Slim-direct LED backlight technology delivers a sleek industrial design with a 2" chassis depth that is combined with a symmetrical 10.5mm bezel for an elegant look. LED also slims your TCO thanks to up to 50% energy savings over CCFL.
Wi-Fi Ready
Ready to expand your versatility even more, you can enjoy easy media sharing and screen control after installing Wi-Fi. Use AllShare® Cast (sold separately) over a Wi-Fi connection for simple content mirroring from a tablet or mobile phone to your display.
PC-Less Touch Support
The optional touch overlay accessory delivers a cost effective, PC-less touch solution that transforms your display into an interactive whiteboard. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.
Clean UI Design
A user-friendly interface provides an intuitive user experience from changing display settings to installing video walls and managing content schedules and templates. Helping to streamline installation and maintenance, users can effectively coordinate their signage.
Specifications
Display
Screen Size: 55"
Display
Brightness: 350 nits
Display
Resolution: 1920 x 1080
Series Name
|
| Series Name |
DB |
Display
|
| Panel Technology |
120Hz Slim D-LED BLU |
| Aspect Ratio |
16:9 |
| Contrast Ratio (Typical) |
5000:1 |
| Response Time |
8ms |
Connectivity
|
| Input |
Video: VGA (D-Sub 15 Pin), DVI-D, Component/Composite, HDMI, Audio: Stereo Mini Jack |
| Output |
Audio: Stereo Mini Jack |
| External Control |
RS232C (In/Out) thru Stereo Jack, RJ45 |
| Sensor |
IR, Ambient Light |
Power
|
| Power Supply |
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) |
86W / 176W |
| Power Consumption (Standby) |
< 0.5W |
Environmental Conditions
|
| Operating Temperature |
0C - 40C |
| Operating Humidity |
10%~80% |
Features
|
| Special |
Hardware: Super Clear Coating, Temperature Sensor, Videowall (15x15), Pivot Display, Clock Battery (80hrs Clock Keeping), SD Card Slot
Software: Magic Clone (to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, PC-less Videowall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch |
| SMART Signage Platform |
Yes |
| |
|
| Media Player Type |
Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0, Linux OS |
| VESA Standard Wall-Mount Interface |
400 x 400mm |
| Wi-Fi |
Yes |
| Built-in Speakers |
Yes |
Dimensions
|

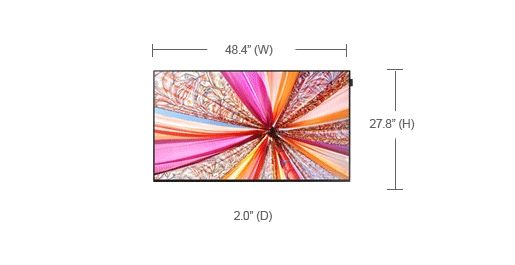

| Without Stand (W x H x D) |
48.4" X 27.8" X 2.0" |
| Packaging (W x H x D) |
53.1" X 31.9" X 5.8" |
| Bezel Width |
9.5mm (Top/Side), 15.0mm (Bottom) |
Weight
|
| Set |
33.5 lb. |
| Package |
42.5 lb. |
Service
|
| Standard Warranty |
3 Years On-Site (Parts / Labor / Backlight) |
Accessories
|
| Included in Box |
Quick Setup Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries |
| Optional Wall Mount |
WMN4270SD, WMN250MD |
| Optional Stand |
STN-L4055AD, STN-L4655E |
| Touch Overlay |
CY-TD55 |
| Optional Media Player |
Embbeded, SBB-C (Attachable) |
Green Management
|
| ENERGY STAR Certified |
Yes |
| RoHS Compliant |
Yes |
| Emission Standard |
EMC |
| Packaging Recyclability |
Packing Materials Recyclable |
Package Contents
|
| Manuals |
Included |
| Cables |
Included |
| Optional Accessories |
CML450D (Ceiling Mount), Foot Stand |
Features and specifications are subject to change without prior notification
