All stock codes associated to this product
JUH410, J5JUH410, J5-JUH410

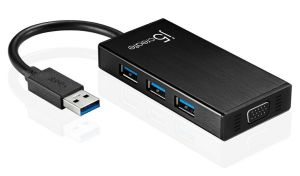

JUH410 USB 3.0 VGA & 3-Port HUB
The j5create JUH410 USB 3.0 VGA & 3-Port HUB as an external graphics card for your MAC or PC. It allows you to add an additional display and 3 USB 3.0 ports through your USB port.
With j5create multi-adapters, there is no need to open up your computer to add an expensive graphics card, you simply load the drivers, plug in the adapter to the USB port, then plug in the VGA monitor cable into the adapter and you are ready. It supports three viewing modes: primary, extended, mirror modes. With “plug & play” functionality between your computer and 2nd monitor or projector, you will be able to create a new visual environment in seconds.
j5create’s elegant multi-adapter series provides you with a fast and portable alternative solution.
Features
USB 3.0 Display
- Supports display resolution:2048 x 1152 @ 32bit
- Supports 1080P Video Playback
- Supports Display Modes: Primary, Extended, Mirror
- Display Rotation: 0°, 90°, 180°, 270°
USB 3.0 SuperSpeed
- USB 3.0 SuperSpeed ports
- Transfer rates of up to 5Gb/s, enable bulky file backup
- Backwards compatible with USB 2.0 and USB 1.1 device
- Hot-swapping connect / disconnect without powering down
- Plug & Play
- Compatible with Windows and Mac OS
Specifications
|
Interface
|
|
Host Interface
|
USB 3.0 Male Type-A connector
|
|
Video Interface
|
VGA-DB 15 pin Female connector
|
|
USB Port
|
USB 3.0 Female connector x 3 Ports
|
|
Power Jack
|
DC 5V (3.5mm)
|
|
Power
|
|
Power Mode
|
Bus-powered or Self-Powered
*** When you connect with high power-consumption external HDD or USB devices that need bus power more than 150mA. We recommend you to attach the AC/DC power adapter included in your devices, or purchase JUH410 AC/DC power adapter. (sold separately)
|
|
Functions
|
|
Display
|
Video Playback: 1080P
Display resolution: 2048 x 1152 @ 32bit
Display Modes: Primary, Extended, Mirror
Display Rotation: 0, 90, 180, 270
|
|
Physical Specifications
|
|
Dimensions
|

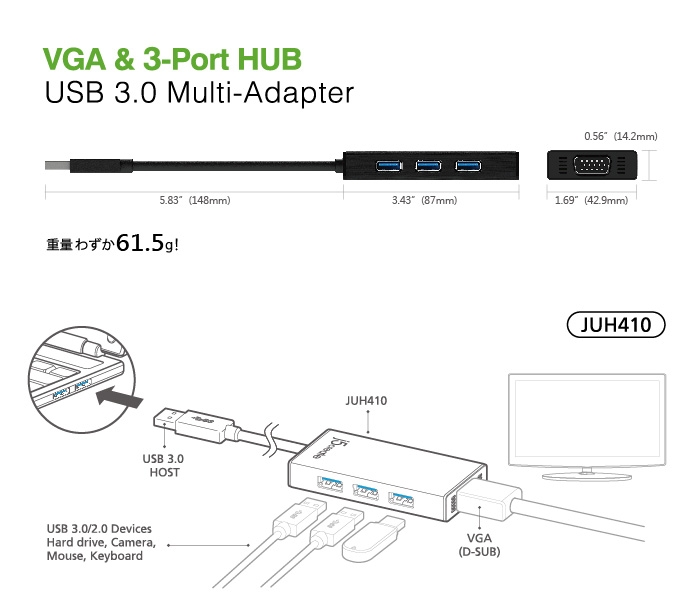

Main body: 42.9(W)x 87(H)x14.2(D) mm
Cable length: 14.8 cm
|
|
Weight
|
Approximately 61.5 g (including cable)
|
Video Resolutions and Color Depth Support
|
Aspect Ratio
|
Resolution
|
Color Depth
|
|
Wide Screen Display
|
|
16:9
|
2048 x 1152
|
16,32 bits
|
|
16:10
|
1920 x 1200
|
16,32 bits
|
|
16:9
|
1920 x 1080
|
16,32 bits
|
|
16:10
|
1680 x 1050
|
16,32 bits
|
|
16:9
|
1600 x 900
|
16,32 bits
|
|
16:10
|
1440 x 900
|
16,32 bits
|
|
16:9
|
1360 x 768
|
16,32 bits
|
|
16:10
|
1280 x 800
|
16,32 bits
|
|
15:9
|
1280 x 768
|
16,32 bits
|
|
16:9
|
1280 x 720
|
16,32 bits
|
|
Standard Display
|
|
4:3
|
1600 x 1200
|
16,32 bits
|
|
4:3
|
1400 x 1050
|
16,32 bits
|
|
5:4
|
1280 x 1024
|
16,32 bits
|
|
4:3
|
1280 x 960
|
16,32 bits
|
|
4:3
|
1152 x 864
|
16,32 bits
|
|
4:3
|
1024 x 768
|
16,32 bits
|
|
4:3
|
800 x 600
|
16,32 bits
|
Environments
Microsoft Windows 8.1, 8, 7, XP (32-bit or 63-bit)
Mac OS X 10.8 / 10.7 / 10.6
CPU: Intel 2 core Quad 2.33 GHz
RAM: 2 GB DDR2
Available USB port (USB 3.0 is recommended)
Note for Video Player:
Windows XP users: "Windows Media Player" is recommended for video playback
Windows XP users & MAC users: Some Windows XP & MAC products are not supported by USB 3.0 at this time, therefore we suggest USB 2.0 for 'office applications' only; Video Playback is not recommend due to USB 2.0 bandwidth limitations causing limited video performance.
Package Contents
JUH410 USB 3.0 VGA & 3-Port HUB
Quick Installation Guide
Driver CD
