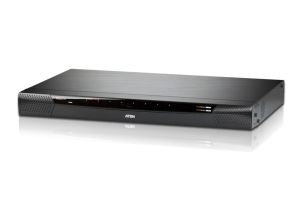

KVM over IP Switch
Atens new generation of KVM over IP switches - KN series allows local and remote operators the ability to monitor and access their entire data center over the network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.
To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power AssociationKVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches user interface.
KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system- is recorded and saved to a secure video file as evidence, without exception.
The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote serversallowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.
Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode, Mouse DynaSync, Adapter ID and Secure Serial Server Access. The secure access to serial-controlled devices includes network equipment, UNIIX servers, Linux servers, Sun servers and many more serial consoles. It provides installation without needing expensive serial dongles.
With dual on-board NICs and dual power supplies, the KVM over IP switches are built for reliability, to ensure 24/7 availability of remote access to all server room computers.
With Aten KVM over IP switches IT administrators can manage their server rooms and data centers from practically anywhereminimizing travel costs and MTTR (Mean Time to Repair)ensuring the highest availability of data center services possible.
Package Contents
- 1x KN1108v KVM over IP Switch
- 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
- 2x Power Cords
- 1x Laptop USB Console Cable
- 1x Rack Mount Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
Features
Hardware
- High port density RJ-45 connectors for up to 8 ports in a 1U housing
- Laptop USB Console (LUC) - A dedicated USB port directly connects to a laptop for easy Console operation
- One bus for remote KVM over IP access
- Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
- Blade server support
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides PS/2 and USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Audio enabled
- Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server
- Dual Power Supply
- High video resolution - up to 1600 x 1200 @ 60Hz(40m with KVM Adapter Cable KA7000 series) /1920 x 1200* @ 60Hz(30m) for local and remote sessions
- Monitor and control up to 8 computers on a single level, or control up to 128 computers in a two-level cascade **.
* 1920 x 1200 (Reduced blanking) only supported by KA7175, KA7176, and KA7177
** Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, andKH1516A
Management
- Up to 64 user accounts - up to 32 users simultaneously share the control
- End session feature - administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Critical system event notification via SMTP email; SNMP trap and Syslog support
- Firmware upgradeable
- Out-of-Band Access-Modem dial-in/dial out/dial back support
- Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports,without having to re-configure the adapters and switches
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Integration with ALTUSEN CC2000 Management software
- Power Association enables the switchs KVM ports to be associated with an ATEN/ALTUSENS PDUs power outlets for remote power management of the servers from the switchs interface
- Power Over the NET integration for remote power control, plus support for 3rd party power distribution units (PDUs)
- Manage browser access methods (Browser, http, https)
- IPv6 capable
Ease-to-Use Interface
- Local Console, browser-based, and AP GUIs offer a unified multilanguage interface to minimize the user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
- Magic Panel - a special hideaway control panel with configurable function icon
- Full-screen or sizable and scalable Virtual Remote Desktop
- Panel Array Mode available to both local console operators and remote access users
- Keyboard/Mouse Broadcast - keyboard and mouse inputs can be duplicated on all the attached servers
- Video syncing with the local console - local console monitors EDID information stored on the KVM Adapter Cables for display resolution optimization
Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports SSL 128-bit data encryption and RSA 1024-bit certificates to secure users log in from browser
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
- IP/MAC Filter for enhanced security protection
- Configurable user and group permissions for server access and control
- Automated CSR creation utility and third party CA certificate authentication
Virtual Media
- Virtual media enables file applications, OS patching, software installation and diagnostic testing
- Works with USB enabled servers in operating system and BIOS level
- Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote users
- Mouse DynaSync - automatically synchronizes the local and remote mouse movements
- Keyboard pass through support
- Exit Macros support
- On-screen keyboard with multilanguage support
- BIOS-level access

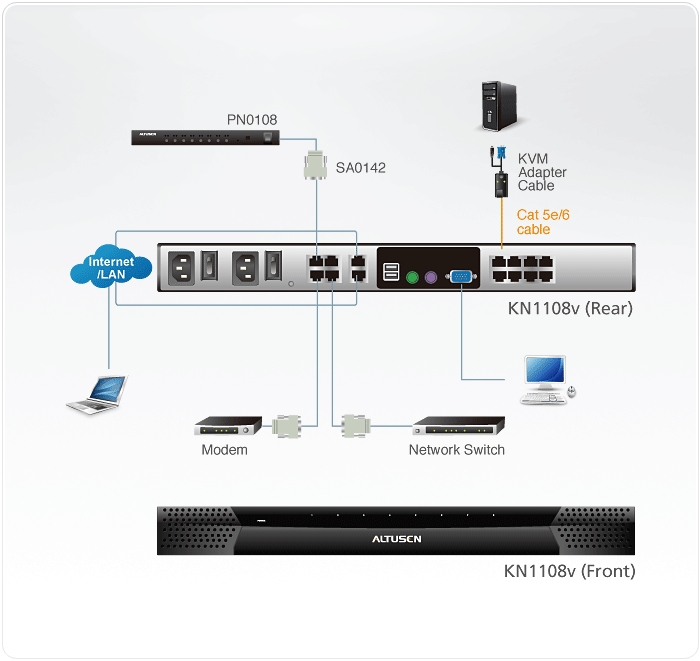

Diagram
Specifications
| Computer Connections |
Direct |
8 |
| Max |
128 (via Cascade) |
| Port Selection |
Pushbutton, GUI, Hotkey |
| Connectors |
Console Port |
Keyboard |
1 x 6-pin Mini-DIN Female (Purple)
1 x USB Type A Female (White) |
| Video |
1 x HDB-15 Female (Blue) |
| Mouse |
1 x 6-pin Mini-DIN Female (Green)
1 x USB Type A Female (White) |
| KVM Ports |
8 x RJ-45 Female |
| Power |
2 x 3-prong AC socket |
| LAN |
2 x RJ-45 Female |
| PON |
1 x RJ-45 Female |
| Modem |
1 x RJ-45 Female |
| Serial |
2 x RJ-45 Female |
| USB |
3 x USB Type A Female (White) |
Laptop USB Console
(LUC) Port |
1 x USB Mini Type B Female (Black) |
| Audio |
2 x Audio Jack Female |
| Switches |
Reset |
1 x Semi-recessed Pushbutton |
| Power |
2 x Rocker |
| Port Selection |
2 x Pushbutton |
| LEDs |
On Line |
8(Green) |
| Power |
1 (Blue) |
Link
10 / 100 / 1000 Mbps |
1 (Green / Green / Orange) |
| Emulation |
Keyboard/Mouse |
PS/2 / USB (PC, Mac, Sun) / Serial |
| Video |
Local |
1600 x 1200 @ 60Hz (40m with KVM Adapter Cable KA7000 series);
1920 x 1200*@60 Hz (30m) DDC2B |
| Remote |
1600 x 1200 @ 60Hz (40m with KVM Adapter Cable KA7000 series);
1920 x 1200*@60 Hz (30m) DDC2B |
| Scan Interval |
1-255 Seconds |
| I/P Rating |
100-240VAC; 50-60Hz; 1.0A |
| Power consumption |
Single Power |
120V/15W; 230V/16W |
| Dual Power |
120V/17W; 230V/17W |
| Environment |
Operating Temp. |
0 - 50C |
| Storage Temp. |
-20 - 60C |
| Humidity |
0 - 80% RH, Non-condensing |
| Physical Properties |
Housing |
Metal |
| Weight |
3.57 kg |
Dimensions
( L x W x H ) |
43.84x28.78x4.40cm |
