Network Video Recorder with HDMI Output
DNR-312L
Overview
The DNR-312L mydlink One-bay standalone NVR is a standalone storage device that can record video from up to nine network cameras to its dedicated HDD storage without requiring users to turn on their PC. Its built-in HDMI port can be used to display the cameras on a standard HDTV monitor. Empowered by mydlink technology, the DNR-312L also supports real-time remote monitoring and playback via a web browser using the mydlink website or the NVRs web GUI. The DNR-312L has the ability to continue recording live while a user is viewing or searching footage at the same time. With complete video management, the DNR-312Ls display and playback ability make it a convenient and effective video recorder.
A True Standalone Solution
The HDMI port on the DNR-312L can be connected to a high definition TV or monitor, making it a true standalone security solution. Plug a mouse into one of the USB ports and you can control what is displayed on the monitor, play back recorded video and use the digital pan/tilt/zoom functions.
mydlink Technology on your Mobile Device
Empowered with mydlink technology, the DNR-312L enables users to remotely view and manage mydlink enabled devices from anywhere via a web browser using the mydlink website or the NVRs web interface. Additionally, using the mobile app means you can access and monitor your DNR-312L from your mobile devices.
Versatile Monitoring
Users have a variety of options for viewing and organizing camera footage on-screen. If multiple cameras have been set up in a property, users can simply drag and drop video from selected cameras to the viewing area. Camera names and recording statuses are clearly displayed for easy reference. Users can control pan/tilt/zoom (PTZ) functions2 from within the interface or by directly clicking on the video.
Secure Storage
Administrators may filter external connections to the NVR by IP address, limiting access and thus increasing security. Administrators may also choose access privileges for users by specifying the cameras they may access. The recorded data can be backed up to additional storage locations periodically or whenever needed.
Extensive Recording Functionality
The DNR-312Ls clear interface allows for easy configuration including compression, resolution, and frame rate for all connected cameras. Once the cameras have been set up, recordings can be made continuously, or according to a user-defined schedule. The NVR also provides event recording based on specific triggers such as when motion is detected.
Convenient and Reliable
The DNR-312L can manage multiple network cameras, providing direct access to view live video and play recorded data over the Internet from anywhere, anytime. Complete video management and the ability to playback and record new video simultaneously, the DNR-312L is an extremely convenient and effective video recorder. Moreover, the small size and portability of the DNR-312L make it easy to deploy in any location.
Hard drive not included.

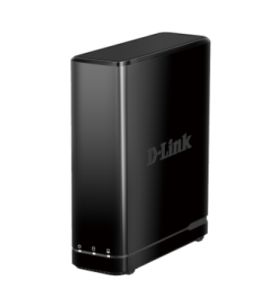

Actual product appearance may differ from the image displayed on this page.
Features
Channel Number
9 channels
Compression Format
H.264
MPEG-4
MJPEG
Video Output
HDMI
Display Mode
1, 4, 9 split screen
Auto Scan
PTZ Control
Auto Pan/Petrol
Audio
2-way
Recording Type
Schedule
Manual
Motion Event
Edge Motion Detection by Camera
Pre-Recording Period
60 seconds
Post-Recording Period
300 seconds
Audio Recording
Auto/Scheduled Recycling
Simultaneous Playback
9 channels
Video Control
Play, stop, pause, forward, backward, next, previous
Digital Zoom
16X
Audio Control
Video Search
Time
Event
Camera
Video Export Format
AVI
Image Export File Format
BMP
JPG
Tamper-Proof (Digital Watermark)
Event to E-mail
Event to Alarm
Event by Signal Lost
Event by Disk Full
Client Viewer
Web browser
mydlink View NVR App
Remote View
Max Concurrent Channel per Client
9
Playback Viewer
Playback manager via browser
Number of E-Map Layer
3
E-Map Image Format
BMP
JPG
Supported Camera
D-Link
Auto Surveillance VLAN support
Number of HDD Bay
1
HDD Configuration
Single
Network Interface
1 x Gigabit port
Backup Options
USB
Auto Boot-Up (Power Recovered)
Specifications
GENERALStandards
- IEEE 802.3/u/z
- Auto MDI/MDI-X
- SATA I, II, III
HDD
- Reformat Disk
- Up to 4TB HDD
- EXT3 file system
Two Reset Modes
- Reset firmware GUI button
- HW reset button (hold for 10 seconds)
Reset Button
PERFORMANCEFlash ROM
RAM
Network Interface
- Gigabit Ethernet LAN port (10/100/1000 Mbps)
I/O Ports
- RJ45 Port
- DC-in jack
- HDMI
- 2 x USB 2.0 port (Mouse, UPS, Flash Disk, HDD with external power)
- 3.5mm audio input x 1, output x 1
Power Adapter
SOFTWARE FEATURESOS
Supported Cameras
- Supports all D-Link network cameras and megapixel resolution
System Requirements for Web Interface
- Browser: Internet Explorer, Firefox, Chrome, or Safari
Recording Performance
- First Video Profile:
- H.264 at 720p at 135 fps
- MPEG-4 at 720P at 135 fps
- MJPEG at 720P at 30 fps
- Secondary Video Profile:
- H.264 at VGA at 270 fps
- MPEG4 at VGA at 270 fps
- MJPEG at VGA at 60 fps
Camera Search
Audio and Video Recording
- Synchronized audio & video recording
Compression Format
Video Setting
- Resolution, quality, frame rate, enable audio, go to camera interface
Recording Type
- Record by schedule, manual, and event-based recording
- Motion-triggered recording
Remote Live View
- Supported via browser
- Supports mydlink portal
Remote Live View Control
- Live view, preset/go, patrol, focus, PTZ functions, snapshot, full screen, digital zoom
- e-map
Remote Playback Control
- Playback with normal, fast forward/rewind and step forward/rewind
Remote Playback
- Supported via browser and NVR client
- Playback system with timeline GUI, search by event, area, cameras, date, and time
- Browser or NVR Remote Client support four channel simultaneous playback
- Digital zoom
Overwrite Recording
- Auto recycling when disk storage is full
File Export
- Export videos to AVI or ASF file
- Export images to BMP or JPG file
User Account
- Additional accounts can be created to allow users system access and specify authorization for camera channels, PTZ
DDNS
- D-Link DDNS and DynDns server support
System Time
- Set the system time (D-Link NTP, input time, sync with computer, Daylight Saving Time)
Remote Backup
- Remote backup software can backup raw data to redundant storage
System Status
- Camera status
- Still picture EMAP support
- System status
Network Service Protocols
- IPV4, ARP, TCP, UDP, ICMP
- DHCP Client
- NTP Client
- DNS Client
- DDNS Client
- SMTP Client
- FTP Client
- HTTP Server
- IP filtering
- UPnP
- HTTPS
User Interface
- HTTP Web browser
- mydlink portal
- Smart phone
- NVR Search utility
Package Contents
- mydlink One-bay standalone NVR
- Power Adapter
- Ethernet Cable
- Quick Installation Guide
- CD-ROM with:
- Software
- Product Documentation
PHYSICALWeight
Maximum Power Consumption
Temperature
- Operating: 32 to 104F (0 to 40C)
- Storage: 32 to 104F (0 to 40C)
Humidity
Certifications
Dimensions
- 2" W x 6" D x 6.8" H (49.8 mm W x 141.6 mm D x 173 mm H)
