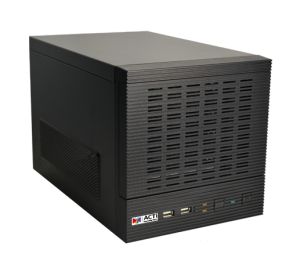

ENR-140 16-Channel 4-Bay Desktop Standalone NVR
Main Features
- 4-bay Desktop
- Manage up to 16 cameras or video encoders
- Recording up to 16 Channels
- Live view local up to 16 Channels, remote up to 16 Channels
- Synchronized playback local up to 16 Channels
- Export video with RAW and AVI formats
- Event trigger, response and notification
- Mobile Client, Web Client
- 16-channel free license included
- ONVIF Conformant
PRODUCT SPECIFICATION
General
Full Name: ACTi Standalone Network Video Recorder ENR-140
Maximum Number of Clients: 1 local, 2 remote
Maximum Number of Cameras: 16
Video Compression: H.264
Audio Compression: PCM, G.711 a-law/u-law (Only support local recording and remote live view/playback, not support local live view/playback)
Maximum Camera Resolution: Up to 4-Megapixel (local display), Up to 10-Megapixel (remote display)
Live View
Display Layout Mode: 1, 2, 4, 6, 8, 9, 10, 12, 13, 16
Layout Tour (Auto Patrol): Automatic switch between different display layouts
Digital Panel: Zoom in digitally by mouse
Event status: Display status for network/record/motion/DI/video loss upon every video region
Dual Stream Management: Live view of stream 1 or stream 2 of dual stream devices
PTZ
Control: Pan, tilt and zoom controls; speed control
Preset Points and Tours: Go/set preset points
Number of Preset Points: 32
Joystick: USB based joystick supported
Default Protocol: URL command
Recording
Scheduled Recording: Record video with user defined schedule
Event Recording: Record video when the alarm event is triggered, including the pre-event buffered video clip
Event Speed-up: Recording Record I frame only in normal status, and record full frames when the alarm event is triggered
Manual Recording: Instant recording upon mouse click
Recording Frame Rate: Max 480 fps total; Max 30 fps per camera
Maximum Recording Throughput: 48 Mbps
Dual Stream Management: Recording of stream 1 or stream 2 of dual stream devices
Storage
Interface: Serial ATA
Maximum HDD Capacity: 4T x 4
HDD Bay: Maximum 4 disks (disk not included)
Search & Playback
Time Based Video Search: Search video recordings by time, channel or bookmark
Event Based Video Search: Search event triggered video recordings
Playback Control: Forward and backward playback with speeds 1/2x-1x-32x; pause; stop
Synchronized Playback: 16 channels
Manual Snapshot: Create snapshot from playback for export
Video Cropping: Crop a short video clip from long recording file and save it as an independent file; video clip length:(1-30mins)
Video Export: Export video clips in AVI/RAW format
Event Management
Event Trigger: Video motion detection; External device through digital input; Network loss and recovery
Event Response: Record video; Play alert beep; Activate external device through digital output; E-mail notification with snapshots; Enlarge; video loss; Pop-up instant playback; Go to PTZ preset point
System
Permission Control: Multi-group/users, liveview/playback/setup/remote level permission
Operating System: Embedded Linux
System Status Monitor: Real time status reports on remote browser
Language Multi-language support
Remote Access
PC Web Browser: Microsoft Internet Explorer 9, 10 or 11
Remote Client PC System Requirement: Intel Core 2 Quad 2.66 GHz, 32/64-bit, 4GB RAM
Mobile Client Program: Mobile device application (ACTi Mobile Client) supports live view, PTZ control, event or time based search and playback Supported devices: iPhone, iPad, iTouch and Android device
Hardware
Dimensions (W x H x D): 328 mm x 204 mm x 214 mm ( 12.9" x 8.0" x 8.4")
Weight: 5.32kg
Operating Temperature: 0°C~ 40°C (32°F ~ 104°F)
Operating Humidity: 10% ~ 85% RH
Power Source / Consumption: 100-240V AC 50/60 Hz ; 40W
Bundled Accessories: Warranty Card / Power cord (US type) / QIG / Mouse / Universal Converter / HDD screws x 16
Approvals: ENR-140: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B) ; Adapter: CE, FCC, UL, PSE, Efficiency Level V
USB: USB 2.0, 2 ports
Ethernet Port: LAN1: 1000Base-T ; LAN2: 10/100Base-T (WAN port)
Display port: HDMI
Integration
Unified Solution: Fully compatible with ACTi cameras, encoders and CMS V2.0
Open Platform Solution: Support ONVIF compliant devices
