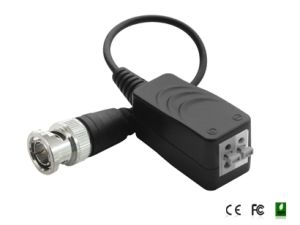

Folksafe FS-4201SR 1-CH Mini Passive Video Balun with 15cm Mini-Coax Pigtail Lead/Push Pin Terminal

IMG 1 of 1
No Longer Available
Part Number:
367285
(?) Brand:
Folksafe
Manuf No:
FS-4201SR
FS4201SR
Shipping Weight:
0.07 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
FS4201SR, FS-4201SR
1-CH Mini Passive Video Balun with 15cm Mini-Coax Pigtail Lead/ Push Pin Terminal

Description

Folksafe: FS-4201SR

1-CH Mini Passive Video Balun with mini-coax pigtail lead
Push pin terminal connection;too-less installation in less than 1 minute
Built-in TVS for surge protection

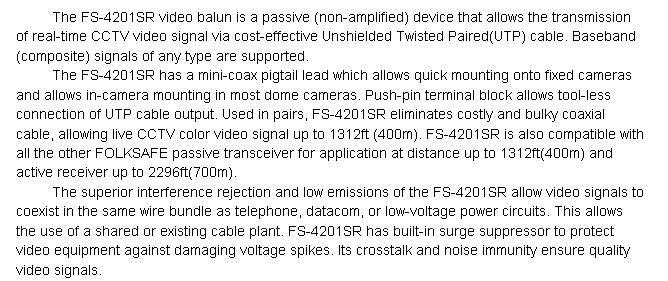

Overview


Wire and Cable Recommendations

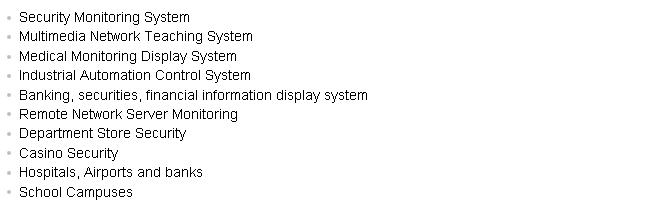

Applications

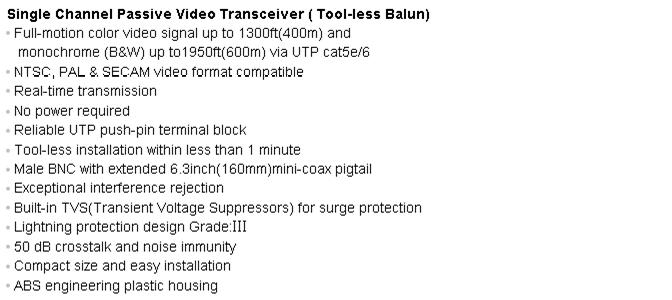

Features


Specifications

Model FS-4201SR
Product Name Single Channel Passive Video Transceiver
Applied Devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video Video Format PAL, NTSC, SECAM
Operating Frequency DC to 5MHz
Max Distance UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m)
Common-mode/Differential-mode rejection 15 KHz to 5 MHz 60 dB typ
Impedance Coax, Male BNC 75 unbalanced
UTP, two push-pins terminal block 100 balanced
Attenuation 1.5 dB typ Max
Wire Type Network Wiring One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
Category Type 2 or better
Impedance 100 20 ohms
DC Loop Resistance 52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance 19 pF/ft max (62 pF/m max)
Power No external power required
Connector Video input/output Male BNC connector
Video input/output Tool-less push-pin terminal block
Protection Surge Protection renewable solid state surge protection
Video Input 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Video Output 2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Mechanical Housing ABS engineering plastic
Body Color Black
Dimensions(L*W*H) 38.4*18.6*19.5mm (BNC connector & cable excluded)
Net Weight 40g
Environmental Operating Temperature -20 ~ 70 C
Relative Humidity 0~95% (non-condensing)
Storage Temperature -40 ~ 150 C


No additional files, specification sheets, guides or documentation found for product.
