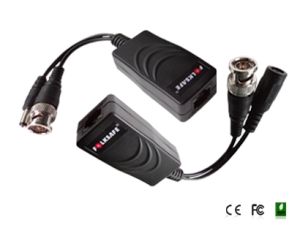

Folksafe FS-4301VP 1-CH Passive Video & Power Balun (Transmitter + Receiver), 12V/24V

No Longer Available

Part Number:

367286

(?) Brand:

Folksafe

Manuf No:

FS-4301VP
FS4301VP

Shipping Weight:

0.11 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

FS4301VP, FS-4301VP

1-CH Passive Video & Power Balun ( Transmitter + Receiver ), 12V/24V

FS-4301VP

Description

Folksafe: FS-4301VP

1-CH Passive Video & Power Balun
RJ45 Jack for UTP cat5e/6 cable
12V/24V DC/AC are both workable

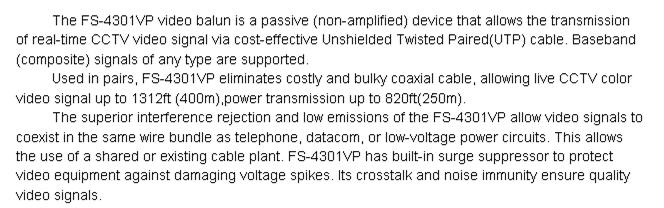

Overview

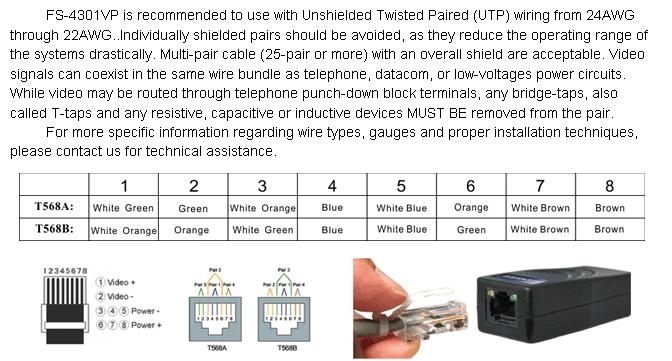

Wire and Cable Recommendations

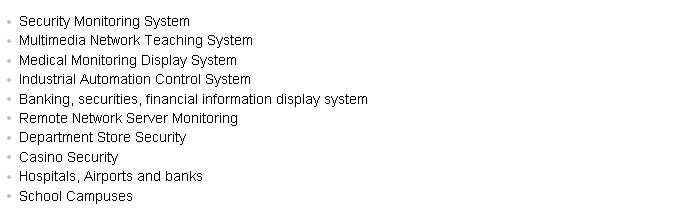

Applications

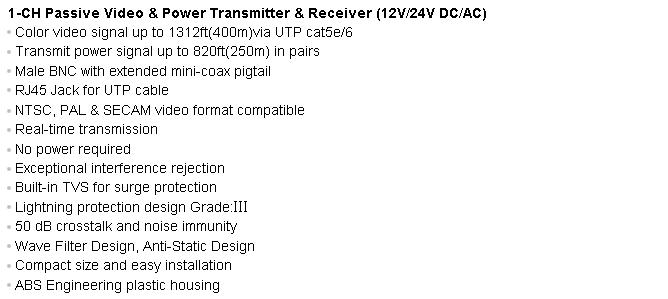

Features

Specifications

Model	FS-4301VP
Product Name	Single Channel Passive Video and Power Transmitter & Receiver
Applied Devices	CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video	Video Format	PAL, NTSC, SECAM
Operating Frequency	DC to 5MHz
Max Distance	UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m)
Common-mode/Differential-mode rejection	15 KHz to 5 MHz 60 dB typ
Impedance	Coax, Male BNC 75 unbalanced UTP,RJ45 100 balanced
Attenuation	1.5 dB typ Max
Wire Type	Network Wiring	One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
Category Type	2 or better
Impedance	100 20 ohms
DC Loop Resistance	52 ohms per 1,000ft (18 ohms per 100m)
Differential Capacitance	19 pF/ft max (62 pF/m max)
Power	Power Input	No external power required
Power transmission	12V/24V,DC/AC, up to 820ft(250m) via UTP cat5e/6
Connector	Video input/output	Male BNC connector
Video input/output	RJ45 Jack
Protection	Surge Protection	renewable solid state surge protection
Video Input	2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Video Output	2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Mechanical	Housing	ABS engineering plastic
Body Color	Black
*Dimensions(LWH)*	60.42920.4mm (BNC connector & cable excluded)
Net Weight	60g
Environmental	Operating Temperature	-20 ~ 70 C
Relative Humidity	0~95% (non-condensing)
Storage Temperature	-40 ~ 150 C
