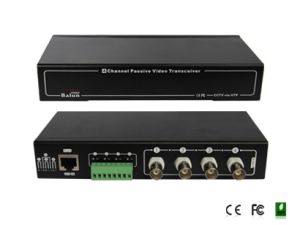

Folksafe FS-4504SR-II 4-CH Passive Video Balun (Small And Compact), RJ45 And Detachable Terminal Blocks - For UTP CAT5E/6

No Longer Available

Part Number:

367287

(?) Brand:

Folksafe

Manuf No:

FS-4504SR-II
FS4504SRII

Shipping Weight:

0.41 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

FS4504SRII, FS-4504SR-II, 9341756003145

4-CH Passive Video Balun (Small And Compact), RJ45 And Detachable Terminal Blocks For UTP CAT5E/6

Description

Folksafe: FS-4504SR

4-CH Passive Video Balun

Dimensions: 180*102*33mm ( BNC connector+mounting bracket included)

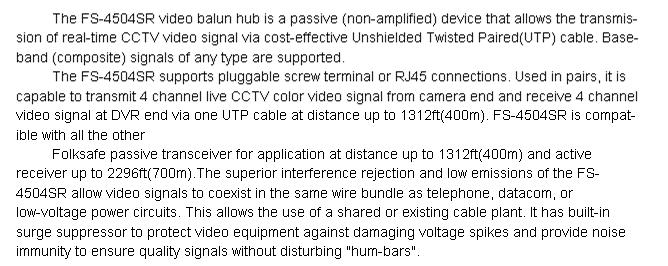

Overview

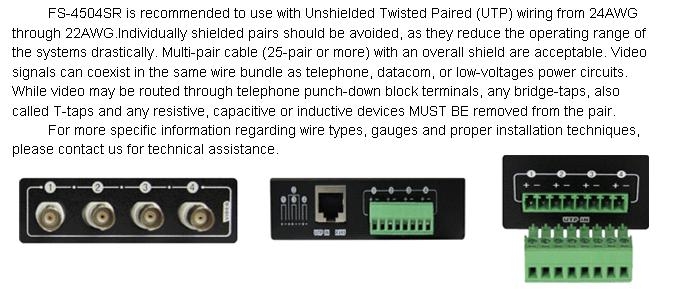

Wire and Cable Recommendations

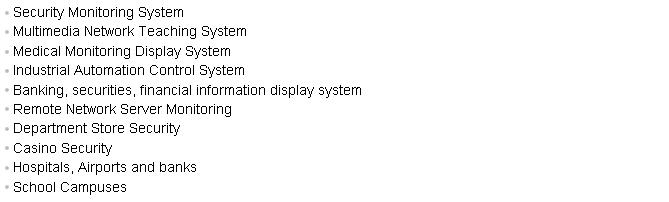

Applications

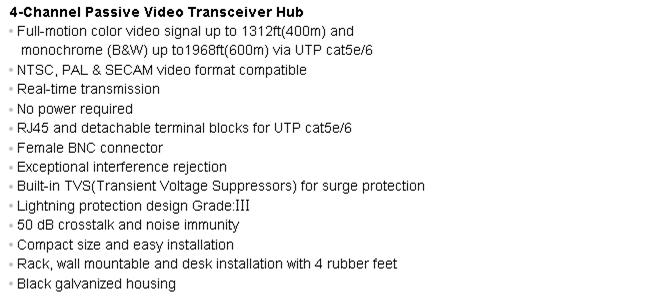

Features

Specifications

Model		FS-4504SR
Product Name		4 Channel Passive Video Transceiver Hub
Applied Devices		CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video	Video Format	PAL, NTSC, SECAM
	Operating Frequency	DC to 5MHz
	Max Distance	UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m)
	Common-mode/Differential-mode rejection	15 KHz to 5 MHz 60 dB typ
	Impedance	Coax, female BNC 75 unbalanced
	Impedance	UTP, screw terminal block or RJ45 100 balanced
	Attenuation	1.5 dB typ Max
Wire Type	Network Wiring	One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
	Category Type	2 or better
	Impedance	100 20 ohms
	DC Loop Resistance	52 ohms per 1,000ft (18 ohms per 100m)
	Differential Capacitance	19 pF/ft max (62 pF/m max)
Power	No external power required
Connector	Video input/output	Female BNC connector
Connector	Video output/input	pluggable screw terminal block and RJ45 for UTP ( select one connection)
Protection	Surge Protection	renewable solid state surge protection
	Antistatic	YES
	Video Input	2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
	Video Output	2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Mechanical	*Dimensions(LWH)*	BNC connector & mounting bracket excluded
	*Dimensions(LWH)*	1808532mm
	Housing	Galvanized
	Body Color	Black
	Net Weight	480g
Environmental	Operating Temperature	-20 ~ 70 C
	Relative Humidity	0~95% (non-condensing)
	Storage Temperature	-40 ~ 150 C
