All stock codes associated to this product
17MB15PB, 17MB15P-B, 8806087110876
Versatile adjustment for the office

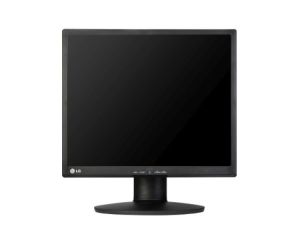

17 LED Monitor
17MB15P
- Pivot, Height, Tilt adjustment
- 16.7M colours supported
- SXGA resolution (1280x1024)
Features
Key Features
Pivot Height
Tilt Adjustment
Design, features and specifications subject to change without notice. Screen images simulated and/or dramatised. Some features in videos may not be available on all models. Please refer to the TECHNICAL SPECIFICATIONS tab for a complete list of features by model.
Technical Specifications
Panel
Screen Size: 17" (43cm)
Panel Technology: TN
Aspect Ratio: 5:4
Native Resolution: 1280 x 1024 (SXGA)
Brightness: 250 cd/m2
Contrast Ratio: 1000 : 1 (Native)
Dynamic CR: 5M:1
Response Time: 5ms (Typical)
Viewing Angle: 170° x 160°
Supported Colours: 16.7M Colours
Surface Treatment: Anti-glare
REAR INPUT CONNECTIONS
Digital: DVI-D (1), D-Sub (1)
Physical Features
Set (with stand) Dimension (W x H x D ): 370mm x 408mm x 242mm
Set (without stand) Dimension (W x H x D): 370mm x 315mm x 62mm
Set (with stand) Weight: 4.33kg
Set (without stand) Weight: 2.3kg
VESA™ Standard Mount Interface: 75mm x 75mm
Special Features
Additional: DDC/CI, HDCP, Intelligent Auto (Auto Adjustment), Plug & Play, Windows 7
Stand: Tilt -5º (Front) ~ 25º (Rear), Height adjust (110mm), Pivot (-5º ~ 95º)
Environment Conditions
Operation Temperature: 10 °C to 35 °C
Operation Humidity: 10 % to 80 % (non-condensing)
Power
Power Supply: 100-240V~ 60Hz
Power Consumption: 17W
Sleep Mode: 0.5W
Power Off: 0.5W
Power Type: Built-In-Power
STANDARD (CERTIFICATION)
Comparative Energy Consumption: 54 (kWh/Year)
Star Rating: 5½ (Stars)
Active Standby: 0.21 (W)
Safety: CB-Scheme
EMC: FCC Class "B"/CE, C-tick
ErP/US EPA: No / US EPA 6.0
Accessories
Included: Power Cable, D-Sub, DVI-D
Warranty: 3 Year Parts and Labour
