HOME / Back -> KVM/Switch Boxes -> Video -> ATEN

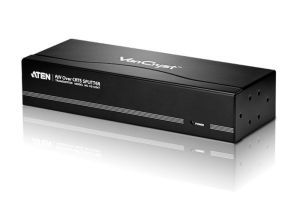

ATEN VS1204T 4-Port A/V Over Cat 5 Splitter - Superior Video Quality Up To 1920x1200@60Hz, Audio Enabled (Mono), Built-In 8KV/15KV ESD Protection, Rackmountable

IMG 1 of 1
No Longer Available
Part Number:
367418
(?) Brand:
ATEN
Manuf No:
VS1204T-AT-U
VS1204TATU
Shipping Weight:
1.9 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
VS1204TATU, VS1204T-AT-U, ATVS1204TATU, ATVS1204T-AT-U, 4710423777316
VS1204T

4-Port A/V Over Cat 5 Splitter

Overview

The VS1204T A/V Over Cat 5 Splitter is a cost-effective and efficient solution for sending high quality audio and video content to multiple displays. Connect to an ATEN A/V Over Cat 5 Receiver* via Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the single input source.

The VS1204T A/V Over Cat 5 Splitter is ideal for any professional A/V installation that requires multimedia content to delivered to multiple destinations.

Compatible Receiver Units:

VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew

Features

  • One audio/video input to 4 audio/video outputs via Cat 5e cable
  • Supports local display + 4 remote displays
  • Supports up to 225 MHz bandwidth
  • Uses Cat 5e cable to extend displays up to 300 m
  • Superior video quality up to 1920 x 1200@60Hz
  • Audio enabled (mono)
  • Built-in 8KV/15KV ESD protection
  • Rack-mountable

VS1204T Diagram

Specifications

Connectors Video In 1 x HDB-15 Male (Blue)
Video Out 1 x HDB-15 Female (Blue)
Audio In 1 x Mini Audio Jack Female (Green)
Audio Out 1 x Mini Audio Jack Female (Green)
Unit to Unit 4 x RJ-45 Female
Power 1 x DC Jack
LEDs Power 1 (Green)
Video 1920x1200 @ 60Hz
Cable Distance 300 m
Power Consumption DC5.3V, 1.33 W
Environment Operating Temp. 0-50C
Storage Temp. -20-60C
Humidity 0-80% RH, Non-condensing
Physical
Properties		 Housing Metal
Weight 0.59 kg
Dimensions
( L x W x H )		 20.00 x 7.51 x 4.20 cm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 months*

Full manufacturers warranty details are available at the manufacturers web site.
