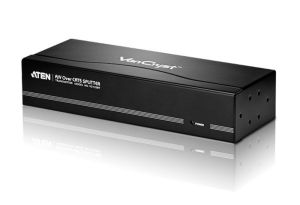

VS1208T
8-Port A/V Over Cat 5 Splitter
Overview
The VS1208T A/V Over Cat 5 Splitter is a cost-effective and efficient solution for sending high quality audio and video content to multiple displays. Connect to an ATEN A/V Over Cat 5 Receiver* via Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the single input source.
The VS1208T A/V Over Cat 5 Splitter is ideal for any professional A/V installation that requires multimedia content to delivered to multiple destinations.
Compatible Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
Features
- One audio/video input to 8 audio/video outputs via Cat 5e cable
- Supports local display + 8 remote displays
- Supports up to 225 MHz bandwidth
- Uses Cat 5e cable to extend displays up to 300 m
- Superior video quality up to 1920 x 1200@60Hz
- Audio enabled (mono)
- Built-in 8KV/15KV ESD protection
- Rack-mountable

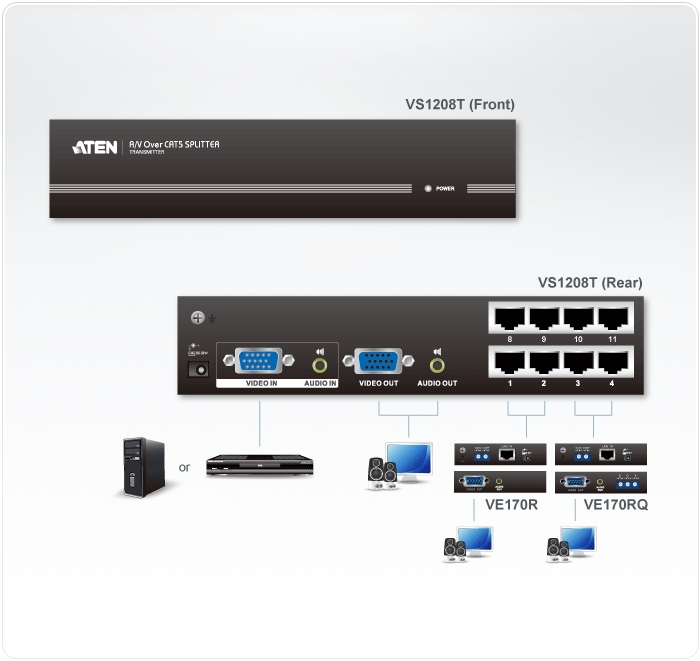

Diagram
Specifications
| Connectors |
Video In |
1 x HDB-15 Male (Blue) |
| Video Out |
1 x HDB-15 Female (Blue) |
| Audio In |
1 x Mini Audio Jack Female (Green) |
| Audio Out |
1 x Mini Audio Jack Female (Green) |
| Unit to Unit |
8 x RJ-45 Female |
| Power |
1 x DC Jack |
| LEDs |
Power |
1 (Green) |
| Video |
1920x1200 @ 60Hz |
| Cable Distance |
300 m |
| Power Consumption |
DC5.3V, 1.64 W |
| Environment |
Operating Temp. |
0-50C |
| Storage Temp. |
-20-60C |
| Humidity |
0-80% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
0.64 kg |
Dimensions
( L x W x H ) |
20.00 x 7.51 x 4.20 cm |
