All stock codes associated to this product
PTEW540E, PT-EW540E, 13PTEW540E, 13PT-EW540E, 5025232666201

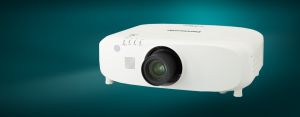

PT-EW540E
5,000 lm / WXGA / LCD
PT-EW540E
The Smart Choice for bright, flexible and Economical Projection
Benefits of the PT-EZ580 Series
1. High Picture Quality
Bright and quiet operation with up to 6,200 lm* at 29 dB** on Eco mode
High 5,000:1*** contrast performance with iris
WUXGA (1,920 x 1,200) resolution for brilliant Full HD images (PT-EZ580/L)
Daylight View Basic Function to correct images for clear projection in well-lit environments
Picture-in-Picture and Side-by-Side modes for simultaneous viewing of multiple sources
DICOM Simulation mode**** for medical presentations and training
Color Adjustment Function corrects variations between individual units set up for simultaneous projection
2. Low TCO and easy maintenance
Extended lamp replacement cycle of up to 4,500 hours*****
Reusable Eco Filter (17,000 hours),****** sealed optics, and dust-resistant cabinet
Easy access to lamp and filter for maintenance
Economical 335 W lamp draws just 0.3 W on Standby in Eco mode
Intelligent Lamp Control automatically controls brightness to reduce overall power consumption
Eco Management button on remote gives quick access to a range of Eco functions
3. System flexibility
DIGITAL LINK (based on HDBaseT™ technology) and DisplayPort single-cable connections*******
Powered lens shift, zoom, and focus via remote control.
Wide range of optional lenses are interchangeable with PT-EZ770 Series
Horizontal/vertical and corner keystone correction
Emulation function compatible with existing control systems when replacing legacy Panasonic and Sanyo projectors
Compatible with PJLink™, AMX, Extron, and Crestron Connected™ control systems
Mechanical lens shutter******** prevents distracting light leakage when on Standby
Direct Power Off function enables safe projector shutdown via breaker switch
Anti-theft features include a customizable startup logo, password protection, and security bar
1 Brightness ratings for models in the PT-EZ580 series are as follows: PT-EX610/L (6,200 lm), PT-EW640/L (5,800 lm), PT-EZ580/L (5,400 lm), PT-EX510L (5,300 lm), and PT-EW540/L (5,000 lm).
2 35 dB with lamp power set to Normal.
3 The PT-EW540/L and PT-EX510/L have a contrast ratio of 2,000:1.
4 This product is not a medical instrument. Do not use it for actual medical diagnosis.
5 With lamp power set to Eco. Up to 4,000 hours with lamp power set to Normal.
6 Filter can be reused up to two times. The usage environment affects the duration of the filter.
7 Except for the PT-EW540/L and PT-EX510/L.
8 The PT-EW540/L and PT-EX510/L replace the mechanical lens shutter with an AV mute function.
