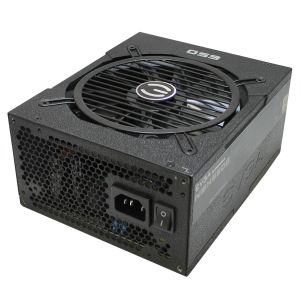

EVGA SuperNOVA 650 G1 Power Supply
P/N: 120-G1-0650-XR
Overview
Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)
The EVGA SuperNOVA 650 Power Supply is here with Gold Rated Efficiency. Designed with enthusiast needs in mind the SuperNOVA series are the best choice to power next generation enthusiast computers. Combining 650W of continuous power with exceptional performance, stunning efficiency, and cutting-edge design and features, the SuperNOVA series power supplies are what you need to take your system to the next level.
NOTE: For power supplies purchased in Europe, a European style power cable will be provided.
Features
80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
Fully Modular to reduce clutter and improve airflow
Details
Cable Length
| ATX Cable |
1x 600mm (m) |
| EPS Cable |
1x 600mm (m), 1x 750mm(m) |
| PCIE Cable |
2x 600mm(m), 2x 750mm(m) |
| SATA Cable |
1x 450mm, 550mm, 650mm (m), 2x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable |
1x 550mm, 650mm, 750mm (m), 1x 550mm, 650mm, 750mm +850mm (Floppy) |
| Floppy Adapter |
NA |
| AC Power |
1x 1800mm (m) |
| Modular Cable Type |
Full |
Connector Quantity
| 24 Pin ATX |
1x |
| EPS (CPU) |
2x 8pin (4+4) |
| PCIE |
4x 8pin (6+2) |
| SATA |
9x |
| Four-Pin Peripheral |
6x |
| Floppy |
1x |
Power Specs
| AC Input |
100 - 240 VAC, 10-5A, 50 - 60 Hz |
| Rail |
+3.3V |
+5V |
+12V1 / +12V2 / +12V3 / +12V4 |
+5Vsb |
-12V |
| Max output |
25A |
25A |
20A / 20A / 20A / 20A |
3A |
0.8A |
| 53A |
| 150W |
636W |
15W |
9.6W |
| Total |
650W @ +50C |
Additional Details
| Operating Temperature |
0 to 50 C |
| Japanese Capacitors |
Main PCB |
| ECO Mode |
No |
| MTBF |
100,000 Hours |
| Net Weight |
8 lbs |
| Size |
85mm (H) x 150mm (W) x 180mm (L) |
| Approvals |
TUV, cUL, UL, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
|
| Fan Size / Bearing |
135mm Double Ball Bearing |
