All stock codes associated to this product
ESAT10

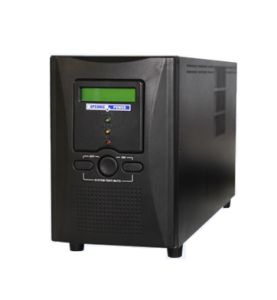

Upsonic Series 2 - 1000VA Line Interactive UPS with True SineWave Output & AVR
Description
ENERGY SAVING - ESAT SERIES II (ALTO)
Energy Saving Technology 1000VA
- Pure sine wave
- Output on Battery
- Intelligent Charging controlled
- 98% Efficiency in ECO Mode
- Range 1.0KVA - 7.5KVA
- Intelligent interactive LCD control panel
- Multiple interfaces options: RS232/RS485/MODBUS/USB/SNMP
- Compact design
- Standard and long backup time
- Cold start
- Starts on battery, no mains power required
- Protection against overload, overheating, surges, spikes, short circuit, over charging
- Ability to Integrate with Genset
- Easy battery replacement
Due to rising electricity costs, Energy Saving has become one of today's most important issues. It is a trend to operate ECO - Economical mode on big capacity on-line double conversion UPS. This seems to virtually turn UPS back to Stand by (0ff-line) era.
Our new ES pure sine wave line-interactive UPS are based on Energy Saving technology. In addition to providing high quality Sine Wave power and low Harmonic Distortion to support both Linear and Non-linear loads the ES series has a built in wide range AVR (automatic voltage regulator) on Bypass circuit which stabilises power and makes the ES series operate even more effectively and safely than an On-line double conversion UPS operated under ECO mode.
ES pure sine wave line-interactive UPSvsOn-line double conversion UPS operated under ECO mode
- Wider input range: More than 10% wider input main power voltage range than an on-line UPS.
- High overall efficiency: Consumes much less power than an on-line double conversion UPS during bypass mode operation.
- Better stability: Concise designed compact unit gives better stability.
- Economically smaller: Smaller footprint. Less expense for users.
Specifications
| Line Interactive Sine wave output |
Tower UPS |
| Model |
Energy Saver Series (ES xxx) |
ESAT-1000 |
ESAT-1500 |
ESAT-2000 |
| Capacity Input |
VA/Watt |
1000/625 |
1500/938 |
2000/1250 |
| Nominal Voltage |
230 VAC |
| Wave Form |
Pure Sine Wave |
| Voltage Range |
170 VAC ~ 300 VAC |
| Frequency |
45Hz - 70Hz auto sensing |
| Output - AVR Settings |
Boost Transfer |
208VAC 2% |
| Boost Return |
218VAC 2% |
| Buck Transfer |
252VAC 2% |
| Buck Return |
242VAC 2% |
| Low Voltage Transfer to Battery |
190VAC 2% |
| Low Voltage Return |
200VAC 2% |
| High Voltage Transfer to Battery |
286VAC 2% |
| High Voltage Return |
276VAC 2% |
| Efficiency |
>80% |
| Overload Protection |
Line Mode |
>110% then buzzer alarm and amber LED continuously blinking |
| Battery Mode |
110% ~ 150% for 30 seconds: >150% for 200ms, then UPS Shuts Down |
| Short Circuit Protection |
Line Mode |
Circuit Breaker |
| Battery Mode |
Electronic Circuit |
| Cold Start |
DC Start |
Yes |
| Transfer Time |
Typical |
<4ms |
| Battery Voltages |
|
24 VDC |
36 VDC |
36 VDC |
| Battery Amp |
7.2 Ah |
7.2 Ah |
9 Ah |
| LCD Display |
|
UPS status; I/P & O/P Voltage frequency; Load Level; |
| Battery voltage & Level internal temperature Normal Green |
| Audible alarm |
Battery Mode |
Beeping every 4 seconds |
| |
Low Battery |
Beeping every 1 second |
| |
UPS Fault |
Continuous Beep |
| |
Overload |
Beeping 2 x every second |
| Communications Interface |
|
RS232; SNMP; USB; Dry Contact & AS 400 Options. |
| Dimensions |
W x H x D in mm) |
145/210/380 |
145/210/445 |
145/210/445 |
| Net Weight |
Kg |
16.5 |
17.5 |
22.5 |
| Environment |
Operating Environment |
0 - 40 Deg Relative Humidity 0 - 95% Non Condensing |
| Noise Level |
Less than 55dBA (@1.0 Meter) |
| Outlets / Connections |
|
3 IEC |
3 IEC |
6 IEC |
