Legendary audio quality that just got better

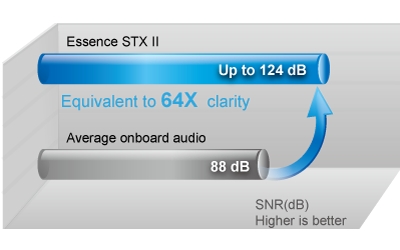

Industry-leading 124dB SNR
Essence STX II delivers industry-leading 124dB SNR audio clarity, a much-envied quality inherited from the revolutionary and widely-acclaimed Essence STX sound card — and up to 64 times (64X) better than typical onboard audio hardware. Headphone output reaches a fantastic 120dB SNR.
Ultra-low jitter

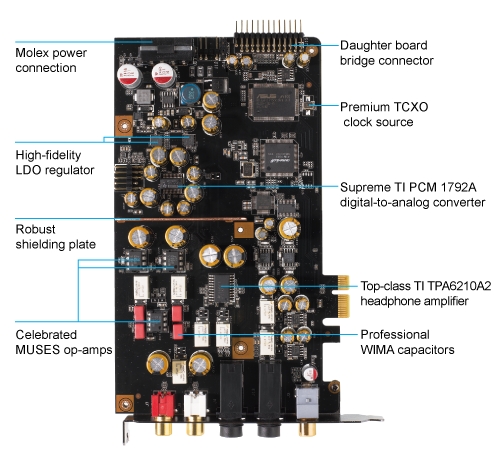

A high-precision clock is crucial to audiophiles. Integrated circuits are susceptible to heat and temperature changes, which is why Essence STX II includes a premium temperature-compensated crystal oscillator (TCXO) clock source. It is an ultra-accurate timing technology that ensures ultra-low jitter.
Clean and consistent power supply
Essence STX II uses a dedicated four-pin Molex power connection rather than drawing power from the expansion slot like other cards, and that means a cleaner supply of electricity. Optimized power delivery is further assured with high-fidelity low-dropout (LDO) regulators unprecedented in the audio-card industry. As well, audiophile-appreciated WIMA capacitors deliver balanced sound.
Celebrated MUSES op-amps
The profound musicality that Essence listeners expect is encapsulated by celebrated MUSES 8920 and MUSES 8820 op-amps, which deliver true-to-life tonality and spacious sound imaging.
True 7.1-channel surround sound thats easy to fit and great to customize

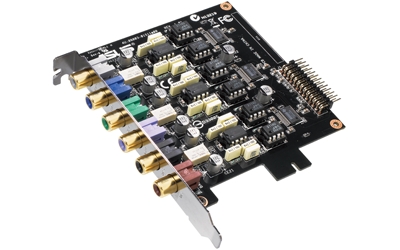

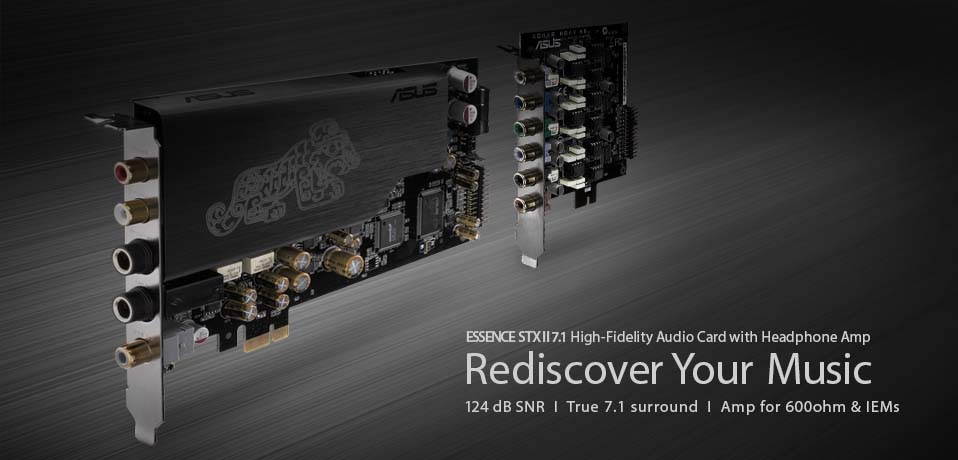

Exclusive to Essence STX II 7.1 is a multichannel daughterboard that delivers true 7.1-channel surround with high-fidelity 120dB SNR outputs. This easy-to-fit daughterboard slides into a slot adjacent to Essence STX II 7.1, so installation couldnt be more convenient.
Each channel is fully customizable with nine swappable op-amp sockets giving audiophiles complete freedom to create the perfect surround-sound experience for their ears and listening environment.

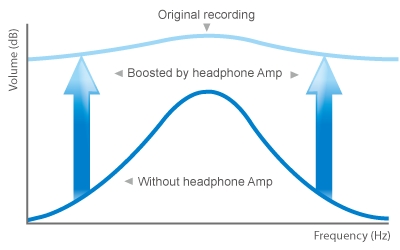

Impeccable headphone amplification
Top-notch headphone amplifier supports
The built-in headphone amplifier supports up to 600ohm impedance so audiophiles can plug in the finest high-impedance headphones to enjoy the pure quality delivered by Essence STX II.

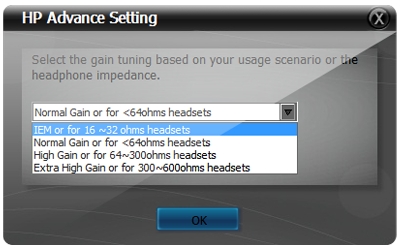

Exquisite headphone gain control
ASUS engineers have furnished Essence STX II with an additional gain control designed especially for high-sensitivity IEM headphones, allowing musicians and audio purists to use earpieces that channel audio output straight to the ear canal isolating ambient noise for listening that requires undisturbed concentration.
Easily adjust the sound for your ears

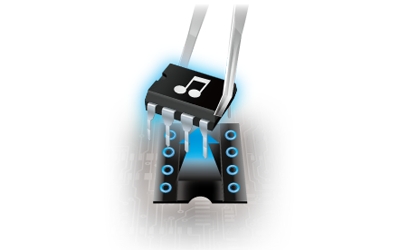

Three swappable op-amp sockets
Essence STX II benefits from swappable op-amp sockets that allow users to create different timbres and tonal combinations.

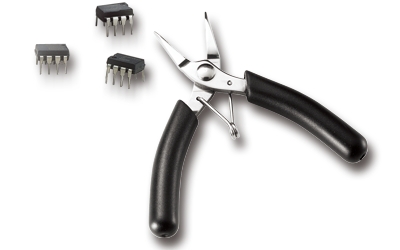

Additional op-amp swap kit
Essence STX II even comes with a swap kit that includes three additional op-amps two Texas Instruments LME49720s and one MUSES 8820 and a clamp tool that makes it easy to remove the op-amp microchips.
Advanced surround sound with instant encoding
Essence STX II benefits from Dolby Home Theater technologies that turn your PC into a true home-theater system boosting all your entertainment audio.
Dolby Digital Live
Reproduces Dolby Digital 5.1-channel surround sound, immersing players in exciting and realistic entertainment experiences with high-quality surround that puts you at the center of the action.
Dolby Virtual Speaker
Reshapes two-channel and 5.1-channel stereo content into virtual surround sound even with just two speakers, reproducing the dynamic, enveloping environment of a 5.1-speaker home theater system.
Dolby Pro Logic II
Transforms high-quality stereo sound into rich and realistic 5.1-channel surround that completely changes your audio perception.
Dolby Headphone
Simulates spectacular surround for personal audio by using powerful digital signal processing. It delivers up to 7.1-channel surround over any headphones for more vibrant and spacious listening.
Specifications
- Audio Interface
PCI Express
- Audio Performance
Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
124 dB
Output Signal-to-Noise Ratio (A-Weighted) (Headphone-out) :
120 dB
Input Signal-to-Noise Ratio (A-Weighted) :
118 dB
Output THD+N at 1kHz (Front-out) :
>0.0003 %(-110 dB)
Output THD+N at 1kHz (Headphone-out) :
>0.001 %(-100 dB)
Frequency Response (-3dB, 16bit/44.1KHz input) :
10 Hz to 90 KHz
Output/Input Full-Scale Voltage :
Line output (RCA, 3.5) : 2 Vrms (5.65 Vp-p)
Headphone output : 7 Vrms ( Vp-p)
- Chipset
Audio Processor :ASUS AV100 High-Definition Sound Processor (Max. 192KHz/24bit)
- Digital-to-analog Converter(DAC)
TI Bur-Brown PCM1792A
- Sample Rate and Resolution
Analog Playback Sample Rate and Resolution :
44.1K/48K/96K/192KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution :
44.1K/48K/96K/192KHz @ 16bit/24bit
S/PDIF Digital Output :
44.1K/48K/96K/192KHz @ 16bit/24bit
ASIO Driver Support :
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
- Connectivity
Analog Output
1 x 6.3 mm jack (1/4") Headphone out
8 x RCA (Un-Balanced)
Analog Input
1 x 6.3 mm jack (1/4") (Line-in/ Mic-in combo)
Digital
1 x S/PDIF out (1 x Coaxial)
1 x Front-Panel Header
- Special Features
Dolby Technologies : Dolby Digital Live/Dolby Headphone /Dolby Virtual Speaker /Dolby Pro-Logic II
- Operating System
Windows 8.1 , 32bit/64bit
Windows 8 , 32bit/64bit
Windows 7 , 32bit/64bit
Windows XP , 32bit/64bit
- Accessories
Op-amp swap kit x 1
3.5mm-to-RCA cable x 1
6.3mm-to-3.5mm adapter x 0
S/PDIF adapter x 1
Driver CD x 0
Quick start guide x 0
- Dimensions
168 x 107 mm ( L x W )
- Note
Op-amp swap kit content:
1 x Needle-nose pliers
2 x LME49720
1 x MUSES8820
